Wall Mounted X-Ray RAY98 (W)

 DC X-ray Unit

  • Ergonomic design
  • More comfortable to operate
  • Fast and accurate positioning

Low Radiation and High Resolution Imaging

combination of products and technology provides high-quality imaging while reducing radiation, providing a safer experience for doctors and patients.

Core Advantages Of High Frequency Series

  • Novel design, perfectly match with your clinic.
  • Adopting the method of "voltage preset and feedback adjustment", with high control accuracy.
  • Adopting closed-loop control, anode voltage (kV) and anode current (mA) will not be affected by input voltage fluctuations and are relatively stable.

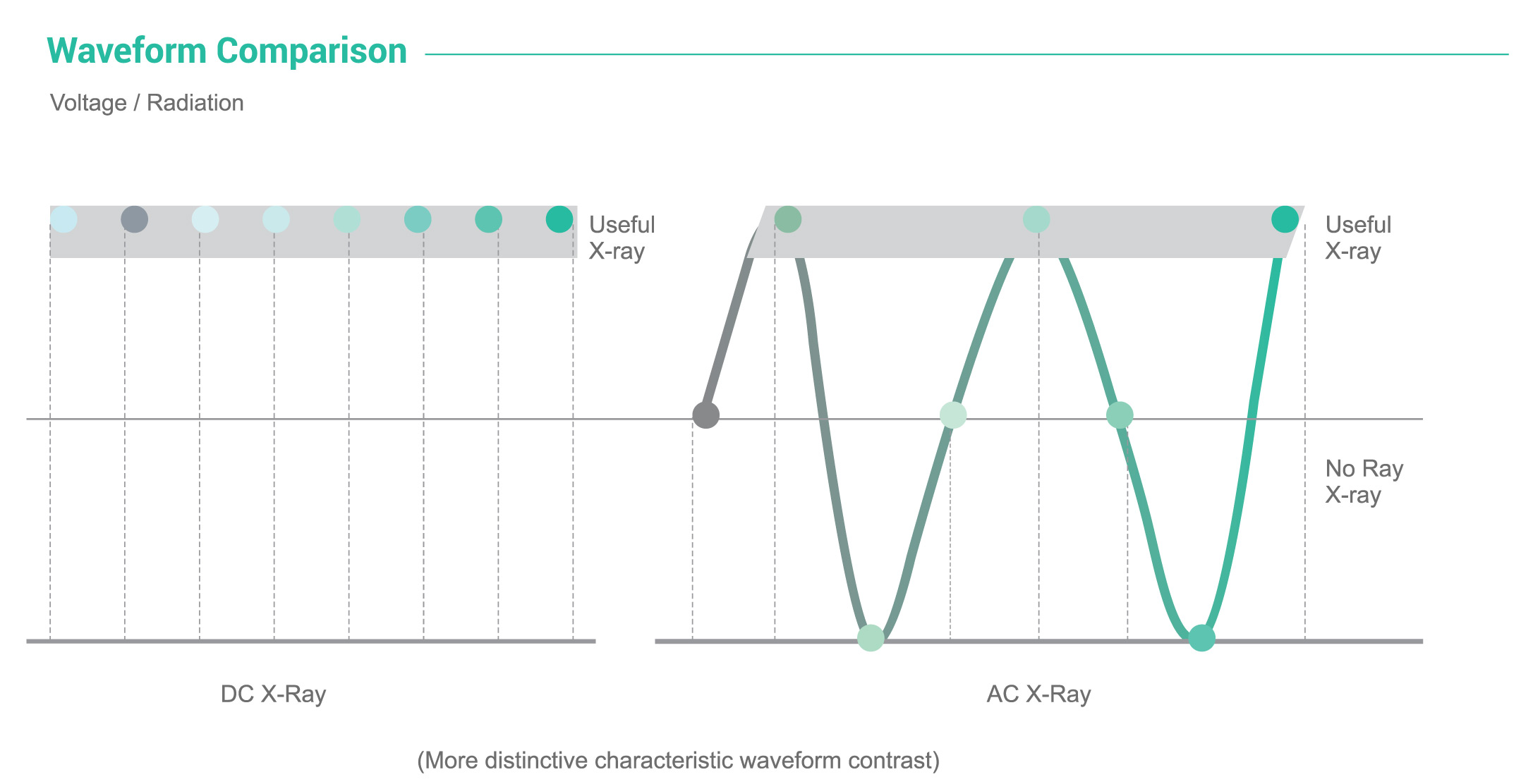

  • High-frequency dental X-ray machines can eliminate soft radiation, operators and patients will suffer less radiation dose.
  • The high frequency machine has stable output spectrum, with less scattered X-rays and clear images.

Quantity

Add to cart

Share :

 DC X-ray Unit

  • Ergonomic design
  • More comfortable to operate
  • Fast and accurate positioning

Low Radiation and High Resolution Imaging

combination of products and technology provides high-quality imaging while reducing radiation, providing a safer experience for doctors and patients.

Core Advantages Of High Frequency Series

  • Novel design, perfectly match with your clinic.
  • Adopting the method of "voltage preset and feedback adjustment", with high control accuracy.
  • Adopting closed-loop control, anode voltage (kV) and anode current (mA) will not be affected by input voltage fluctuations and are relatively stable.
  • High-frequency dental X-ray machines can eliminate soft radiation, operators and patients will suffer less radiation dose.
  • The high frequency machine has stable output spectrum, with less scattered X-rays and clear images.

Microprocessor Control
Easy operation, the exposure time can be set automatically or manually as required

Open Consumables
The industrial frequency series can use all types of dental films on the market

Special-designed

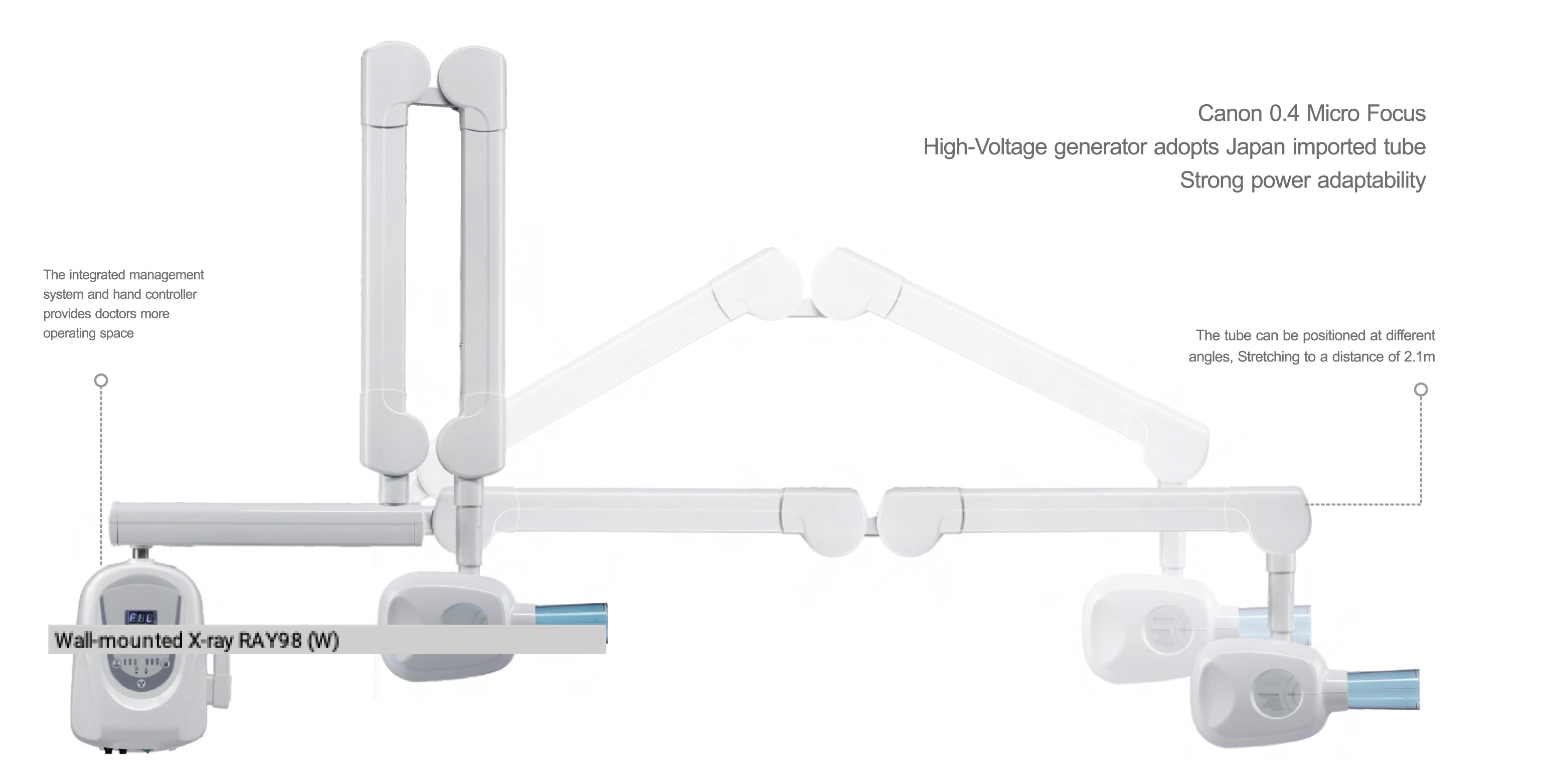

Telescopic Arm It is easy to take images without patient leaving the treatment table.

Technical Specification

Parameters Instruction
Power Voltage : AC 230V Bulb Tube : CANON D-045 Duty Cycle:1/30
Frequency:50/60Hz Ray Focal Spot:0.4mm Half Value Layer:65Kv
Maximum Power:1100VA Bulb Tube Voltage:65KV ± 10% Inherent Filtration: _?-2.1nnm Al
Electricity:5A Anode Current:7mA ± 20% Leakage Radiation:1meter 0.14mGy/h
Fuse:10A Anode Angle:12.5° Time Of Exposure:0.01-2.0s
