Ultra Craft DS

Ultra Craft DS, a desktop dental 3D printer, is designed to cover a wide range of chairs ide applications. The concise design language and user interface make it very straightforward to use. DS is compatible with Hey Gears Cloud and serves as the terminal for our full-chain digitalized solution from design service to post-processing. The one-stop solution boosts the patients' experience by providing immediate treatment while increasing the efficiency of the clinics at the same time.

Removable Restoration: Full Digital Denture, Try-in Denture,

Flipper Denture Fixed Restoration: Temporary Crowns & Bridges, Veneer, Inlay, Temporary Denture with

Implant BarImplant: Surgical Guide, Radiographic Guide, Temporary Denture, Individual Tray

Orthodontics and Others: Clear Aligner Model, Indirect Bonding Tray, Hawley Retainer, Bite Plate, Night Guard, Study Model

Quantity

Add to cart

Share :

Introduction

Ultra Craft DS, a desktop dental 3D printer, is designed to cover a wide range of chairside applications. The concise design language and user interface make it very straightforward to use. DS is compatible with Hey Gears Cloud and serves as the terminal for our full-chain digitalized solution from design service to post-processing. The one-stop solution boosts the patients' experience by providing immediate treatment while increasing the efficiency of the clinics at the same time.

Applications

  • Removable Restoration: Full Digital Denture, Try-in Denture,
  • Flipper Denture Fixed Restoration: Temporary Crowns & Bridges, Veneer, Inlay, Temporary Denture with
  • Implant BarImplant: Surgical Guide, Radiographic Guide, Temporary Denture, Individual Tray
  • Orthodontics and Others: Clear Aligner Model, Indirect Bonding Tray, Hawley Retainer, Bite Plate, Night Guard, Study Model

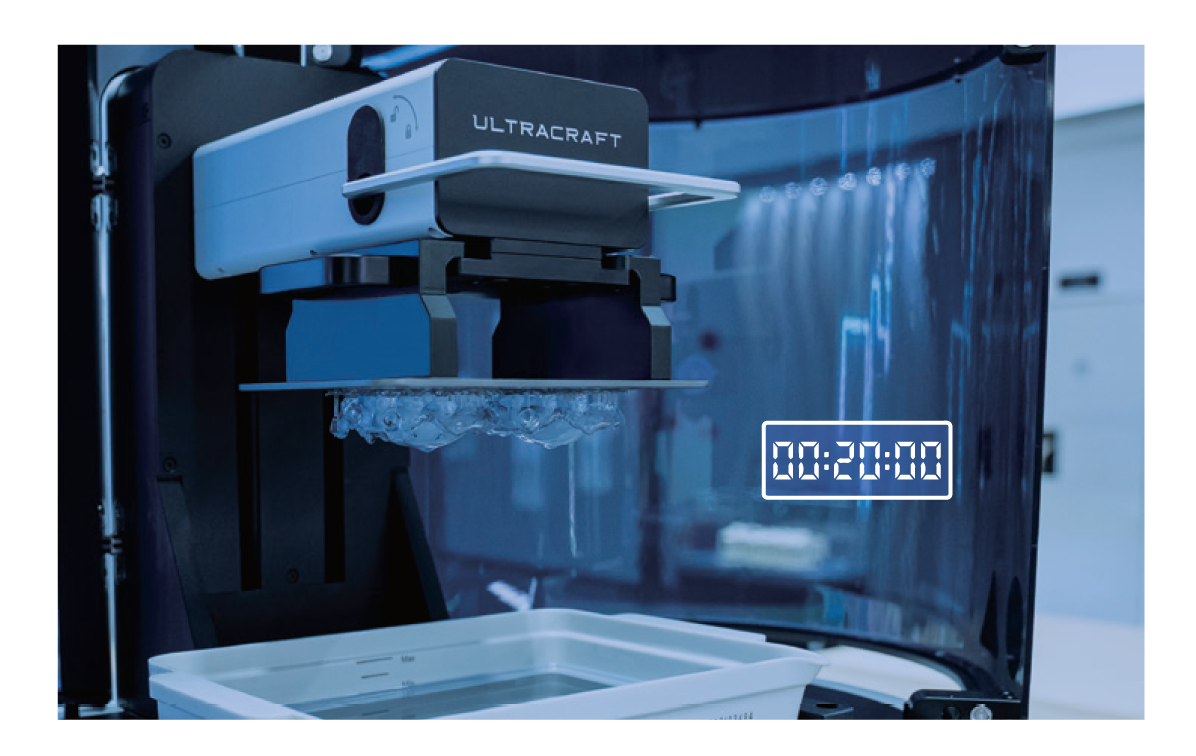

Fast - Immediate Chair side Production

20mins print-time for a full-arch surgical guide

  • Ultra Craft DS's 385nm LED light source can transmit deeper into the resin, accelerating the printing process under the same energy consumption.
  • Empowered by Hey Gears' patented Al separation technology , DS increases the printing speed by 40% compared with traditional DLP printers.

Precise-Every Detail Counts

Better fitting with a comfortable experience

  • DS is equipped with an industrial-grade light engine , which provides meticulous control of more than 2 million micro-mirrors. Each one of the micro-mirrors generates a pixel side-length of exactly 75um, 3/4 of a human hair.
  • Hey Gears' patented optical micro-adjustment technology can mitigate the effect brought by optical distortion, increasing print consistency and uniformity.

Stability - Consistent performance regardless of time used

Even after a long period of use, DS demonstrates stable print quality without compromise in print accuracy

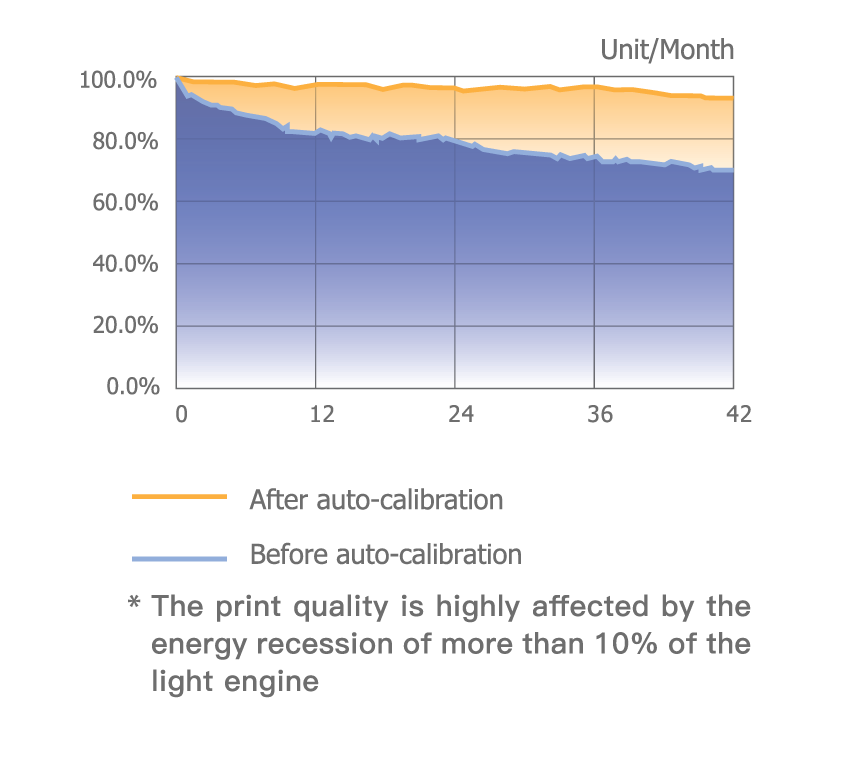

  • To ensure a high print quality after a long period of use, we implement our patented auto-calibration technology to make sum the optical power stays within 1% of fluctuation.
  • DS is equipped with our patented silicon resin tank, which can withstand higher pressure and has a longer service life (>90 days) for fewer maintenance needs. The silicon resin tank also greatly reduces the separation force and increases print stability at the same time.
  • Hey Gears makes sum that all platforms and resin tanks am calibrated before being shipped out of the factory. Such calibration enables quick swaps between all platforms and resin tanks, guarantee consistent print quality across all printers.

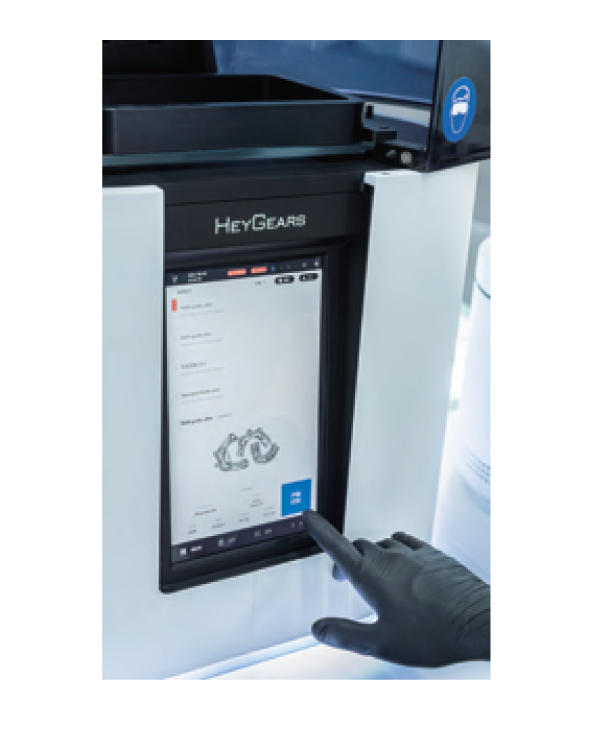

Easy to Use-Get Started One Touch Away

A good print is just one-click away

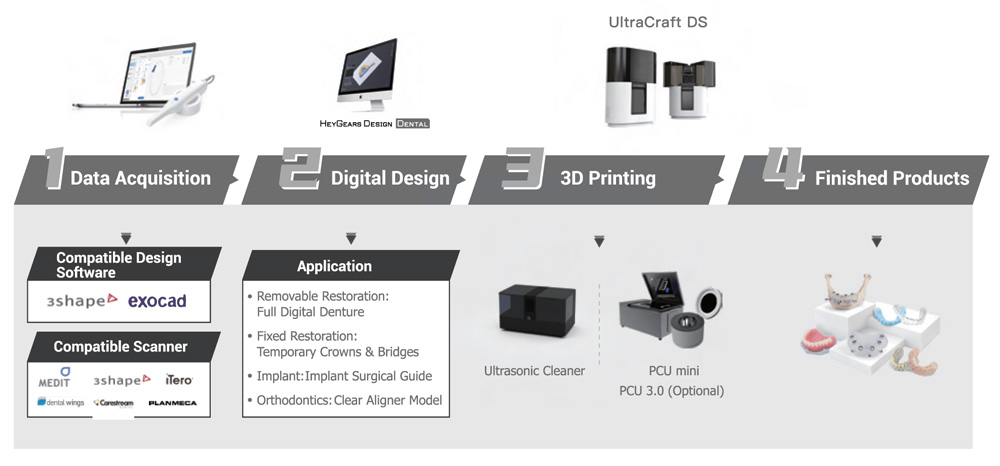

  • Our full-chain digitalized solution allows users to finish a quality print quickly with just a touch of a button.
  • Hey Gears Design service helps the chair side users to complete both the design and the data preparation, and the prepared data file is then sent directly to the DS. The users only have to confirm the file and hit "Start" for production.

Technical Specification

Build Size XY Resolution Z Resolution Wave Length Data Input Connectivity Storage Light Source Lifespan Machine Dimension Weight Power Software
144*81*110 mm 75 pm 25-150 pm 385 nm .ult, .ultm Ethernet + WiFi 120GB (SSD) > 3000h 553*353*797 mm 52 kg Power: 500W Voltage: 110-240V AC Frequency: 50/60Hz 385 nm

HeyGears Cloud

UltraCore

3D Technology Services

  • 24/7 online and of line technical support
  • Technical training
  • Quick response within 30mins
  • Software OTA
  • 1 year warranty
  • Continuous material update
