TCQ - IV Wired / Wireless Portable FPD

PRODUCT INTRODUCTION

Type TCQ-IV is a cassette-sized flat panel detector with high performance. Battery stands by for at least 10 hours. Unique wireless communication protocol ensures fast and reliable transmission of a full resolution image within 2 seconds, and no more than 5 seconds even in the worst environment. The detector output high quality images with high DQE and high resolution. Equipped with highly sensitive AED function, it is easily to synchronized with any type of generators.

  • CSI/GOS
  • 140μm
  • 2560x3072
  • 16bit
  • 65536 Grey Scales

Quantity

Add to cart

Share :

PRODUCT INTRODUCTION

Type TCQ-IV is a cassette-sized flat panel detector with high performance. Battery stands by for at least 10 hours. Unique wireless communication protocol ensures fast and reliable transmission of a full resolution image within 2 seconds, and no more than 5 seconds even in the worst environment. The detector output high quality images with high DQE and high resolution. Equipped with highly sensitive AED function, it is easily to synchronized with any type of generators.

  • CSI/GOS
  • 140μm
  • 2560x3072
  • 16bit
  • 65536 Grey Scales

Core Technologies

Portable

  • Ultra Slim, Ultra Light, Wireless
  • Anti-Water,Anti-Drop,Anti-Theft
  • Longest Battery Standby Time

Reliable

  • Work in The Toughest Environments
  • Meet Rigorous Medical Requirements
  • Own Super Reliable Communication Protocol

Durable

  • Design Rigorously
  • One-key Calibration
  • Service Remotely

Universally Adaptable

  • Powerful Fundamental Design
  • Deep Understanding of X-ray App
  • Flexible Configurations For All App

Highly Efficient

  • High Speed Wif1 Transmission
  • 1 OMillion Pixel Within One Second

AED

  • Fast Response
  • High quality Image
  • Patented Technologies
  • Automatic Exposure Synchronization

Technical Specification

DESCRIPTIONS SPECIFICATIONS
Detector Technology a-Si
Scintillator GOS CSI
Image Size 35x43cm(l 4xl 7in)
Pixel Matrix 2560x3072
Pixel Pitch 140μm
A/D Conversion 16bit
Minimum Detectable Dose 20nGy(GOS) l4nGy(CSI)
Maximum Linear Dose (RQA5) 1 50μGy(GOS) 11 OμGy(CSI)
Ghost(300μGy,60s) <0.25%
Spatial Resolution 3.6LP/mm
Image Acquistion Time 1 s(Wired)/2s(Wireless)
X-ray Voltage Range 40-l 50KV
Battery Standby Time lOH
Date Interface GigE/802.11 ac
Power Dissipation 20W
Adapter Input AC100-240??50-60Hz
Adapter Output DC 24V,60W

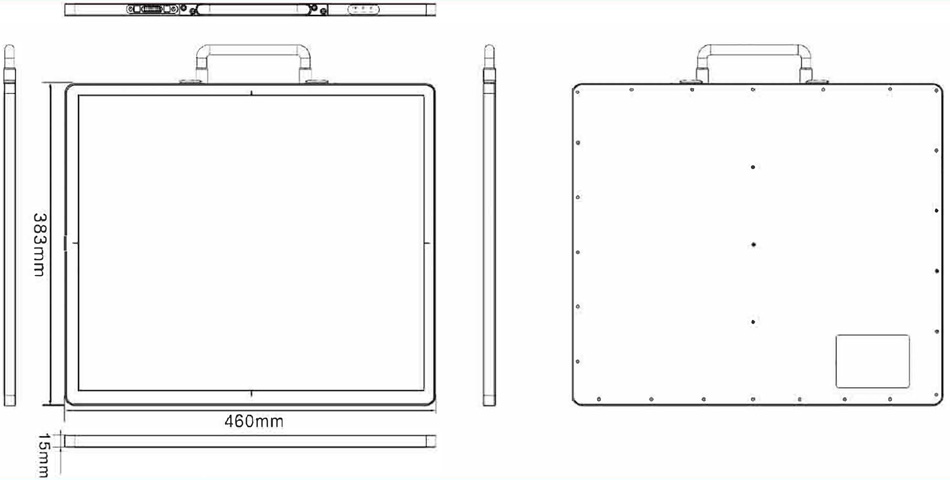

Dimensions 38x46xl .5cm
Weight 3.3kg(Wireless)/2.9kg(Wired)
Housing Material Carbon,Alloy
Water Tightness 1Px3
Operating Environment 5-35°C, 1 0-75% RH
