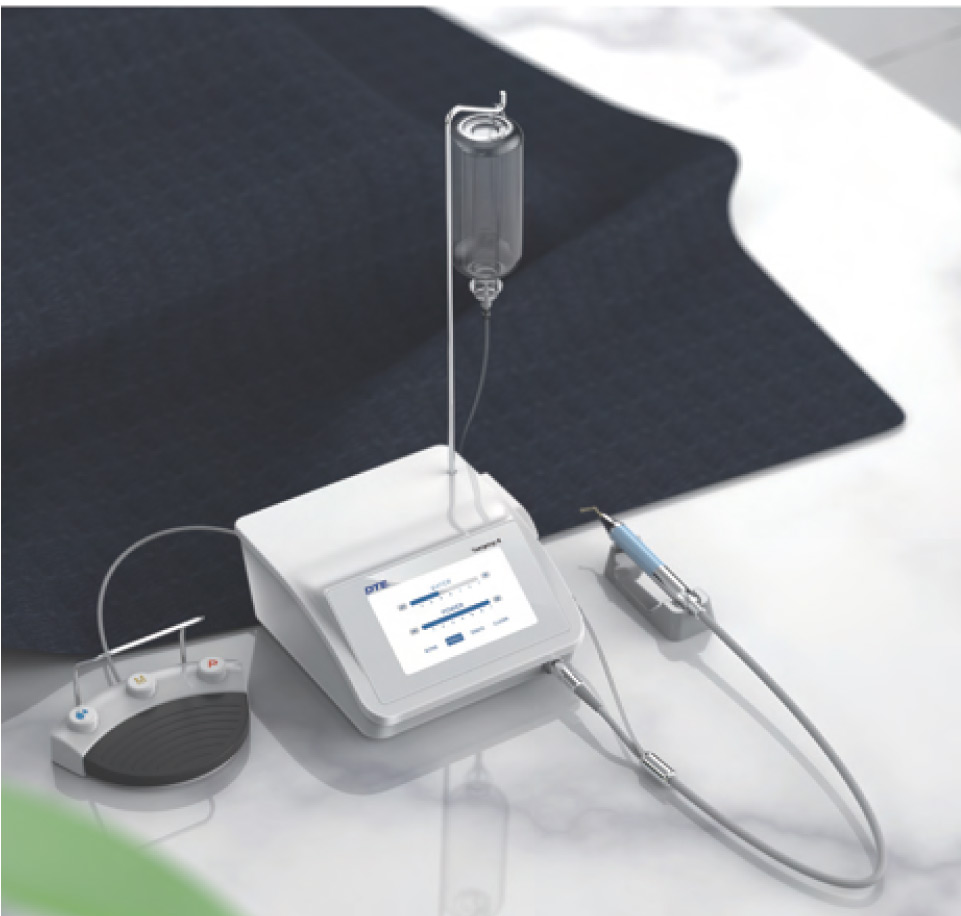

SURGICAL KIT

Clinical application

Woodpecker 3rd generation of Ultrasurgery

  • Minimally invasive tooth extraction,
  • Intralift,
  • Sinus Lift,
  • Alveoloplasty,
  • apical cyst extraction,
  • Crown Extension,
  • Crest splitting, etc.






Quantity

Add to cart

Share :

Clinical application

Woodpecker 3rd generation of Ultrasurgery

  • Minimally invasive tooth extraction,
  • Intralift,
  • Sinus Lift,
  • Alveoloplasty,
  • apical cyst extraction,
  • Crown Extension,
  • Crest splitting, etc.

Micron Cutting

The vibration amplitude of tip is between 20-100prn. The minimum surgical incision is 3.5mm long, 0.5mm wide, which will help with small operating area and fast postoperative recovery.

Selective Cutting With No Injury to Soft Tissue

For soft tissues (neural, blood vessels and mucous membranes, etc.), there is no cutting effect,which can protect the vascular nerve of the operation area to a large extent, greatly reducing the risk of injuring soft tissues(neural, vascular, mucosal, etc.).

Cold Cutting Mode

Ultrasonic technology produces very little heat while cutting. And iced water can quickly cool the tip and ensure the temperature below 38 °C. At the same time, the water spray flushes the wound during operation, bringing no bleeding and enabling clear vision of operation area, which makes it easy to operate.

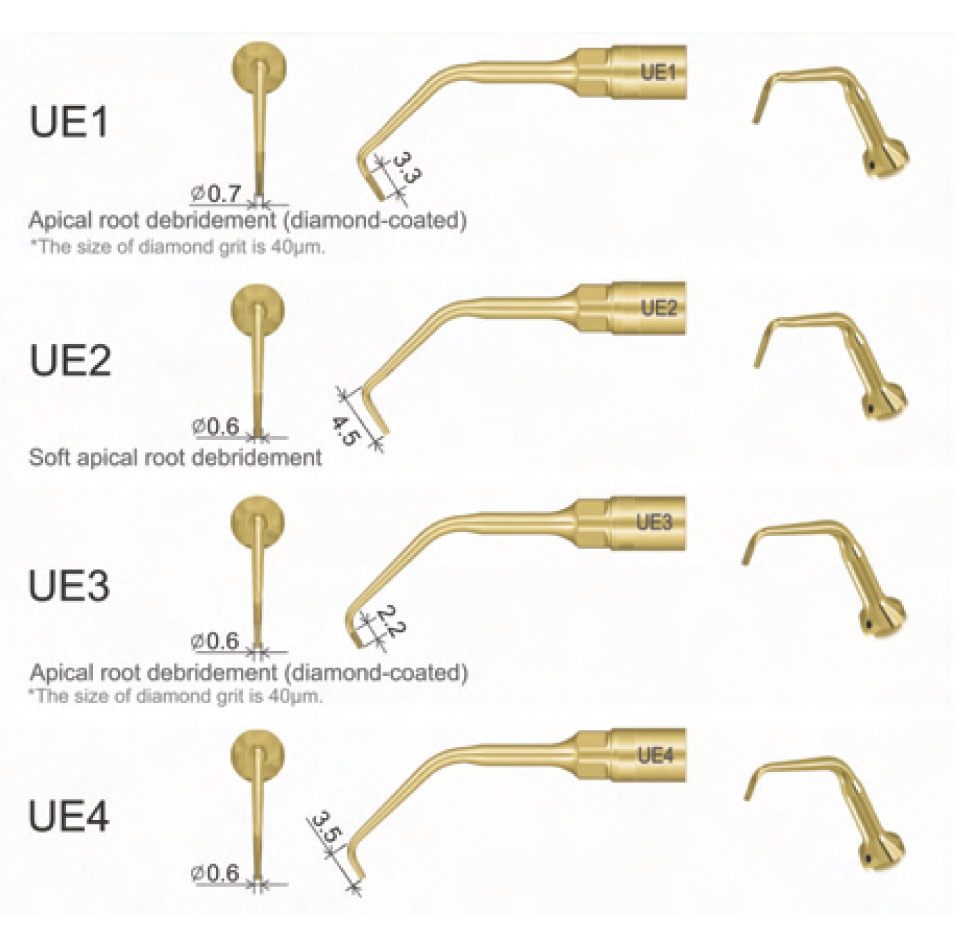

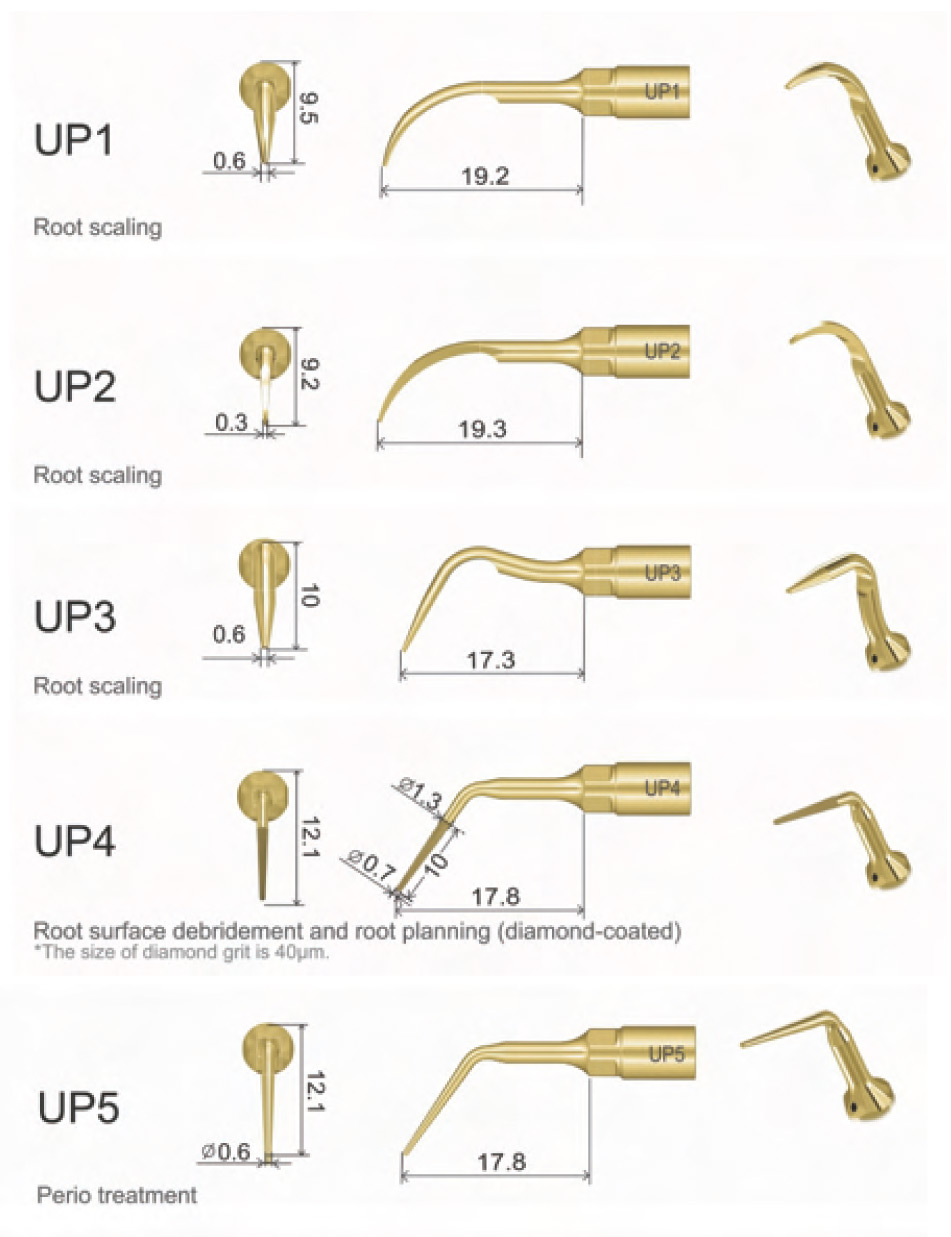

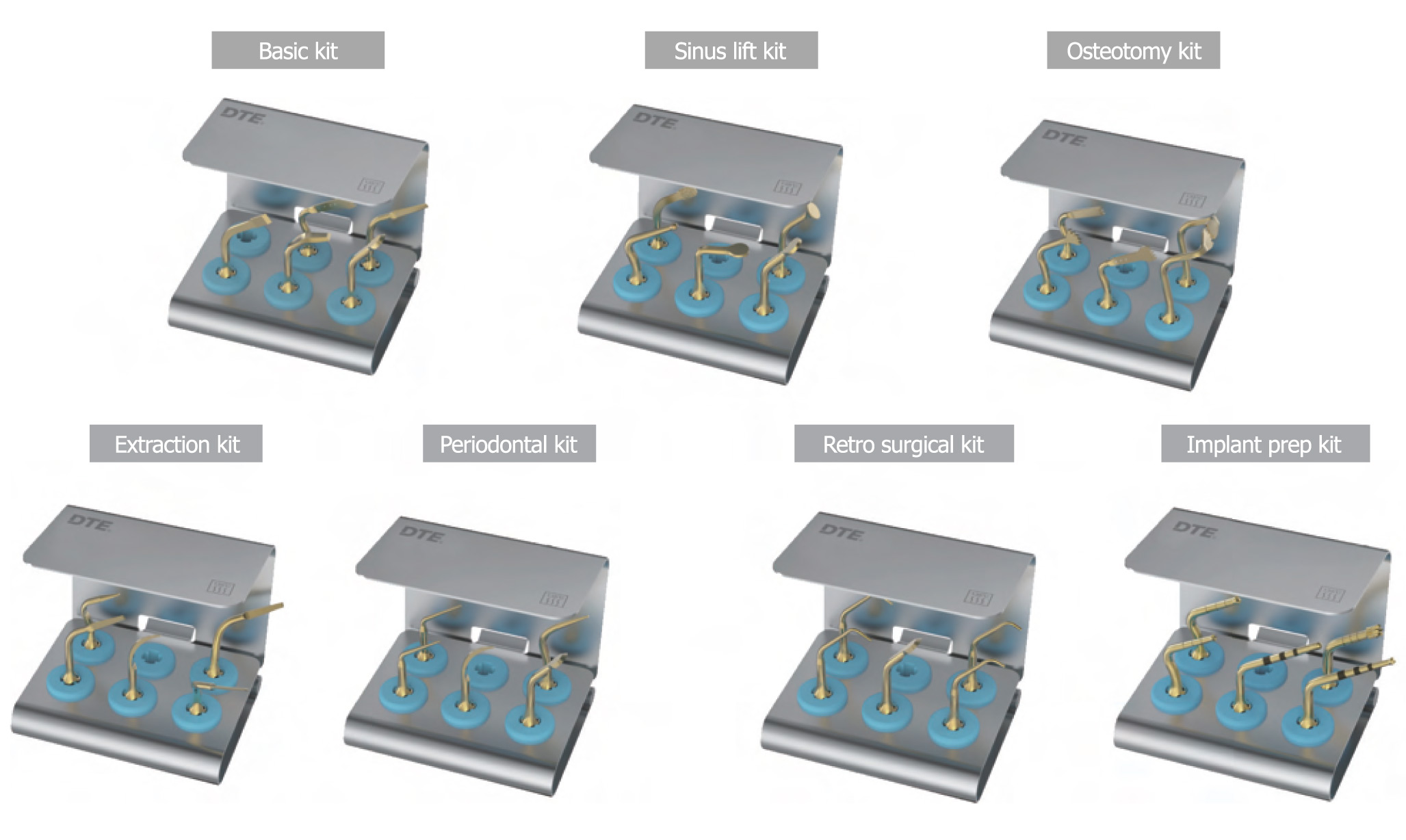

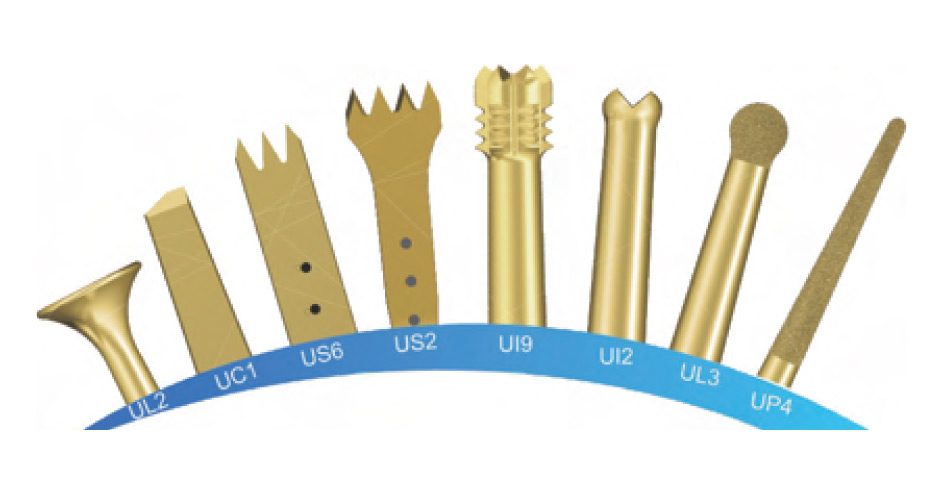

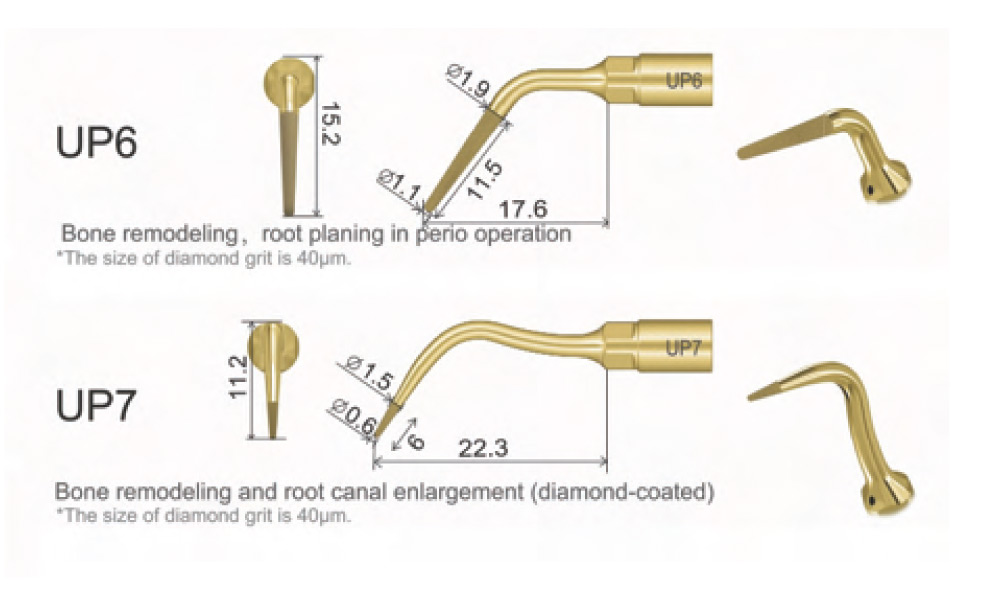

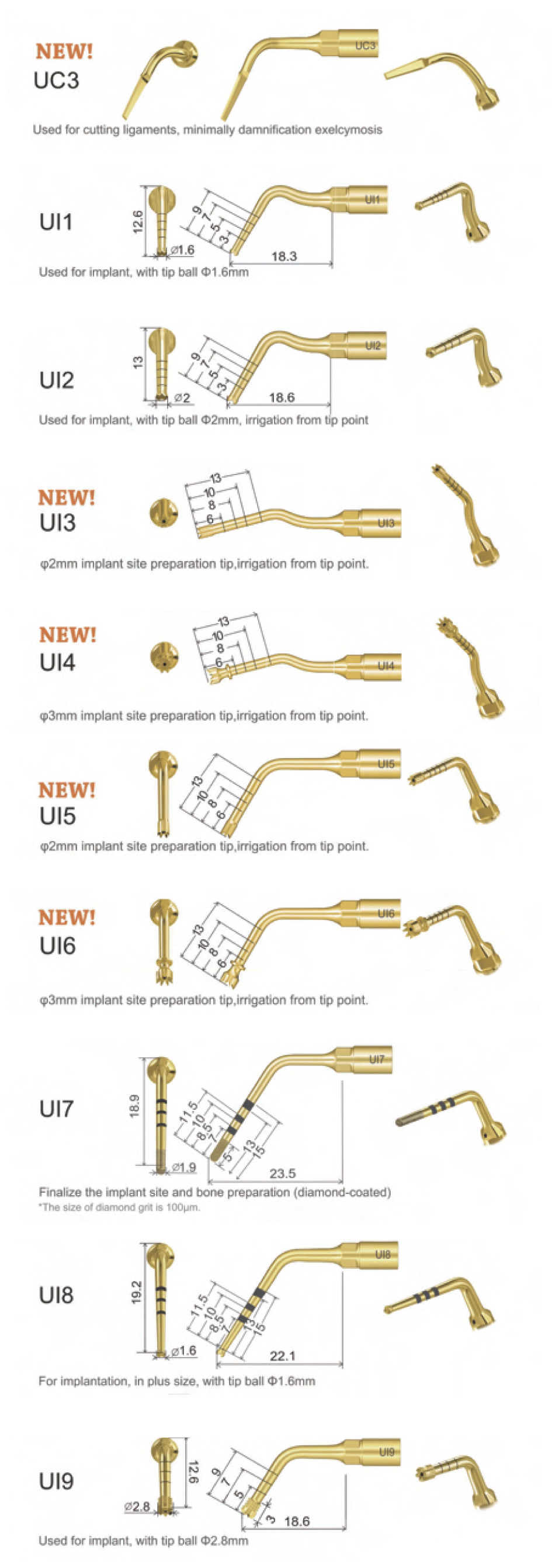

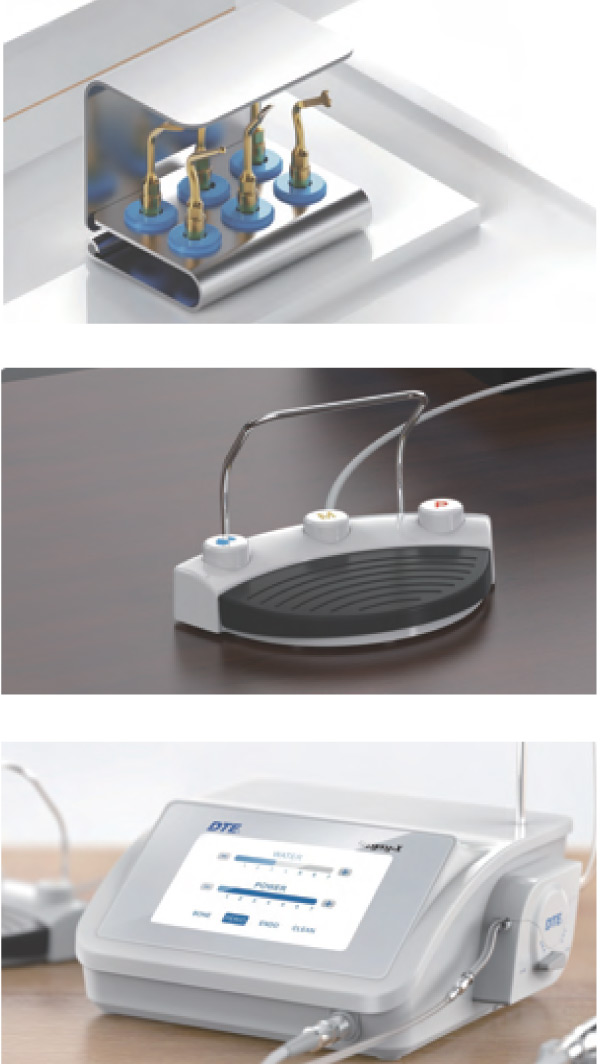

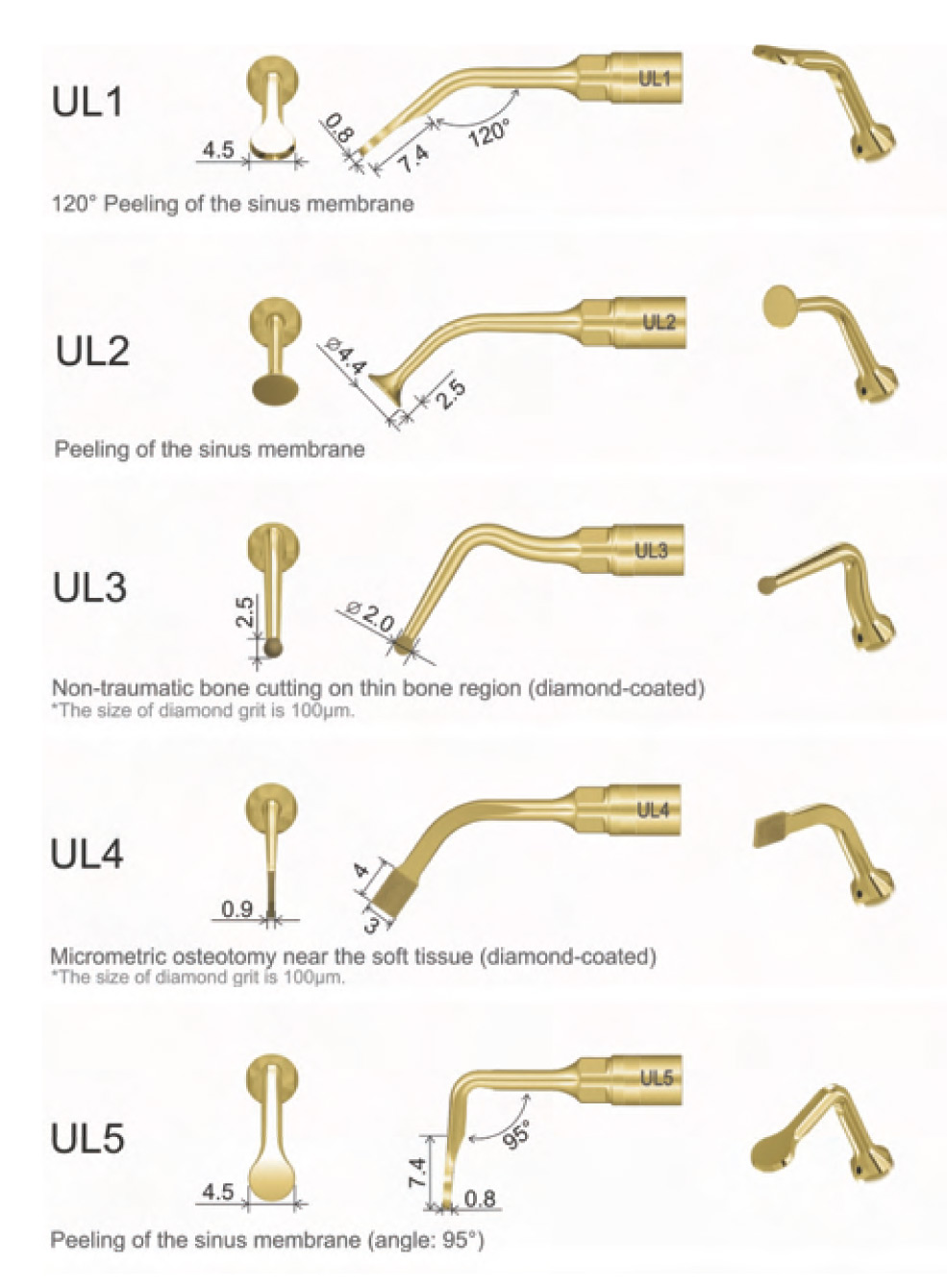

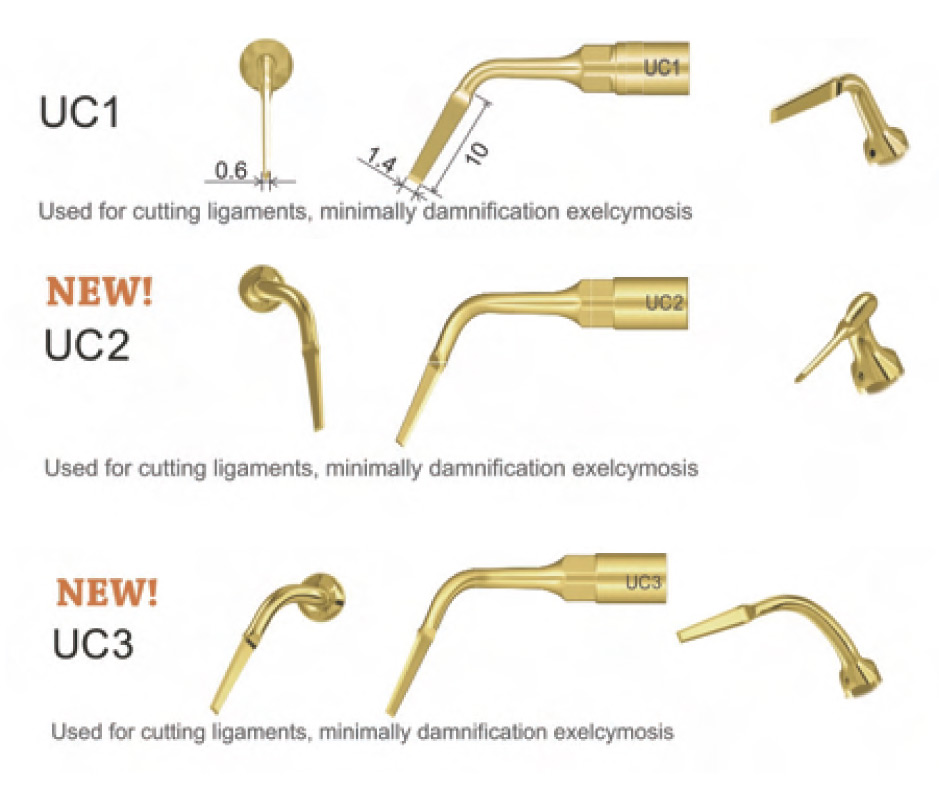

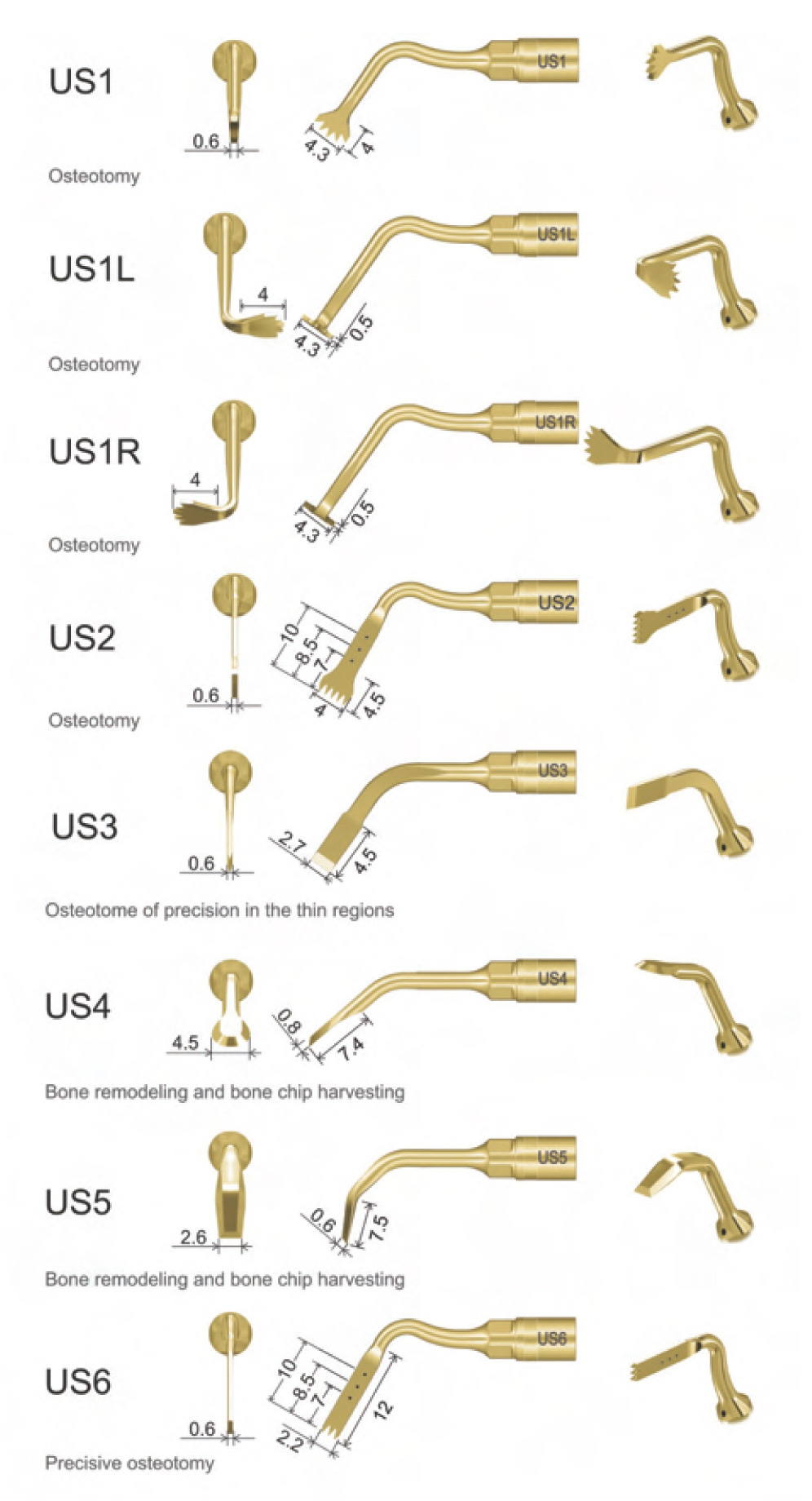

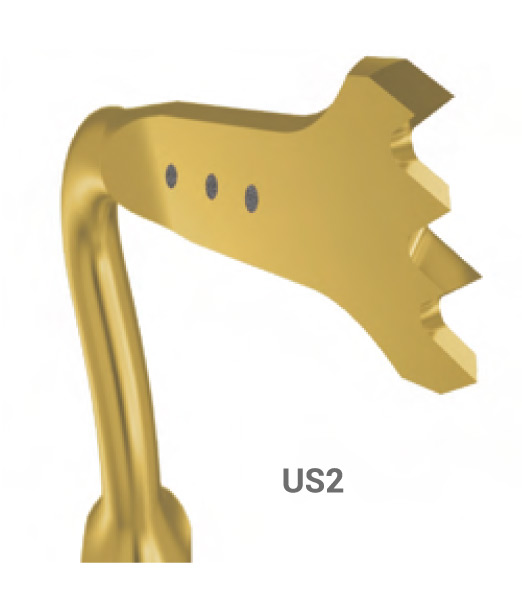

Tips Kit

Specially used for tooth extraction, crest splitting, and retropreparation. Adopt gold plating which is wear-resistant and practical with long time of endurance.

Multi-function Foot Pedal

Multi-function foot pedal, makes it easy to control water flow, working mode, and power, simplifying operation procedures and realizing efficient operation.

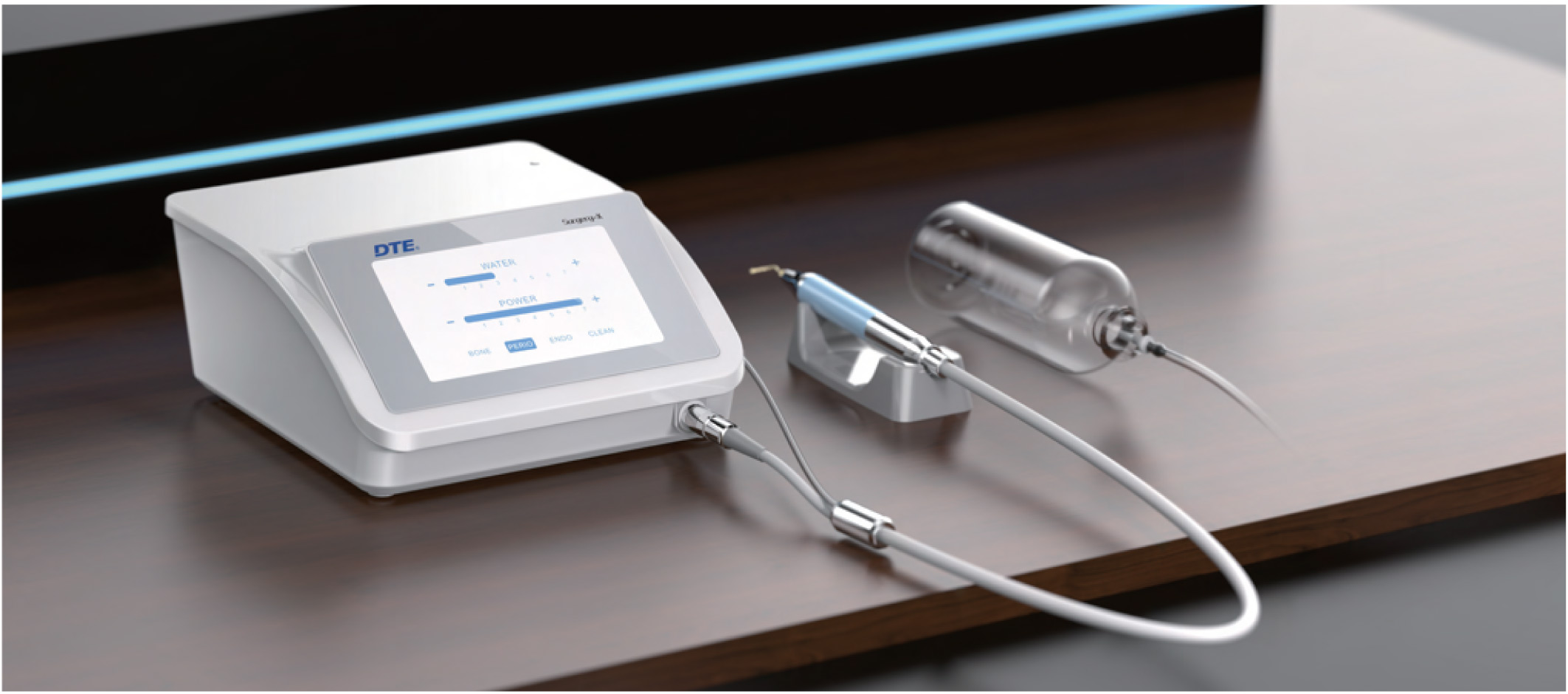

7-Inch Touching Screen

Abandoning the previous button operation settings, innovatively adopt 7-inch screen. While clearly displaying information, operate directly by tapping the screen.

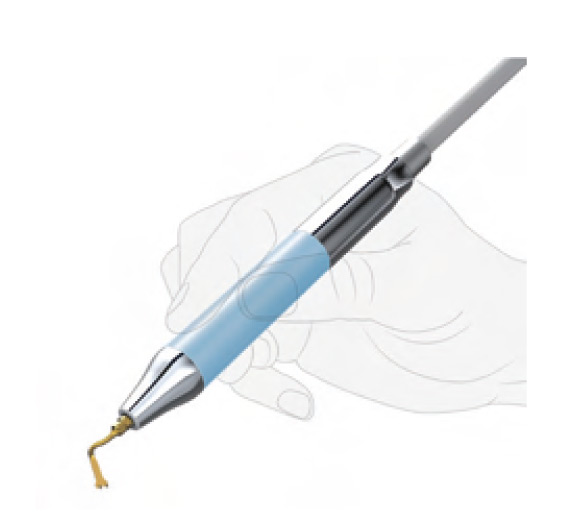

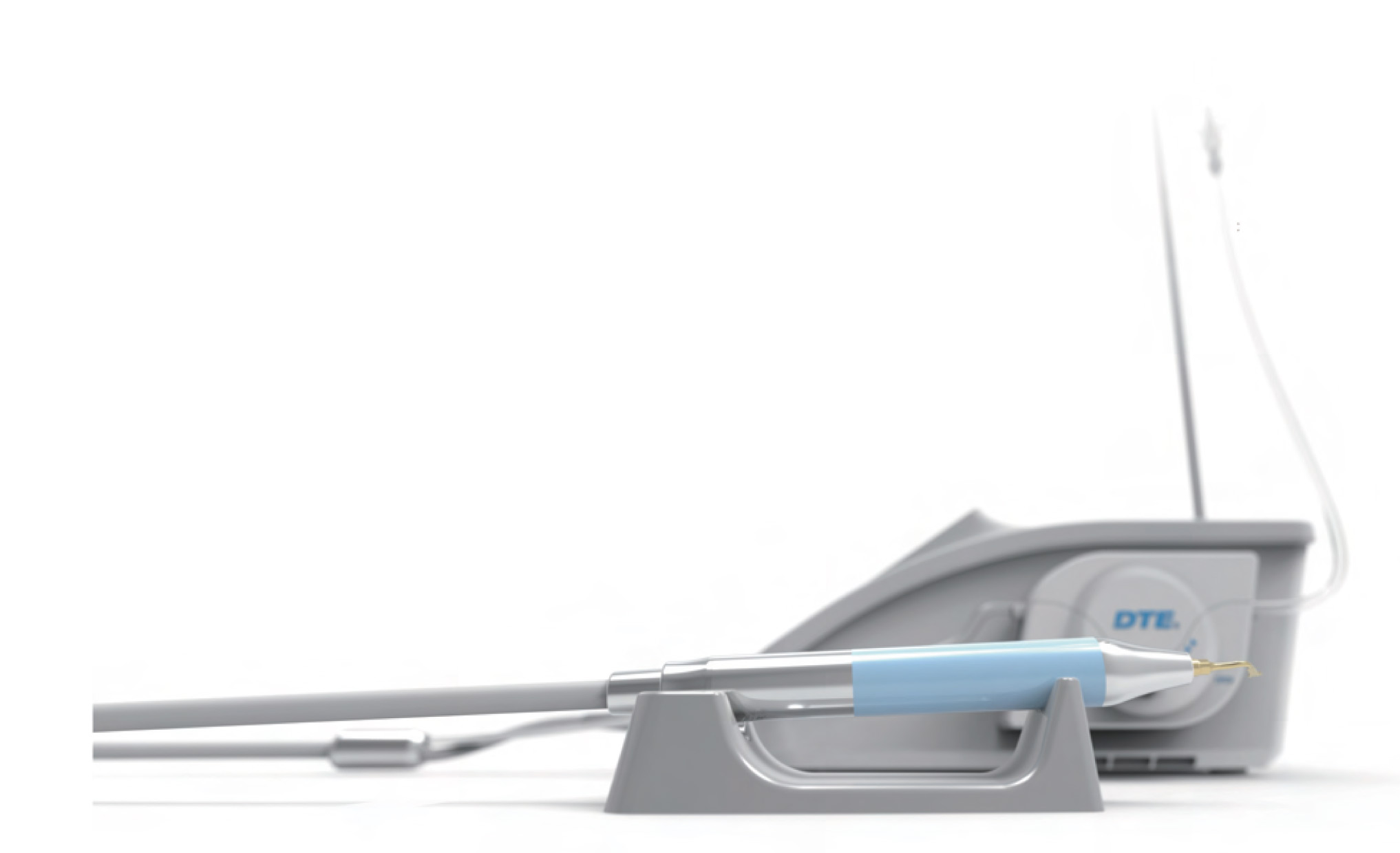

High-performance Handpiece

Optimized handpiece with stronger sealing technology High temperature cooking disinfection causes no loss of performance High-brightness LED brings clearer operating vision

For different treatment needs, four different working modes are set: cutting mode, periodontal mode, endodon-tic mode, and cleaning mode.

Cutting Mode

Under cutting mode, according to the bone density, adjust power and water volume. The power levels are divided into 7 classes:

  • (1) Level 5, 6, and 7: Class I bone (suitable for bone with high bone density / big cortical bone)
  • (2) Level 3 and 4: Class II bone (suitable for bone with high bone density / large cortical bone)
  • (3) Level 2 and 3: Class II bone (suitable for bone with uniform bone density / good cortical bone)
  • (4) Level 1 and 2: porotic bone (suitable for bone with low bone density / poor cortical bone) Different bones respectively match 7 power levels, avoiding over power output and improving safety and stability

Periodontal mode

Under teeth mode, the power and water volume are adjustable.

Endodontic mode

Under teeth mode, the power and water volume are adjustable.

Cleaning mode

Under cleaning mode, step on foot pedal for 3s to confirm cleaning, then the main unit can automatically complete pipe cleaning for 25s. After each treatment, please clean the waterway (include pump line and handpiece).

Cold Cutting Mode

Ultrasonic technology produces very little heat while cutting. And iced water can quickly cool the tip and ensure the temperature below 38 °C. At the same time, the water spray flushes the wound during operation, bringing no bleeding and enabling clear vision of operation area, which makes it easy to operate.

Tips Kit

Specially used for tooth extraction, crest splitting, and retropreparation. Adopt gold plating which is wear-resistant and practical with long time of endurance.

Multi-function Foot Pedal

Multi-function foot pedal, makes it easy to control water flow, working mode, and power, simplifying operation procedures and realizing efficient operation.

7-Inch Touching Screen

Abandoning the previous button operation settings, innovatively adopt 7-inch screen. While clearly displaying information, operate directly by tapping the screen.

High-performance Handpiece

Optimized handpiece with stronger sealing technology High temperature cooking disinfection causes no loss of performance High-brightness LED brings clearer operating vision

For different treatment needs, four different working modes are set: cutting mode, periodontal mode, endodon-tic mode, and cleaning mode.

Cutting Mode

Under cutting mode, according to the bone density, adjust power and water volume. The power levels are divided into 7 classes:

  • (1) Level 5, 6, and 7: Class I bone (suitable for bone with high bone density / big cortical bone)
  • (2) Level 3 and 4: Class II bone (suitable for bone with high bone density / large cortical bone)
  • (3) Level 2 and 3: Class II bone (suitable for bone with uniform bone density / good cortical bone)
  • (4) Level 1 and 2: porotic bone (suitable for bone with low bone density / poor cortical bone) Different bones respectively match 7 power levels, avoiding over power output and improving safety and stability;

Periodontal mode

Under teeth mode, the power and water volume are adjustable.

Endodontic mode

Under teeth mode, the power and water volume are adjustable.

Cleaning mode

Under cleaning mode, step on foot pedal for 3s to confirm cleaning, then the main unit can automatically complete pipe cleaning for 25s. After each treatment, please clean the waterway (include pump line and handpiece).

Technical Specification

Main Unit
Handpiece x 1
Torque wrench x 1
Tip x 7
Tube for peristaltic pump x 3
Foot pedall x l
Disinfection kit x 1
Handpiece x 1
Torque wrench x 7
Tips Tube for peristaltic pump x 3
Product Specifications
Dimension 276mm x 267mm x 110mm
Intermittent Running Device Intermittent running with lOs pause after 60s operation.
Water Flow 25-110m1/m
Mains Voltage 100-240V-50Hz/60Hz 150VA
Working Frequency 24-36KHZ
Weight 2.8KG
Warranty 5 years
