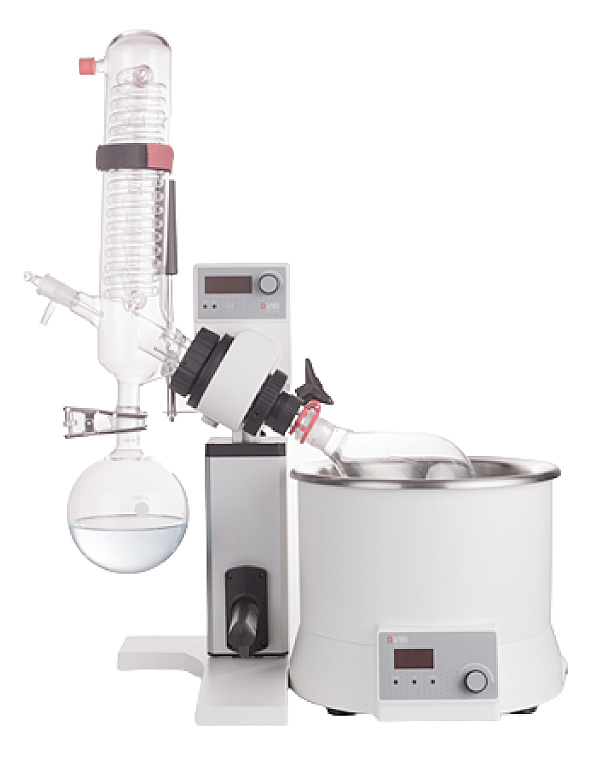

Rotary Evaporator

A rotary evaporator (rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples using heat and reduced pressure. An essential system for the fabrication of lipid bilayers and liposomes.

Recommened Accessories

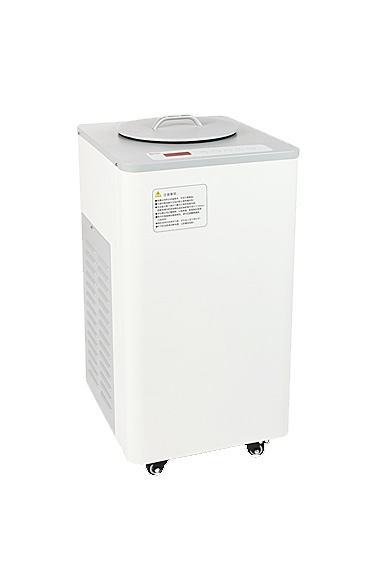

CCP5-15 - Low Temperature Circulator

Ensures double helix condensing tube (1200cm²) remains cool for the condensation of aqueous and organic solvents.

Quantity

Add to cart

Share :

A rotary evaporator (rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples using heat and reduced pressure. An essential system for the fabrication of lipid bilayers and liposomes.

Recommened Accessories

CCP5-15 - Low Temperature Circulator

Ensures double helix condensing tube (1200cm²) remains cool for the condensation of aqueous and organic solvents.

C410 Vacuum Pump

  • Motor Speed: 1700 rpm, 1450 rpm
  • Vacuum: 2-13 mbar
  • Outlet: 10mm
  • Pumping Speed: 25L/min
  • Two-stage pump
  • Built-in thermal protection device

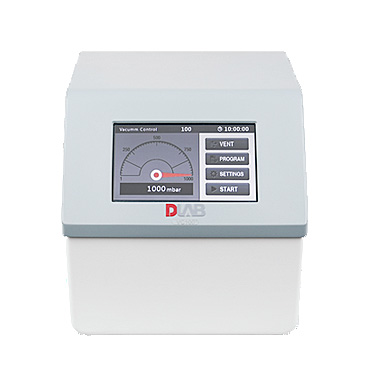

VC100 Vacuum Controller

  • Vacuum Setting Range: 1-1000m bar
  • Control Operation Mode: Single-point/Programmed
  • Setting Method: Touch screen setting
  • Materials in contact with vapor: PTFE, PP, silicone, and ceramics

Technical Specification

Cat no Life Mechanism Speed Range (RPM) Max Temperature (°C) Dimension (WxDxH) (mm)
RE 100-P Automatic 20 - 280 180 465x457x583
RE 100-S Manual 20 - 280 180 440x320x450

Seals and Other Accessories

Cat no Description
18202027 PTFE vacuum seal
18900362 Ultra resistant FFKM seal for applications with highly abrasive solutions
18900190 Evaporation flask clip (red) CS002440
18900188 Evaporation flask clip (green) CS002942
