Q5 MEDICAL WASHER

  • Powerful Cleaning
  • 93°C High-Temperature Disinfection
  • 360°C All-round Spray
  • Residual Temperature Dry System

Large Capacity I Thoroughly Cleaning

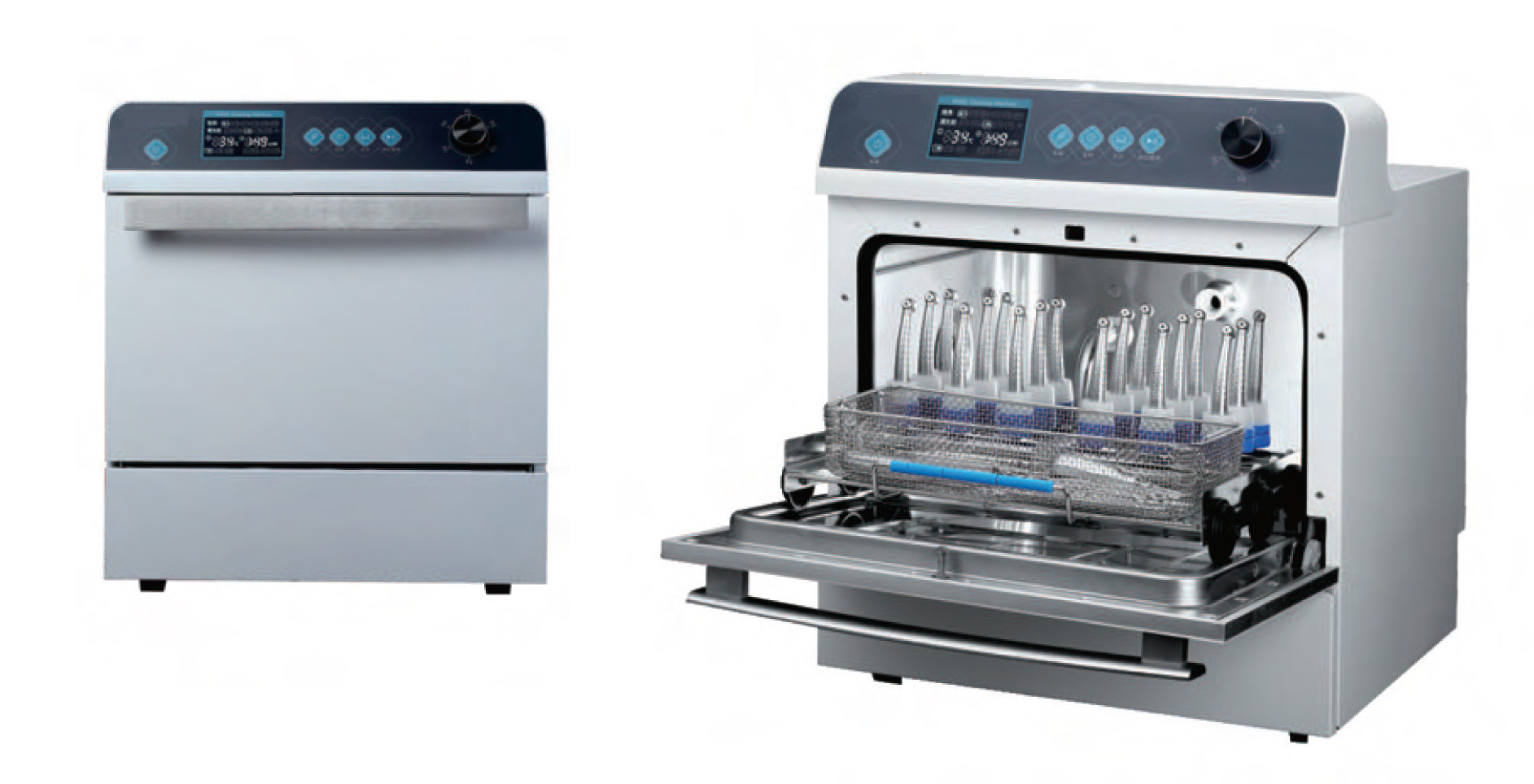

Large Capacity & Thoroughly Cleaning Q5 medical washer is mainly used for cleaning, disinfecting of medical equipment. It adopts a universal dental handpiece socket and can clean 18 or 32 handpieces at the same time. Controlled by a microcomputer and under the action of a high-pressure circulating water pump, it relies on the spray arm to spray dynamically in multiple directions. Coupled with the temperature of the water stream (the highest water temperature is 93°C, the duration is 180 seconds, and the AO value is greater than 3000), pressure, flushing time, number of times, etc., the dental instruments are flushed with a large water jet. At the same time, during the cleaning process, it will automatically add a low-foaming multi-enzyme cleaning detergent to quickly decompose and separate the contaminants on the outer surface and inner cavity of dental instruments, so as to achieve the effect of cleaning and disinfection.

Quantity

Add to cart

Share :

Auto-intelligent Disinfection Thoroughly Cleaning

Compliant with WS 506-2016 recommended handpiece disinfection method.

  • Powerful Cleaning
  • 93°C High-Temperature Disinfection
  • 360°C All-round Spray
  • Residual Temperature Dry System

Large Capacity I Thoroughly Cleaning

Large Capacity & Thoroughly Cleaning Q5 medical washer is mainly used for cleaning, disinfecting of medical equipment. It adopts a universal dental handpiece socket and can clean 18 or 32 handpieces at the same time. Controlled by a microcomputer and under the action of a high-pressure circulating water pump, it relies on the spray arm to spray dynamically in multiple directions. Coupled with the temperature of the water stream (the highest water temperature is 93°C, the duration is 180 seconds, and the AO value is greater than 3000), pressure, flushing time, number of times, etc., the dental instruments are flushed with a large water jet. At the same time, during the cleaning process, it will automatically add a low-foaming multi-enzyme cleaning detergent to quickly decompose and separate the contaminants on the outer surface and inner cavity of dental instruments, so as to achieve the effect of cleaning and disinfection.

  • Circulating hot-air drying (Patented Design).
  • After cleaning, it will automatically start drying with high-temperature air at 80 °C.
  • 4.3 inch digital display.
  • Multi-parameter display can be realized during operation.
  • Imported Large-Flow Circulating Water Pump.
  • Even distribution of water pressure, with 360° high pressure spray in multiple directions.
  • High Efficiency.
  • The whole chamber is made of food-grade 304 stainless steel plate.
  • Resistant to high temperature and corrosion.
  • Total three-layer filtration system from coarse filtration to fine filtration. The smallest filtration diameter is 50 microns, and the filtration efficiency is more than 99.97%, greatly avoiding the mechanical damage of impurity particles to the handpiece.

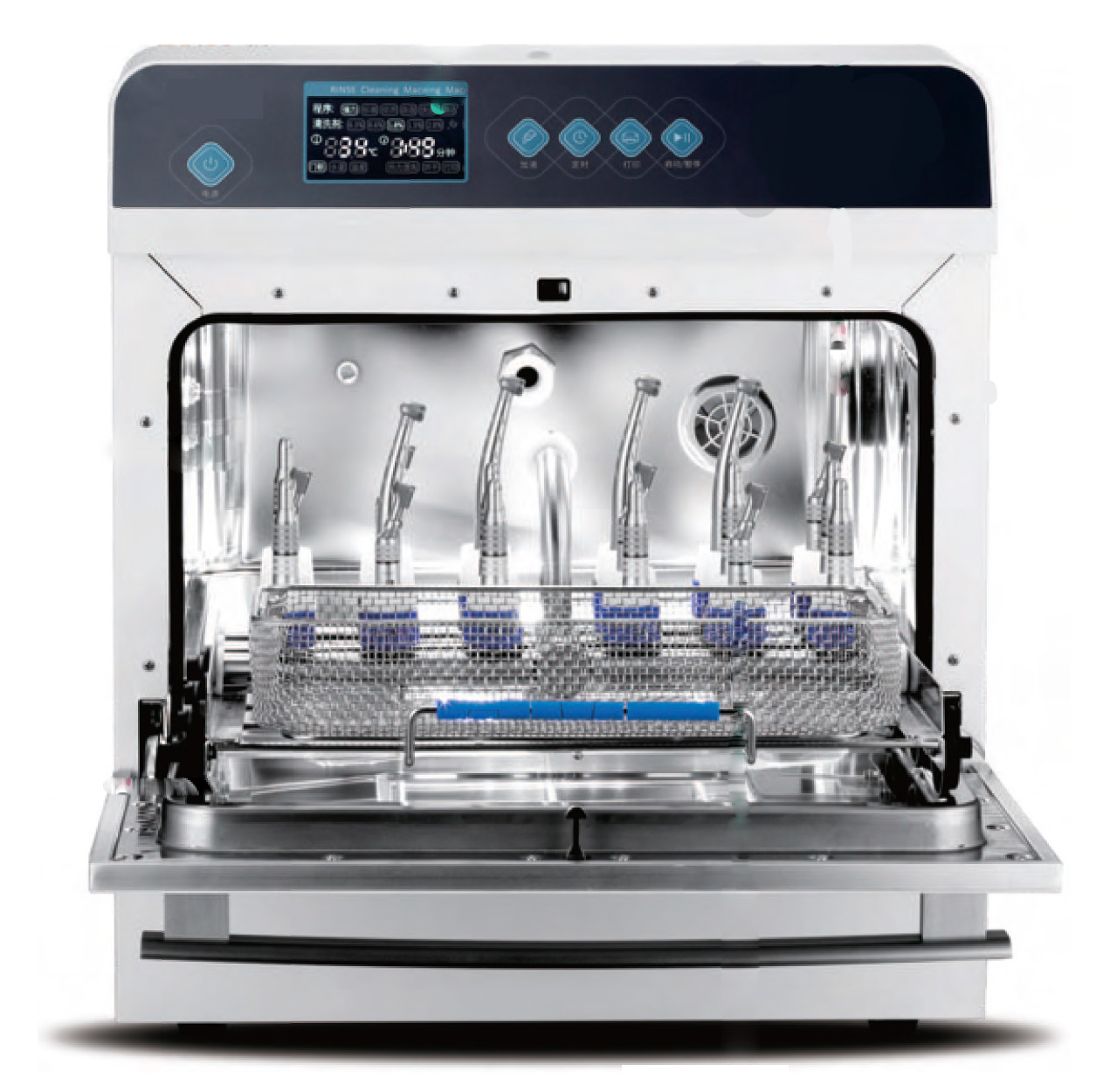

  • The unique universal handpieces socket design is available for most major branded handpieces with different interface diameters for simultaneous cleaning, like high-speed handpieces (turbo handpiece), low-speed handpieces (straight or curved ), and implant handpieces, avoiding the replacement of sockets during the cleaning process.

Technical Specification

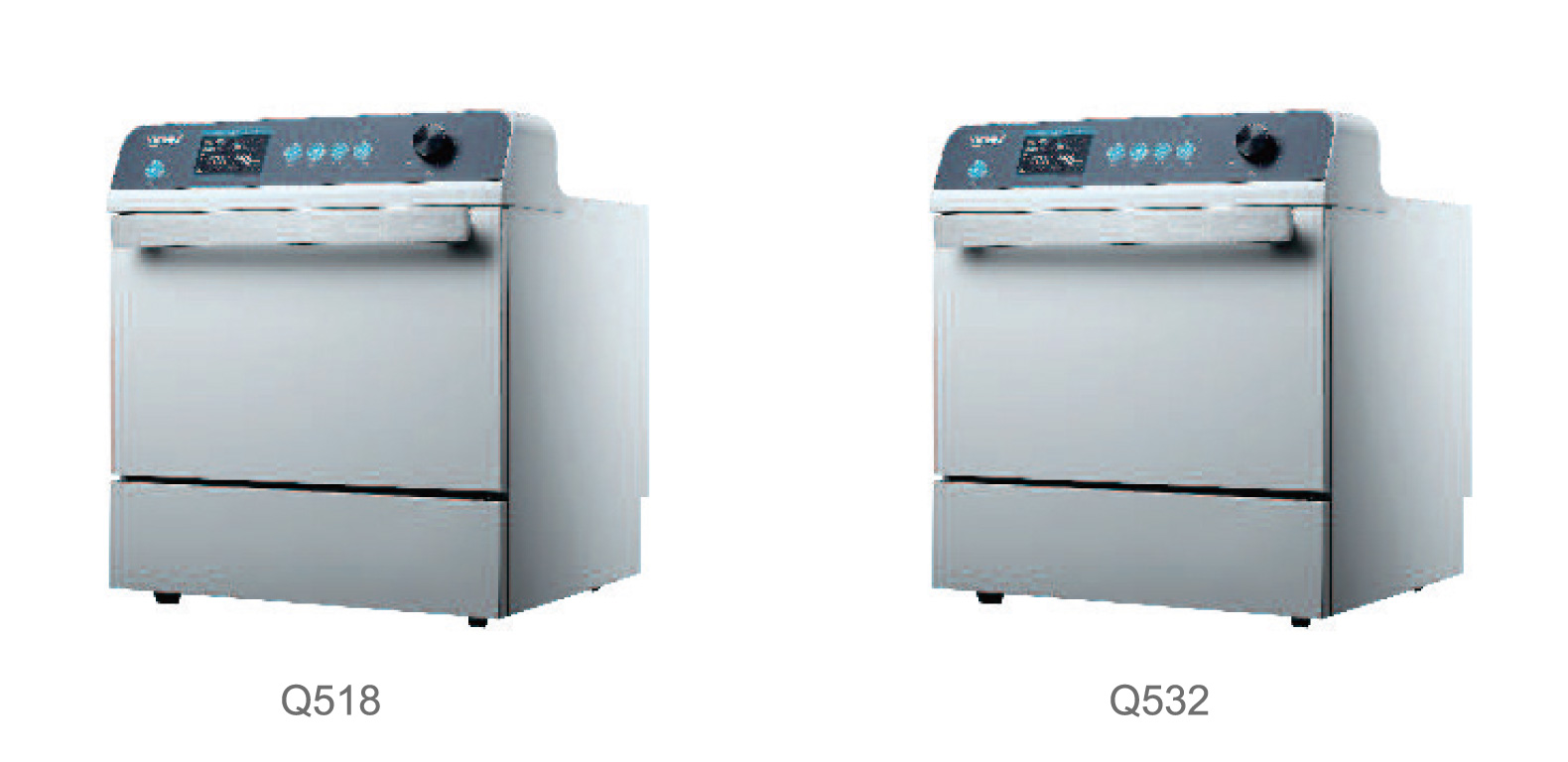

Specification I Model Q518 Q532
Outer Size 527x595x486mm 527x595x486mm
Cleaning Ability 18 handpiece cleaning basket + 1 instrument cleaning basket 32 handpiece cleaning basket
Inner Cavity Cleaning The whole cavity is made of food- grade 304 stainless steel plate The whole cavity is made of food-grade 304 stainless steel plate
Display 4.3-inch monochrome digital screen, realizing multi-parameter display 4.3-inch monochrome digital screen, realizing multi-parameter display

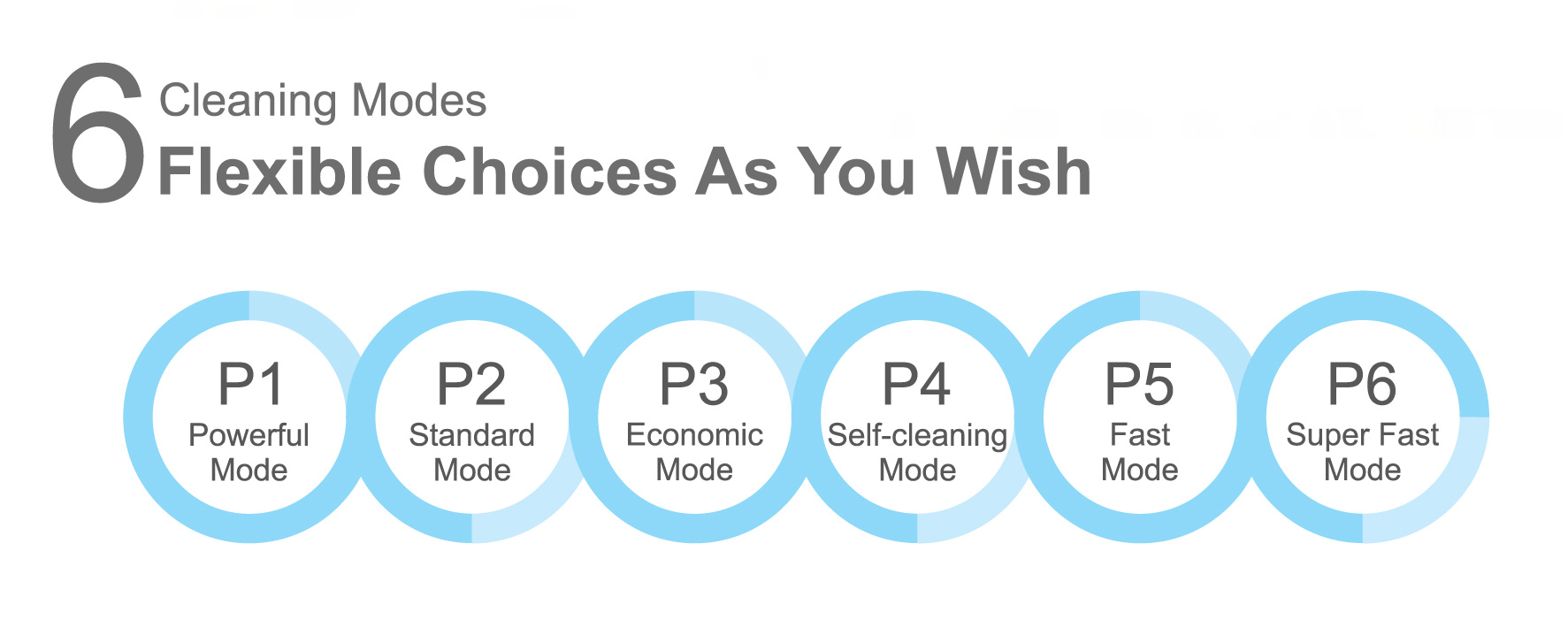

Cleaning Program 6 modes( Powerful, Standard, Economic, Self, Fast, Super-fast) 6 modes( Powerful, Standard, Economic, Self, Fast, Super-fast)
93°C Cleaning √ √
Large-flow Circulating Water Pump √ √
Triple Filtration System √ √
Universal Handpiece Socket (patented Design) √ √
Auto-add Multi-enzyme Cleaning Agent √ √
Hot-air Drying √ √
Real-time Print Cleaning Record Available, Optional Available, Optional
Electric Power ≤2500VA ≤2500VA
