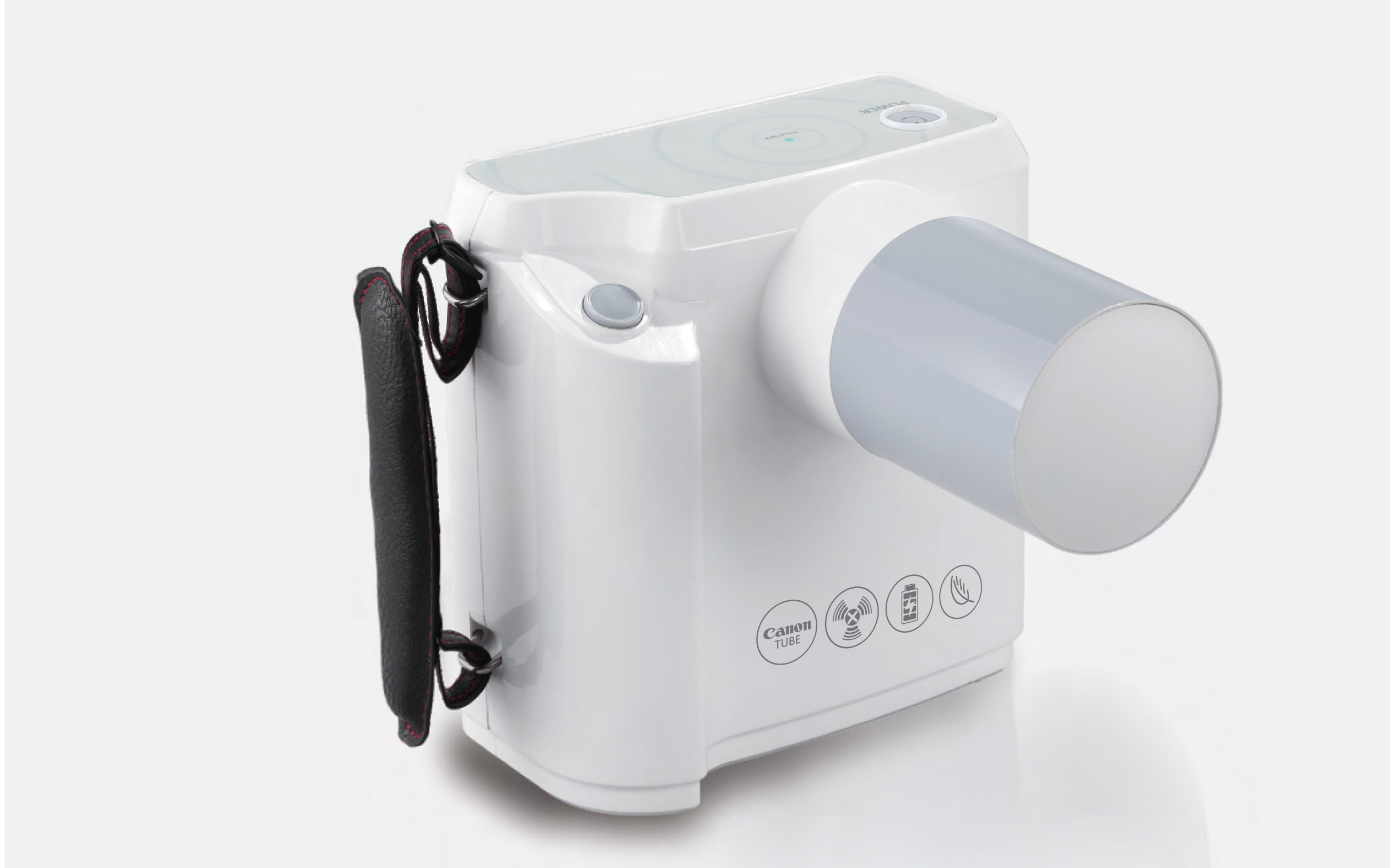

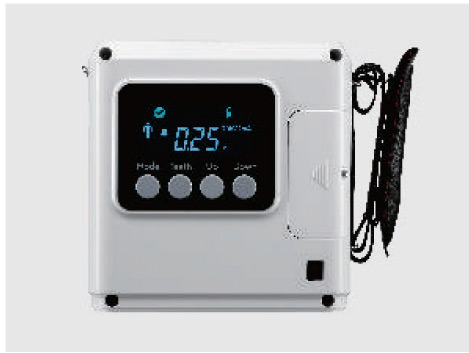

Portable High Frequency X-ray Unit

  • A true high frequency chairside X-ray machine, ensure less radiation for the patient & operator
  • Compact & single handed operational device
  • 2mA tube current, combines higher performance and high definition imaging
  • Adopt CANON micro focus tube with focus 0.4mm, anode angle of 12.5°
  • Wide digital display for easy operation
  • Digitalized control machinery provides accuracy & stability



Quantity

Add to cart

Share :

Break through the tradition, one machine with multiple operations

The high-frequency portable X-ray machine can be easily fixed on the chair for shooting, or simply detached for handheld shooting independently.

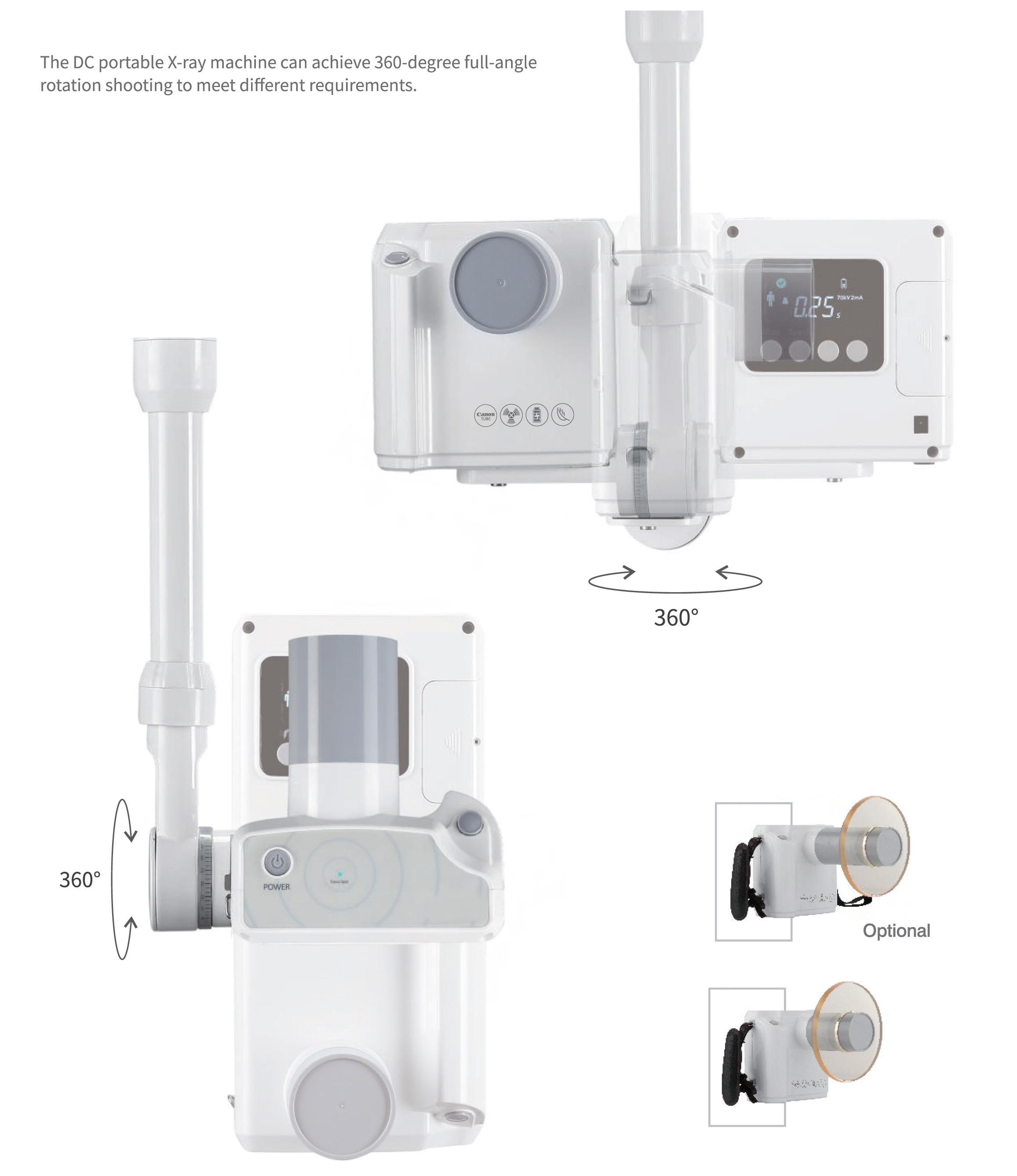

360-degree shooting without blind angles

The DC portable X-ray machine can achieve 360-degree full-angle rotation shooting to meet different requirements.

9 major features

  • High-frequency portable X-ray machine, compared with ordinary portable X-ray machines, the operators and patients will suffer from less radiation with better image effects.
  • The DC portable X-ray machine can be easily fixed on the chair for shooting, or simply detached for handheld shooting independently.
  • Adopting the micro-focus tube imported from Japan's Canon, with the focal point of 0.4mm and 12.5-degree anode angle, ensures a clearer image.
  • The exposure time is short with only about 0.4 seconds, which is 5 to 8 times shorter than the that of ordinary portable X-ray machines to ensure less radiation it can also reduce the influences of external factors such as hand shake, providing a better shooting effect.
  • The circuit components imported from South Korea adopt high-frequency closed-loop control. When the battery power is low, the image effect will not be affected.
  • Small in size, light in weight, simple to operate, and available to be operated with single hand.
  • Digital display with simple operation.

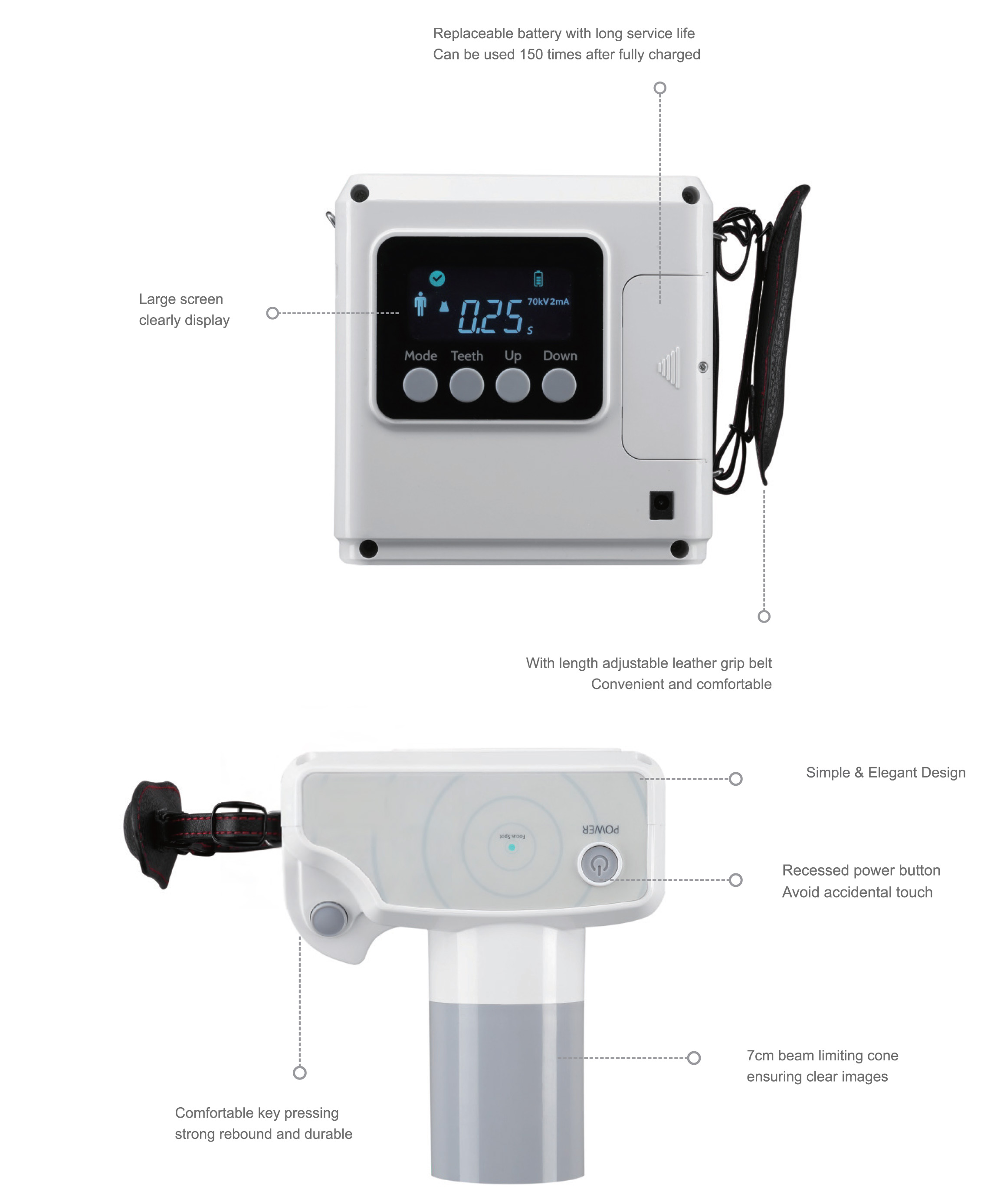

  • 150 shots can be taken continuously after the battery is fully charged.
  • Produced with quality assurance.

Smaller size,but with unchanged excellent image

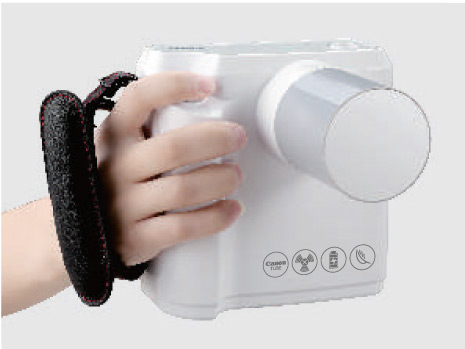

  • The compact hand-held design makes you free.
  • Single hand operation.
  • Without the shackle power cord.



Technical Specification

Parameters Instruction
Model: Tube Voltage: Tube Current: Charge Input Voltage: Frequency: X- Tube: Anode Angle: Focus: Exposure Time Range: Leak Emissivity: Machine Weight: Relative Humidity:
RAY98 (P) 70kV ± 10% 2mA ± 20% 100V - 240V 50Hz - 60Hz CANON D-045 12.5 ° 0.4mm 0.04s - 2.0s 1 meter 0.25mGy/h 1.7kg 30%RH - 75%RH

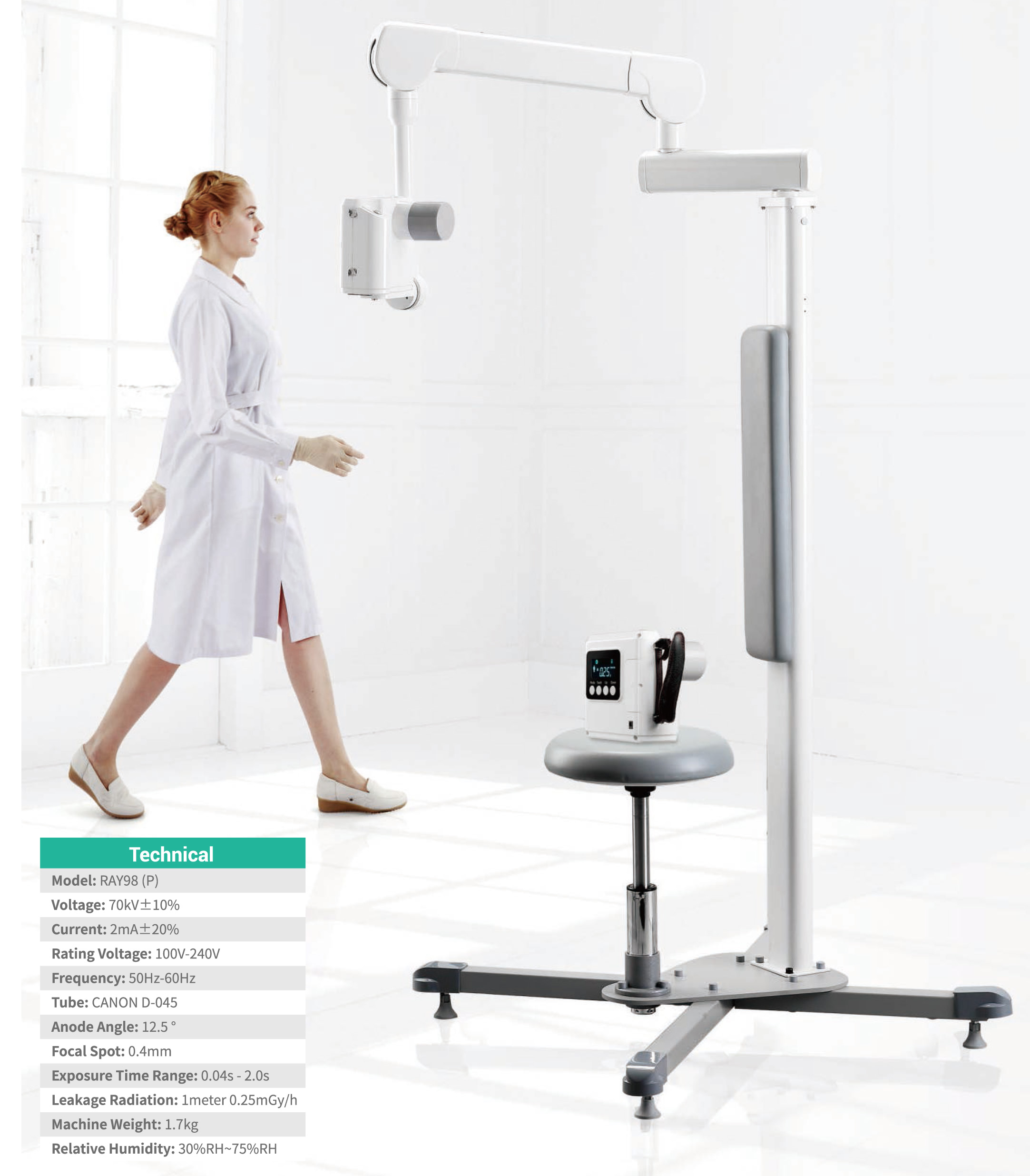

Technical
Model: Voltage: Current: Rating Voltage: Frequency: Tube: Anode Angle: Focal Spot: Exposure Time Range: Leakage Radiation: Machine Weight: Relative Humidity:
RAY98 (P) 70kV ± 10% 2mA ± 20% 100V - 240V 50Hz - 60Hz CANON D-045 12.5 ° 0.4mm 0.04s - 2.0s 1 meter 0.25mGy/h 1.7kg 30%RH - 75%RH
