Non-invasive, High-Intensity Focused Ultrasound Tumor Therapy System (HIFU)

AJJ proudly carries a Non-invasive and High- Intensity Focused Ultrasound (HIFU) Tumor Therapy System , in the name of HIFU-2001.

HIFU-2001's technology relies on the principle of good permeability and aggregation of ultrasonic waves in human tissues to focus high-energy ultrasonic waves through normal tissues and onto treatment sites.

At its narrow focus point, the energy is amplified, supplying an automated and controlled temperature (between 65°C - 90°C) to the treatment site, resulting in irreversible coagulation and necrosis of protein-denatured cell tissue. The energy that passes through healthy tissue is insufficient to cause any significant damage.

Quantity

Add to cart

Share :

AJJ proudly carries a Non-invasive and High- Intensity Focused Ultrasound (HIFU) Tumor Therapy System, in the name of HIFU-2001.

HIFU-2001's technology relies on the principle of good permeability and aggregation of ultrasonic waves in human tissues to focus high-energy ultrasonic waves through normal tissues and onto treatment sites.

At its narrow focus point, the energy is amplified, supplying an automated and controlled temperature (between 65°C - 90°C) to the treatment site, resulting in irreversible coagulation and necrosis of protein-denatured cell tissue. The energy that passes through healthy tissue is insufficient to cause any significant damage.

High Intensity Focused Ultrasound

A revolutionary non-invasive treatment that uses high-intensity focused ultrasound to treat tumors and certain cancers.

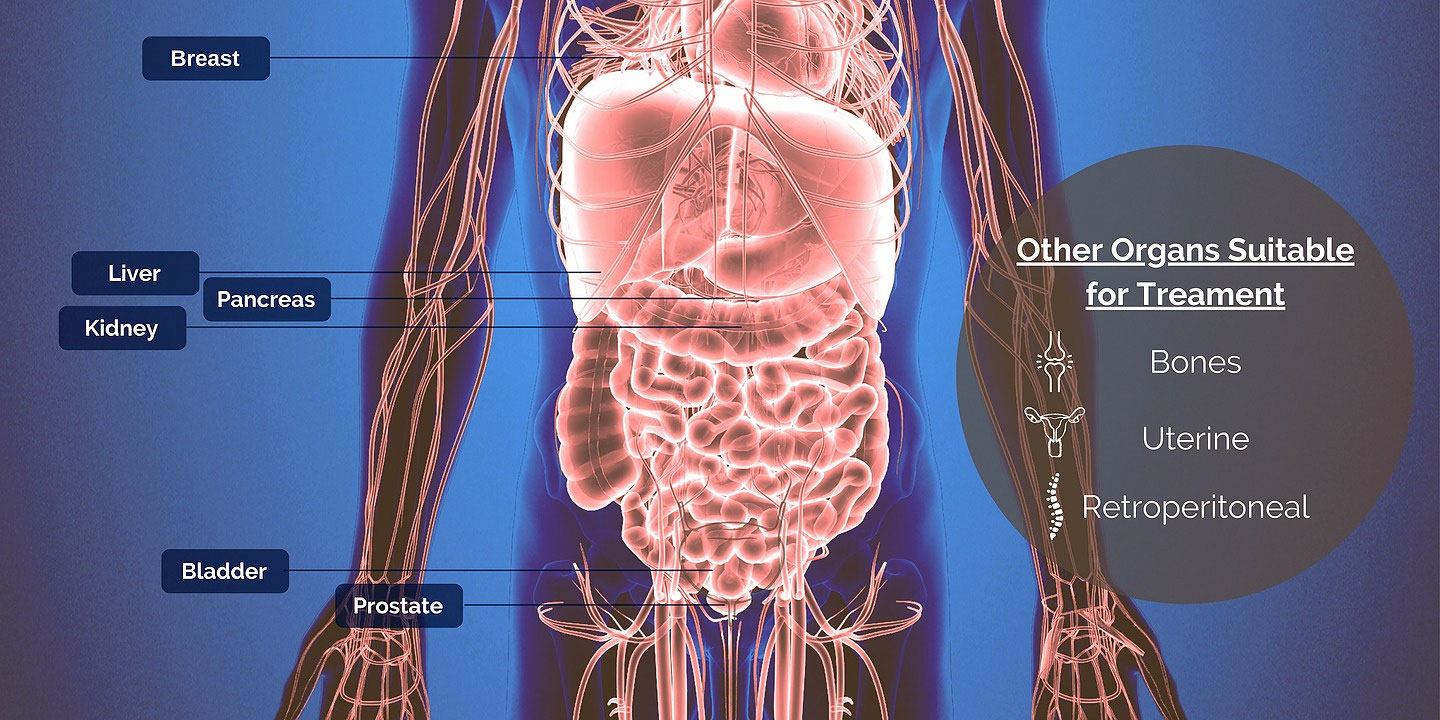

Suitable for many scenarios with up to 13 treatment types

  • Uterine fibroids, adenomyosis, endometriosis, pelvic tumors.
  • Benign prostatic hyperplasia.
  • Soft tissue tumors.
  • Green protective treatment of breast nodules and uterine fibroids in young women
  • Patient with solid tumors recurring after surgery.
  • Palliative treatment of advanced malignant tumors.

ProneSupine

  • Ultrasonic utilization rate is high, no water-sealing capsule; direct contact with the skin, allowing a cooling effect.
  • Under the premise of sound energy output, the lower-mounted treatment head is safer; one-time ablation is enough.

Technical Specification

Ultrasonic emission mode Therapeutic efficiency Treatment Depth Target Area Size Overall operational evaluation Performance Evaluation
Pulse emission,high degree of dafety, treatment without anesthesia. Accourding to Gross tumour target volume ("GTTV"). Can Complete ablation of 7*7*12cu.mm. in 5 seconds and treat tumors separately (Max 45 Mins). 0-144mm; Large treatment depth; Wide adaption population. 7*7*12mm Short treatment time per cu.mm. High treatment efficiency. Wide range multi-angle motion system can effectively inprove the preeoperative positioning and intraperative treatment efficiency, selection of multiple ultrasonic incidence channels and effective treatment depth are low. 3-D image precision. Safety, effeciveness and monitoring are considered. No pain, no lession, can treat not only the early stage of cancer, but the late stage for pain relieve too.
Check to receive our updates on company news and special offers on our products *


How It Works

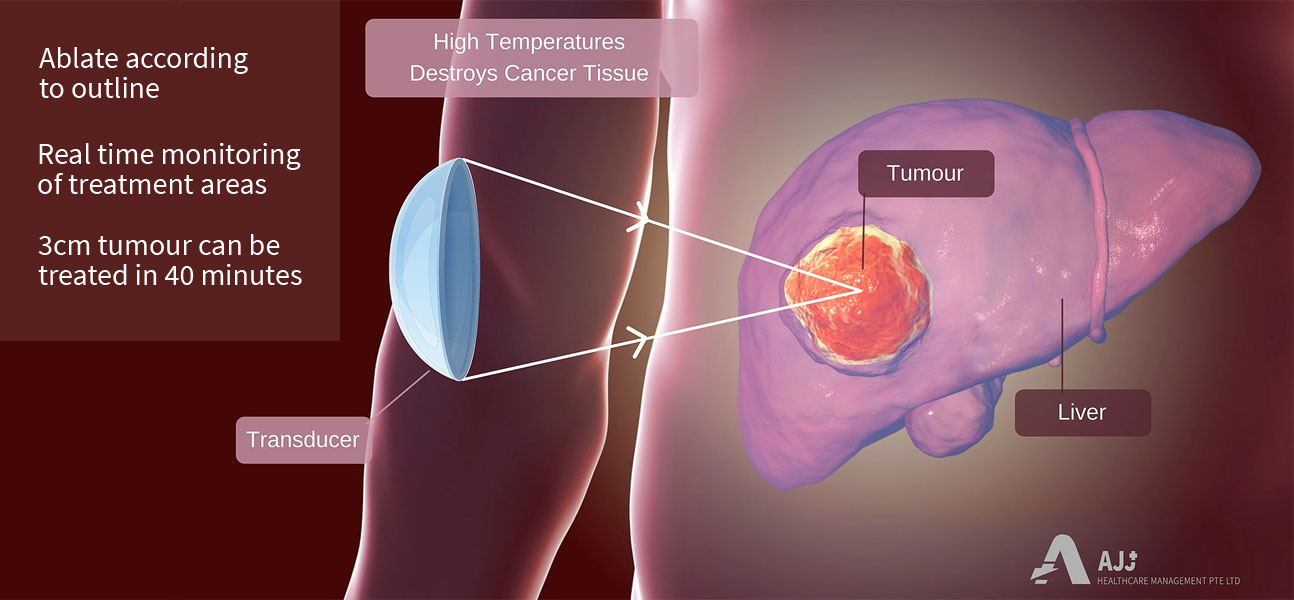

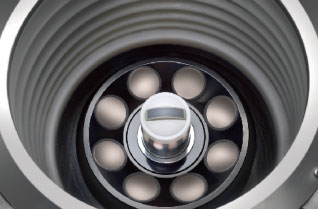

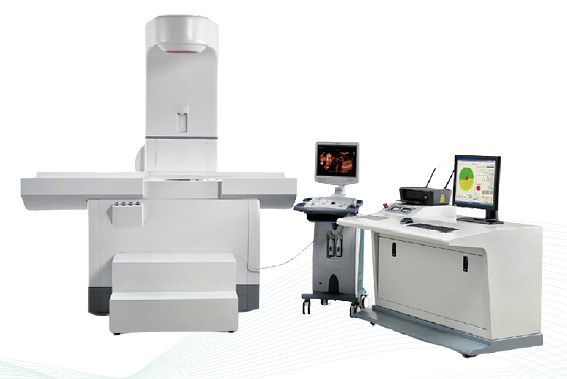

Control - Computer, system control software, remote control console. Positioning - Digital B ultrasound, double C-arm gantry, and threedimensional exercise therapy bed. Therapy - Multi-element dual focus ultrasound transducers, power drive and vacuum water treatment system. Reach high temperature instantly. Burn according to the actual outline. Real time monitoring of treatment areas.
Effective

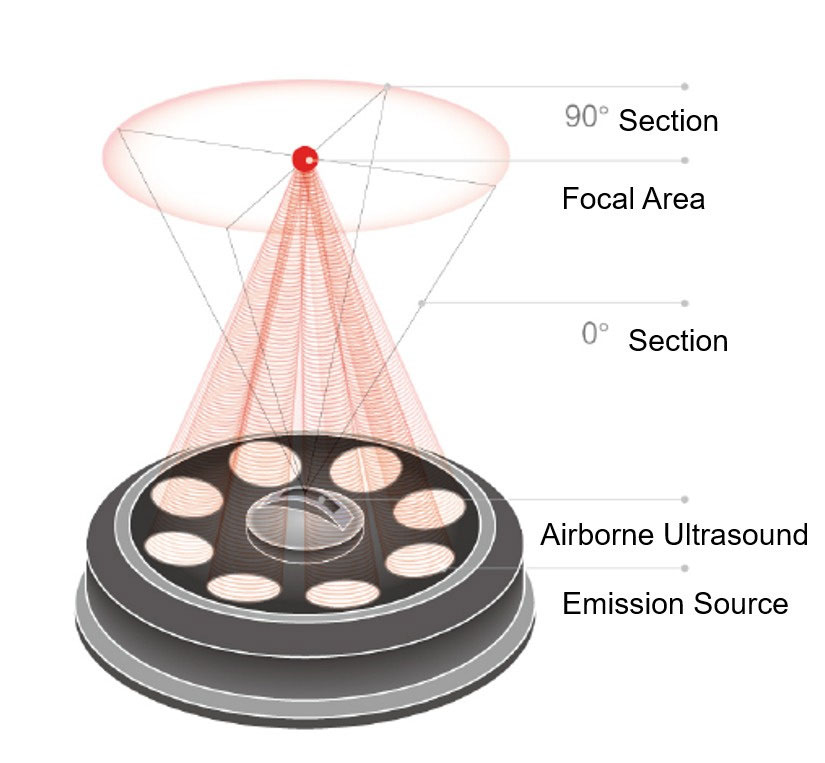

Multi-element dual focus technology ensure sound intensity at the focus meets treatment requirements, and the area outside the focus belongs to the safe treatment range.

Precise

Range of tumour ablation can be determined through real-time precise positioning of bultrasound, and the treatment can also be adjusted according to the actual situation.

Comfortable

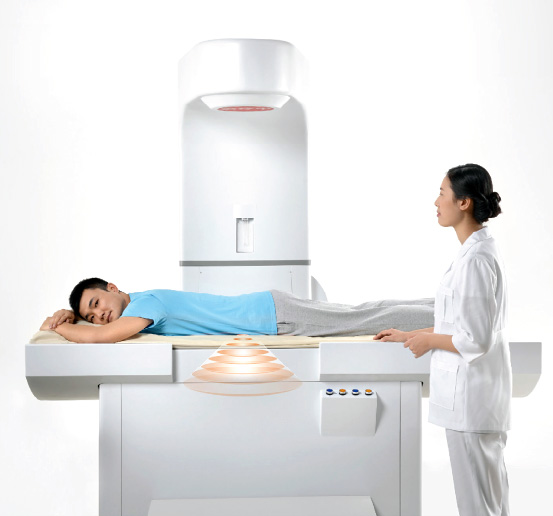

First HIFU treatment equipment with overhead probes. Patients are comfortably placed in a prone position with under head probes. Avoid water from the patient's skin to ensure a more comfortable treatment.

Safe

No anaesthesia needed. Flexible power settings and pulsed strikes allows heat to be dissipated at the treatment site, and there is no damage to normal gastrointestinal organs, no serious complications and side effects.

Synergy

Enhances the effectiveness of the treatment as HIFU does not produce any harmful substances.

Intelligent

3D reconstruction technology allows concentration of treatment heat, saving time and having the ability to remotely controlled.

  • Points are superimposed into lines, lines are arranged into planes, planes are superimposed into forms
  • Can generate over 65°C at the target, which causes coagulation necrosis.
  • Treatment of tumour at 3 cm in size can be completed in 40 minutes.
