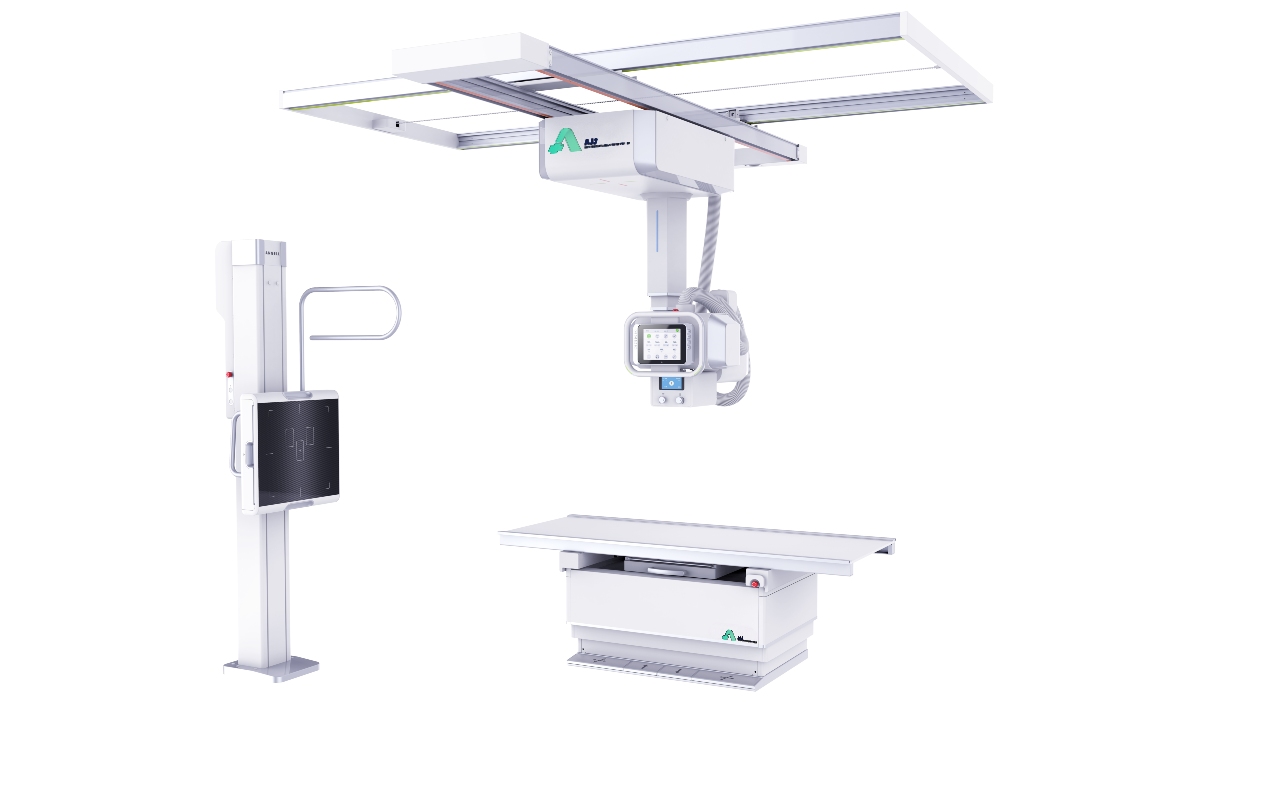

MultiRay-C Ceiling-mounted Dynamic X-Ray Radiographic System

EXCELLENT DYNAMIC IMAGING TECHNOLOGY

The dynamic detector technology provides visualization conditions for clinical examinations, and realizes fast and high-definition spot-film, and accurate diagnosis.
From two-dimensional anatomical imaging to organ function imaging, make diagnosis more accurate!

Quantity

Add to cart

Share :

INTELLIGENT MOTION CONTROL SYSTEM

The intelligent system offers flexible operation, stable performance, accuracy of movement, convenience for all clinical application, such as emergency, orthopedic, digestive, and radiology departments.

EASY AND EFFICIENT WORK FLOW

  • Built-in voice intercom system
  • 9.7-inch smart touch screen
  • Ultra-low position exposure
  • Flexible applications by dual detectors
  • Wireless remote control

EXCELLENT IMAGE CHAIN

  • Advanced dynamic technology could offer 9.4 million level pixels and can achieve convenient charging.
  • High frequency generator and high capability tube could continuously serve the large number of examinations. At the same time, it could highly improve the quality of diagnosis with blurring free image during both dynamic and static examinations.
  • Image workstation: The dynamic image can be partially enlarged and saved, and any segment can be intercepted during playback and used by PACS transmission.

INTELLIGENT DOSE CONTROL

  • Automatic Exposure Control (AEC)
  • Auto Collimation

Technical Specification

Dynamic Flat Panel Detector

  • Dynamic Flat Panel Detector Type: a-Si CsI Flat Panel Detector
  • Effective View Filed:17x17 in. (43 x 43 cm)
  • Static Pixel Matrix:3072*3072
  • Dynamic Pixel Matrix:1536*1536
  • Pixel Size:140μm
  • Spot-Film Preparation Time ≤0.8S
  • Output Grayscale:16bit
  • Spatial Resolution:3.6 lp/mm

Static Flat Panel Detector

  • Static Flat Panel Detector Type: a-Si CsI Flat Panel Detector,wireless
  • Effective View Filed:17x17 in. (43 x 43 cm)
  • Pixel Matrix:3072*3072
  • Pixel Size::140μm
  • Output Grayscale:16bit
  • Spatial Resolution:3.6lp/mm
  • Support Charging Under Exposure Mode
  • Image PreviewTime≤2S

High Frequency Generator

  • Maximum Output Power:65KW
  • mA range:10~800mA
  • Output Voltage for Radiography:40kV~150kV
  • mAs range:0.1mAs~1000mAs
  • Inveter Frequency:500kHz
  • Output Voltage for Fluoroscopy:40kV~125kV
  • Output Current for Fluoroscopy:0.5~20mA
  • AEC function with AEC Chamber.

Contact us to find out more specifications on this product!
