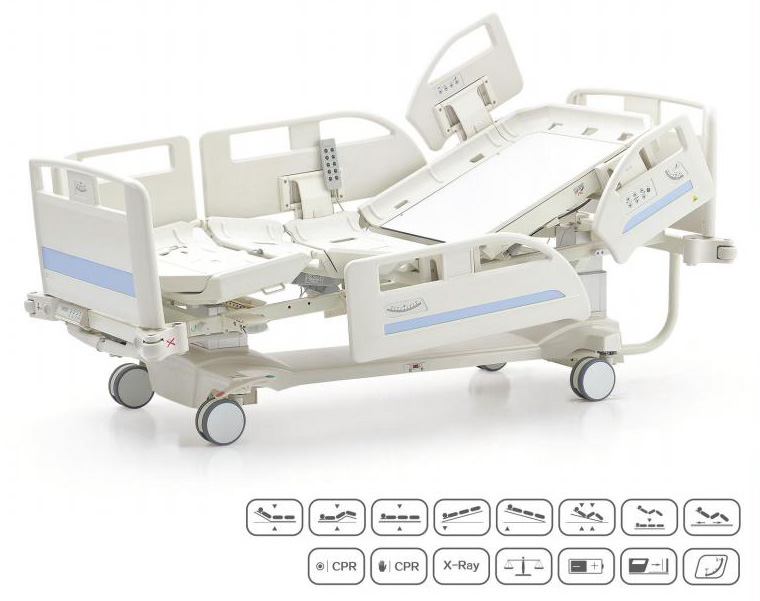

Multifunction Electric ICU Bed (DA-7 A2)

Constant Height Head Ends: Fixed height head end enables quick and easy access to the patient’s head, neck and thorax.

Split Side Rails: The 4pcs PP side rails provide the patient with protection against falls and the 2 pcs additional side rails near foot board offer more safety service and also provide the support during patient’s stand.

lntegrated Scales system: The in-bed scales control panel located under the foot end is protected against impacts.

Removable Mattress Platform: The Mattress platform is PP and phenolic resin boards which can be easy removable and easy for sterilization. The mattress platform can do X-ray for back board and offer the patient’s more comfortable.

Central Nurse Control System: The nurse or supervisor can adjust all the positions and find the comfortable and proper positions for the patients.

Columns Motor System: Electric lifting units in two columns enable the mattress platform height adjustment and TR&ATR positions, which can also ensure the bed’s stability.

Controls In The Side Rails: Controls in the side rails increase the patient’s independence so that the patients can operate it according to the self-requirement.

HIF Boards Locks: The bed board locks prevent accidental removal of the bed boards when steering or handling the bed.

X-Ray Cassette Holder: The holder’s special sliding construction allows the cassette to be comfortably inserted beneath the mattress platform from the side of the bed, and the position of X-Ray Cassette is adjustable according to the stature of patients.

Manual/Electric CPR: The electric CPR is easy and convenience to operate that is one key control. And the manual CPR is equipped with damping device, which can let the back rest fall down slowly to ensure the safety of the patient when the power is off, the whole process can be single hand operation.

Standing armrest: (optional)

Night light: (optional)

Quantity

Add to cart

Share :

Standard configuration

Constant Height Head Ends: Fixed height head end enables quick and easy access to the patient’s head, neck and thorax.

Split Side Rails: The 4pcs PP side rails provide the patient with protection against falls and the 2 pcs additional side rails near foot board offer more safety service and also provide the support during patient’s stand.

lntegrated Scales system: The in-bed scales control panel located under the foot end is protected against impacts.

Removable Mattress Platform: The Mattress platform is PP and phenolic resin boards which can be easy removable and easy for sterilization. The mattress platform can do X-ray for back board and offer the patient’s more comfortable.

Central Nurse Control System: The nurse or supervisor can adjust all the positions and find the comfortable and proper positions for the patients.

Columns Motor System: Electric lifting units in two columns enable the mattress platform height adjustment and TR&ATR positions, which can also ensure the bed’s stability.

Controls In The Side Rails: Controls in the side rails increase the patient’s independence so that the patients can operate it according to the self-requirement.

HIF Boards Locks: The bed board locks prevent accidental removal of the bed boards when steering or handling the bed.

X-Ray Cassette Holder: The holder’s special sliding construction allows the cassette to be comfortably inserted beneath the mattress platform from the side of the bed, and the position of X-Ray Cassette is adjustable according to the stature of patients.

Manual/Electric CPR: The electric CPR is easy and convenience to operate that is one key control. And the manual CPR is equipped with damping device, which can let the back rest fall down slowly to ensure the safety of the patient when the power is off, the whole process can be single hand operation.

Standing armrest: (optional)

Night light: (optional)

Technical Specification

Technical Features :

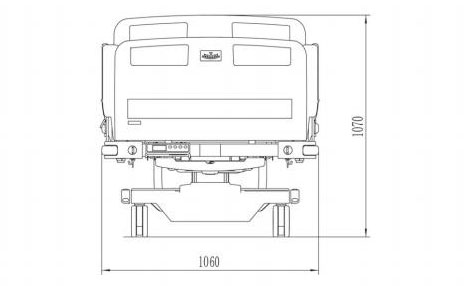

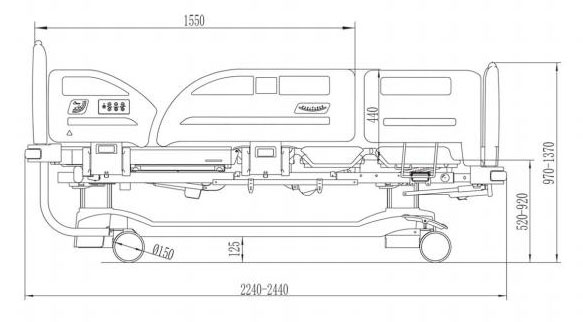

Outer dimensions (Side rails up) L2240*W1060mm (±10mm)
Mattress platform L1965*W920mm (±10mm)
Bed height H520-920mm (±10mm)
Bed extension 200mm ( ± 10mm)
Maximum backrest ≥ 70°
Maximum thigh rest ≥ 30°
TR/ATR ≥ 12°
Height of side rails (above mattress platform) 440mm (±10mm)
Safe working load 200kgs
Electric parameters :
Power supply 220V/110V, 50HZ / 60HZ
Maximum input 1.6A, 450VA
Protection against water and dust IPX4
Equipment security classification Class II
Level of protection against injury from electrical current Applied part type BF
Electric motor operation mode (load factor) 10%, max. 2 min/18 min
Certificates
Pukang Medical is certified according to European norms and quality system:
EN ISO9001: 2015, EN ISO 13485: 2016 EN ISO14001: 2015		 Products are manufactured according to European norms for medical technology and hospital beds
EN 60601-1, EN60601-1-2, EN ISO 14971, 93/42/EEC,90/384/EEC EN60601-2-52: 2015
