Multifunction Electric ICU Bed (DA-2 A3)

  • Home/
  • Products/
  • Medical/
  • General Hospital Equipment/
  • Multifunction Electric ICU Bed (DA-2 A3)
Back To Product

Multifunction Electric ICU Bed (DA-2 A3)

Split Side Rails:

The 4pcs PP side rails provide the patient with protection against falls.

Removable Mattress Plafform: Easy removable and easy for sterilization. The mattress platform can do X—ray for back board and offer the patient’s more comfortable.

HIF Boards Locks: The bed board locks prevent accidental removal of the bed boards when steering or handling the bed.

Protective corner bumpers

Lifting pole or infusion stand holes

Mattress holders

Angle Indicator: The angle gauges of side rails in the head and foot direction show the angles of the backrest and the tilt of the whole bed mattress platform respectively.

Extension of the bed: The integrated bed extension adjusts the mattress platform length to the individual patient’s height.

Integrated Scales system: The in—bed scales control panel located under the foot end is protected against impacts.

Four 125mm castors with central locking system

Manual/Electric CPR: The electric CPR is easy and convenience to operate that is one key control. And the manual CPR is equipped with damping device, which can let the back rest fall down slowly to ensure the safety of the patient when the power is off, the whole process can be single hand operation.

Quantity

Add to cart

Share :

Standard configuration

Split Side Rails:

The 4pcs PP side rails provide the patient with protection against falls.

Removable Mattress Plafform: Easy removable and easy for sterilization. The mattress platform can do X—ray for back board and offer the patient’s more comfortable.

HIF Boards Locks: The bed board locks prevent accidental removal of the bed boards when steering or handling the bed.

Protective corner bumpers

Lifting pole or infusion stand holes

Mattress holders

Angle Indicator: The angle gauges of side rails in the head and foot direction show the angles of the backrest and the tilt of the whole bed mattress platform respectively.

Extension of the bed: The integrated bed extension adjusts the mattress platform length to the individual patient’s height.

Integrated Scales system: The in—bed scales control panel located under the foot end is protected against impacts.

Four 125mm castors with central locking system

Manual/Electric CPR: The electric CPR is easy and convenience to operate that is one key control. And the manual CPR is equipped with damping device, which can let the back rest fall down slowly to ensure the safety of the patient when the power is off, the whole process can be single hand operation.

Technical Specification

Technical Features :

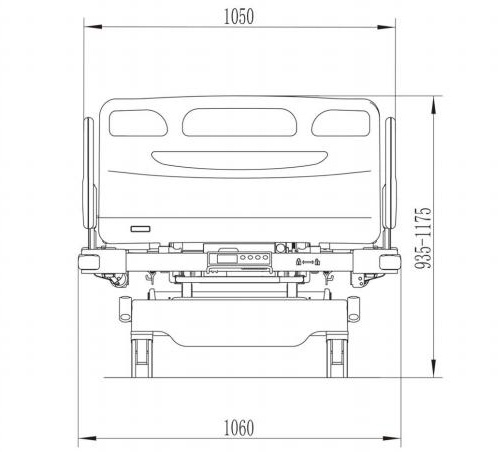

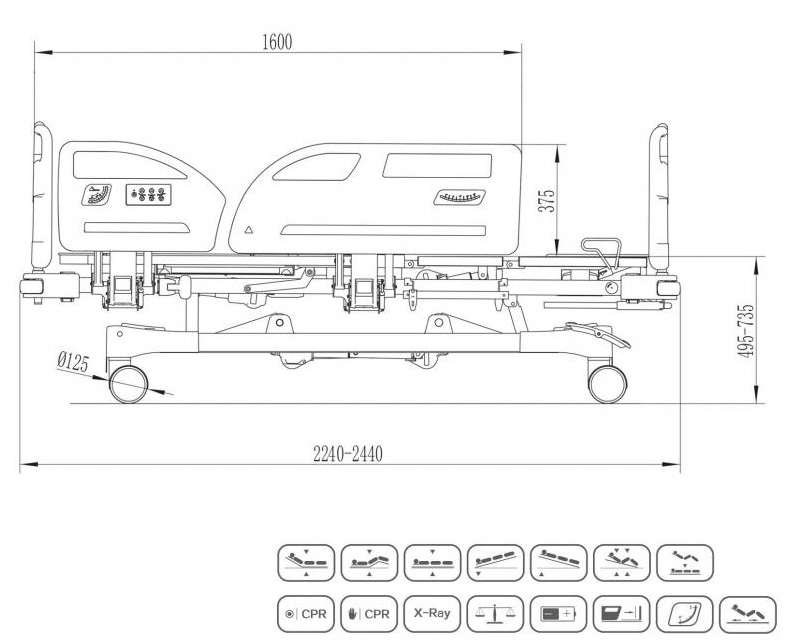

Outer dimensions (Side rails up) L2240*W1040mm (±10mm)
Mattress platform L1920*W900mm (±10mm)
Bed height H495-735mm (±10mm)
Bed extension 200mm ( ± 10mm)
Maximum backrest ≥ 70°
Maximum thigh rest ≥ 25°
TR/ATR ≥ 12°
Height of side rails (above mattress platform) 380mm (±10mm)
Safe working load 200kgs
Electric parameters:
Power supply 220V/110V, 50HZ / 60HZ
Maximum input 1.6A, 450VA
Protection against water and dust IPX4
Equipment security classification Class II
Level of protection against injury from electrical current Applied part type BF
Electric motor operation mode (load factor) 10%, max. 2 min/18 min
Certificates
Pukang Medical is certified according to European norms and quality system:
EN ISO9001: 2015, EN ISO 13485: 2016 EN ISO14001: 2015		 Products are manufactured according to European norms for medical technology and hospital beds
EN 60601-1, EN60601-1-2, EN ISO 14971, 93/42/EEC,90/384/EEC EN60601-2-52: 2015
