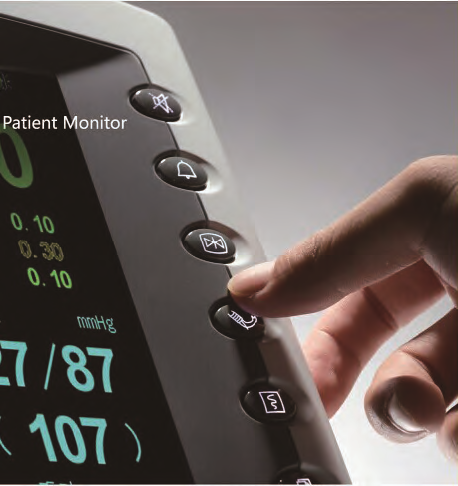

Moni 8DV
- Super ability in against electrosurgical interference. Neither in cutting nor in burning, ECG waveform and HR can be influenced, very short recovering time after defibrillation, especially suitable for use in emergency or operating room.
- Unique thoracic impedance & nasal tube double modes respiration test method (when animals can not lie quietly, only nasal tube respiration can detect the right respiration waveform and respiration rate).
- 12.1" color TFT LCD screen, High brightness, Wide viewing, 8 waveforms can be displayed on the same screen.
- Lightness and volume are adjustable independently.
- Streamlined outline design with sense of the times & foldable handle.
- Multi-language interface selection: English, Spanish, French, Russian, Arabic, Portuguese, Italian, Turkish, Chinese, etc.
- User-friendly and man-machine dialogue interface with pop-up menus, dialogue boxes, rotary mouse and etc.
- Low-power consumption design with standby mode, rechargeable high-energy built-in battery.
- Advanced digital technology, accurately measure SpO2 in low perfusion situation.
- Huge history trend data storage up to 360 hours
- Drug calculation, ST-segment detection, pace maker and arrhythmia analysis.
- 5 kinds of fixed display format includes OxyCRG diagram, 7-lead ECG waveform, big-font mode, etc.; 5 kinds of user-defined display format.
- 3-level audible alarm, visual alarm and apnea alarm available; Alarm limits are adjustable.
- Suitable for adult, pediatric and neonate animals.
- Applications in bedside and delivery monitoring; Widely used in in-patient room, emergency room, operation room, etc.
- WAN communication function to network with central monitoring system and make long-distance monitoring, diagnosis, maintenance and software upgrade possible.
- Printing of data, waveform, trend tables and trend diagram.
Quantity
Standard Configuration:
Main unit with standard 6-parameter veterinary accessories (ECG, NIBP, SpO2, RESP, TEMP, HR/PR), Rechargeable battery.
Optional Configuration:
2-IBP, EtCO2 (Mainstream or Sidestream), CO, AG (Anesthesia Multigas Module), Built-in Printer, Mobile Trolley, Wall Mount, Touch Screen, 12V Power Supply for Ambulance Use, Carrying Bag, Wireless Network.
Technical Specification
ECG
Input: 3-lead/5-lead ECG cable
Lead selection: I, II, III, AVR, AVL, AVF, V
Gain selection: x1/4, x1/2, x1, x2, x4 and automatic
Sweep speed: 3.125, 6.25, 12.5, 25, 50mm/s
Measurement range: 15bpm~380bpm
Calibration: ±1 mv
Accuracy: ±1%
NIBP
Philosophy: Oscillometric method
Measurement type: Adult, Pediatric and Neonate
Measurement parameter: Systolic, Diastolic, Mean
Measurement method: Manual, Automatic, Continuous measurement
Unit: mmHg/kPa selection
Accuracy: ±3mmHg or ±2%
SpO2
Display type: Waveform, Data
Measurement range: 0~100%
Accuracy: 1%
Pulse rate range: 30~250bpm
Accuracy: ±1bpm
Resolution: 1bpm
Anesthesia Gas Analysis (Optional)
Method: Infrared Absorption
Gas Sorts: CO2, N2O, Des, Iso, Enf, Sev, Hal and optional O2
Measurement range: CO2 0~30%, N2O 0~105%, O2
0~105%, Iso, Enf, Hal 0~30%, Sev 0~30% Des 0~30%
Data input: Fi and Et values
Optional agent mixture detection
Power Requirement
Working voltage: 100~240VAC, 50/60Hz
Power rate: 80 VA
Battery backup: 3 hours as option
Temperature
Number of channels: 2
Measurement range: 0ºC~ 50ºC
Resolution: 0.1ºC
Display: T1, T2, ΔT
Unit: ºC/ºF selection
Respiration Rate
Measurement range: 0~156bpm
Accuracy: ±1bpm
Resolution: 1bpm
IBP (Optional)
Measurement range: -10~300mmHg
Number of channel: 2 channel
Accuracy: ±1mmHg or ±2%
Pressure tag: ART, CVP, RVP, LAP, RAP, PAP, ICP, LVP
ETCO2 (Optional)
Measurement type: Main/Side stream
Measurement range: 0%~19.7%; 0~150mmHg; 0~20kpa
Accuracy: 0~40mmHg ±2mmHg
41~70mmHg ±5%
71~100mmHg ±8%
101~150mmHg ±10%
Cardiac Output (Optional)
Measuring Method: Thermodilution
Blood temperature measurement and alarm range: 23ºC~43ºC
Unit: degrees Celsius ºC or Fahrenheit ºF
Error: ±0.2ºC
Resolution: 0.1ºC
Cardiac output measurement range: 0.1L/min~20.0 L/min
Error: ±0.2 L/min or ±5%
