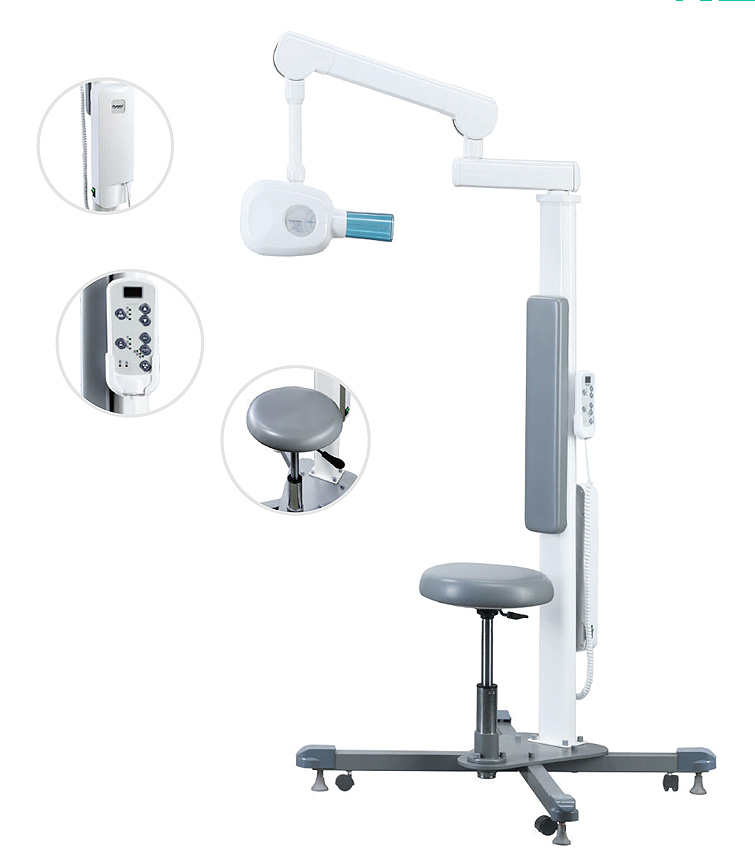

Mobile X-Ray RAY98 (M)

  • High-frequency X-ray unit eliminate soft radiation, allowing doctors and patients to absorb less radiation than conventional equipment.
  • Reduced exposure time, higher radiation safety standards, and longer tube life.
  • Almost no soft rays and stray radiation, high imaging quality.
  • Excellent stability, not affected by fixed voltage, no need for voltage regulator, smooth movement, fast and accurate positioning.

Quantity

Add to cart

Share :

  • High-frequency X-ray unit eliminate soft radiation, allowing doctors and patients to absorb less radiation than conventional equipment.
  • Reduced exposure time, higher radiation safety standards, and longer tube life.
  • Almost no soft rays and stray radiation, high imaging quality.
  • Excellent stability, not affected by fixed voltage, no need for voltage regulator, smooth movement, fast and accurate positioning.

Low Radiation and High Resolution Imaging

combination of products and technology provides high-quality imaging while reducing radiation, providing a safer experience for doctors and patients.

Core Advantages Of High Frequency Series

  • Novel design, perfectly match with your clinic.
  • Adopting the method of "voltage preset and feedback adjustment", with high control accuracy.
  • Adopting closed-loop control, anode voltage (kV) and anode current (mA) will not be affected by input voltage fluctuations and are relatively stable.
  • High-frequency dental X-ray machines can eliminate soft radiation, operators and patients will suffer less radiation dose.
  • The high frequency machine has stable output spectrum, with less scattered X-rays and clear images.

Microprocessor Control
Easy operation, the exposure time can be set automatically or manually as required

Open Consumables
The industrial frequency series can use all types of dental films on the market

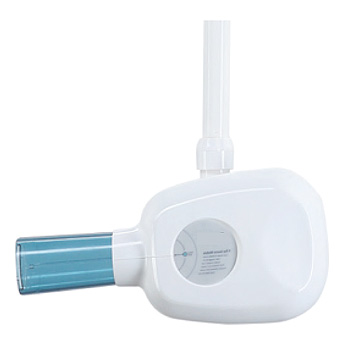

Special-designed Telescopic Arm
It is easy to take images without patient leaving the treatment table.

Technical Specification

Power Voltage AC 110-240V
Frequency 50/60Hz
Maximum Power 1100VA
Current 5A
Fuse 10A
Bulb Tube CANON D-045
Ray Focal Spot 0.4mm
Bulb Tube Voltage 65KV ±10%
Anode Current 7mA ±20%
Anode Angle 12.5°
Duty Cycle 1/30
Half Value Layer 65Kv
Inherent Filtration ≥ 2.1mm Al
Leakage Radiation 1 meter ≤ 0.14mGy/h
Time Of Exposure 0.01-2.0s
