Low Speed Handpiece

Back To Product

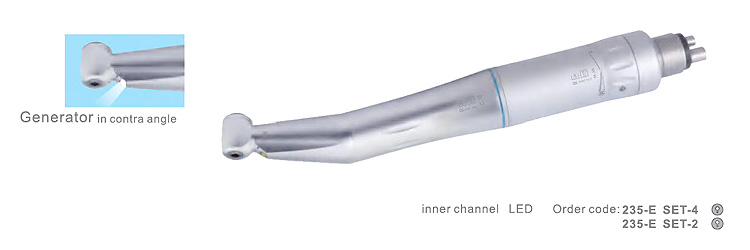

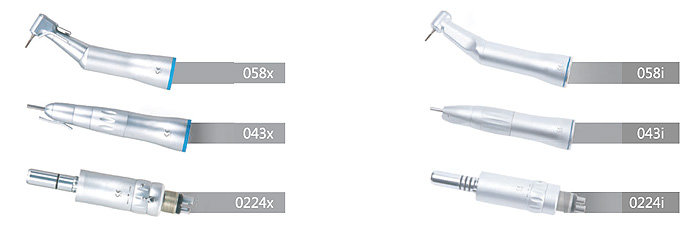

Low Speed Handpiece

Low speed handpiece is using high technology and original design from European company. This handpiece adopt the 1S03964 standard and combines with air motor, contra angle, and straight handpiece. The connection of motor and connected pipe adopts th._, 11C9168 ineeraticnal 21c 4 hcle available).

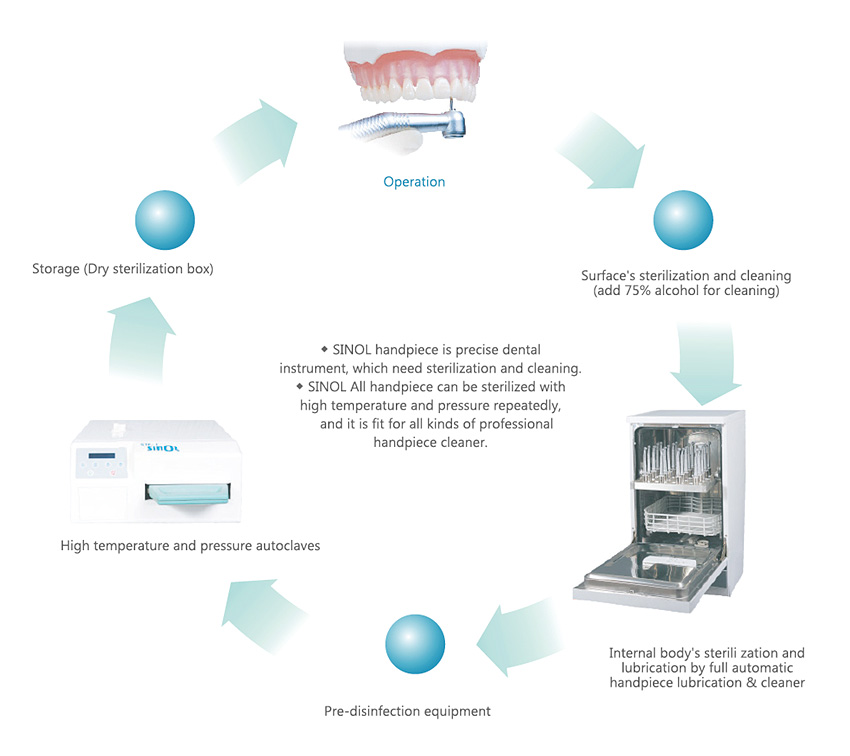

  • SINOL handpiece is precise dental instrument, which need sterilization and cleaning.
  • SINOL All handpiece can be sterilized with high temperature and pressure repeatedly, and it is fit for all kinds of professional handpiece cleaner.

Quantity

Add to cart

Share :

Low speed handpiece is using high technology and original design from European company. This handpiece adopt the 1S03964 standard and combines with air motor, contra angle, and straight handpiece. The connection of motor and connected pipe adopts th._, 11C9168 ineeraticnal 21c 4 hcle available).

  • SINOL handpiece is precise dental instrument, which need sterilization and cleaning.
  • SINOL All handpiece can be sterilized with high temperature and pressure repeatedly, and it is fit for all kinds of professional handpiece cleaner.

Lubrication Method

Lubrication Method for high speed handpiece :

Lubrication for Maintenance

  • Revolution can not reach the standard
  • Vibration, high noise.
  • Vibrated bearing

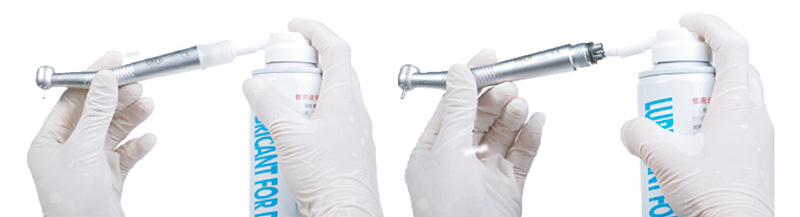

  • Dismount the handpiece from connecting pipe.
  • Install different handpiece's lubricate nozzle on the spray nozzlewell to avoid leak lubrication.
  • Insert nozzle on back of handpiece body or air inlet ensure lubrication's well spray through handpiece until the clean lubrication comes out.

Summarize: All the handpiece need sterilization and lubrication after operation or using it surpass 30 minutes to prolong handpiece's life.

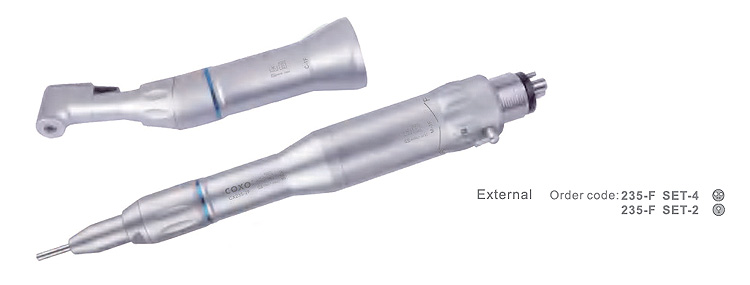

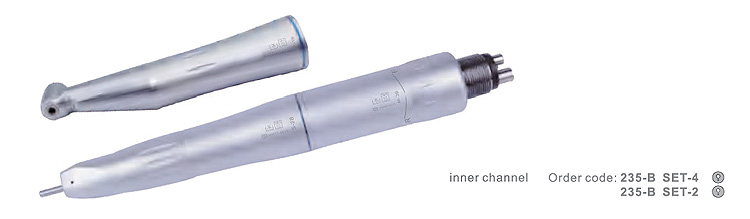

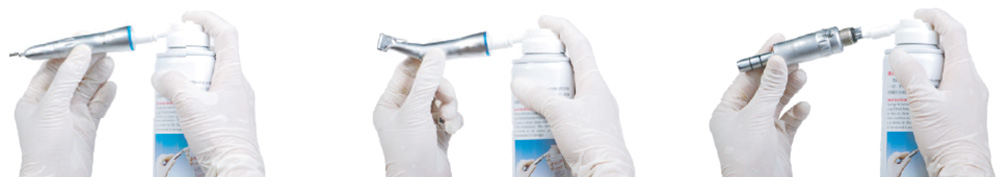

Straight handpiece ( contra handpiece)

  • Dismount straight handpiece( contra handpiece) from motor.
  • Install E nozzle on the lubricant.
  • Insert E nozzle on back of straight handpiece ( contra handpiece) to spray 2-3 seconds till through out of head. Stop spray until clean lubrication comes out.
  • Keep Straight handpiece( contra handpiece) stand for a while, and then connect with the motor until there is no lubrication in turbine.

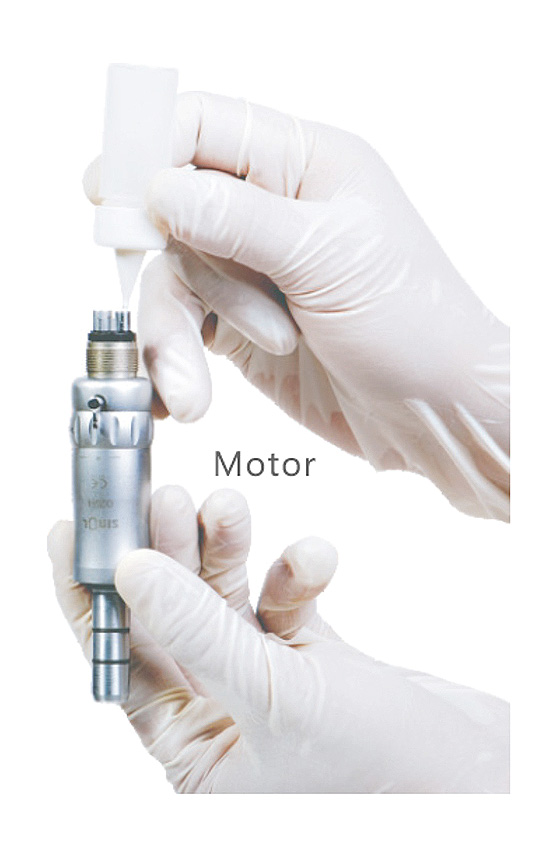

Motor

  • Keep front inserted turbine down, push and spray the lubricate for 4-5 drops or aim at air inlet of motor to spray 2-3 seconds.
  • Connect the motor with turbine to spin 1-2 minutes till finish lubrication.
  • Wipe the redundant lubrication with tissue to finish lubrication.

Cooling drainage water solution

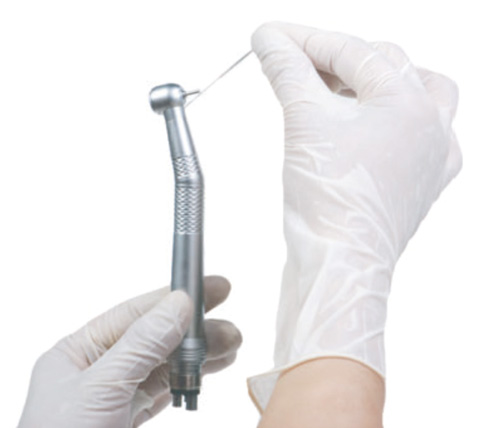

Check connecting pipe water system, and connect quick couplet to avoid blocks in turbine, clean it with probe. If it can not be solved, return to SINOL for maintenance. Side spray type is a kind of mixture spay in turbine, appropriate cooling air pressure is adjusted ahead.

Trouble solution for chucking system of high speed handpiece

Chucking system's trouble is caused by block in chucking head and pay attention to following can avoid chucking head broken.

Bur Selection

  • Make sure revolution provide by the manufacture when select bur.
  • Damage bur will drop off from head which shorten the handpiece life.
  • Mini head connected with short handle bur should be suggested because long handle bur will drop off easily.

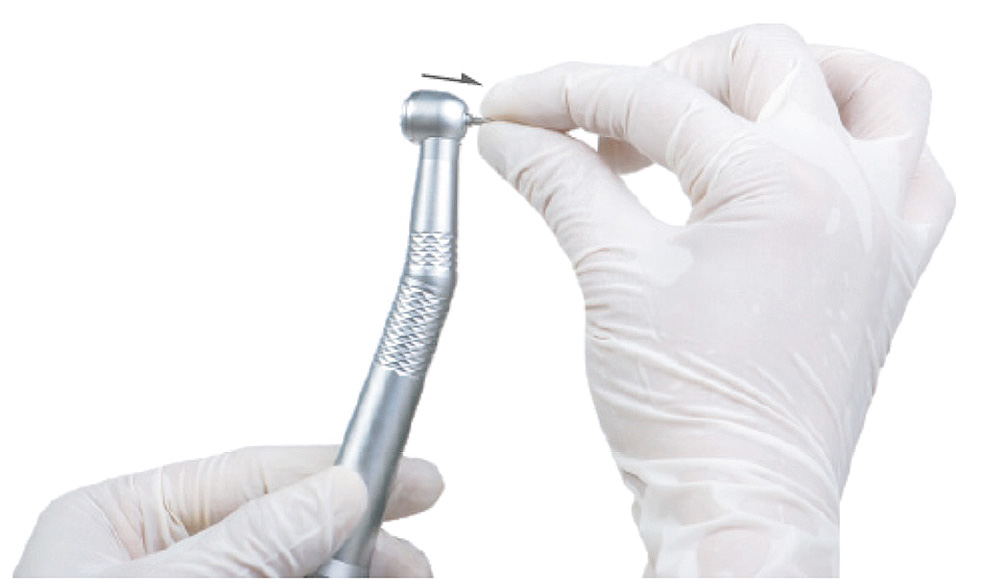

Bur installation

  • Install bur after cleaning blocks avoiding flexibility of chucking system.
  • Insert bur firmly till it can not be pull.

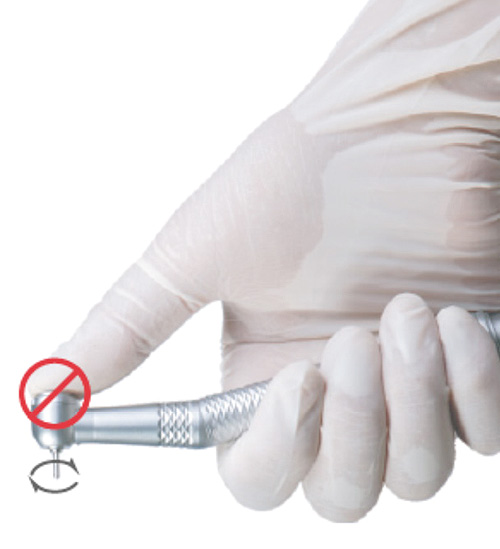

  • The handpiece broke caused by spindle contact with push button, which is difficult in open the push button. So, press the push button will result in damage of button inside and what worse is that you will burn when replace bur in hanadpiece working.

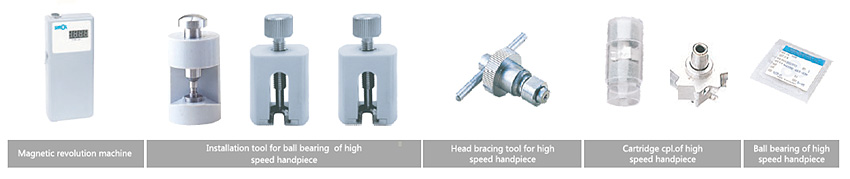

Maintaining Tools

Technical Specification

Low Speed Handpiece 1 way spray
Chuck Type push button
Noise ≤ 70dB
Air pressure 0.30MPA
Effective range of overload pneumatic protection Ø 2.35 - 0.016 MM(ISO1797-1)
Rotation Speed about 20,000rpm
N/A
