Isolab

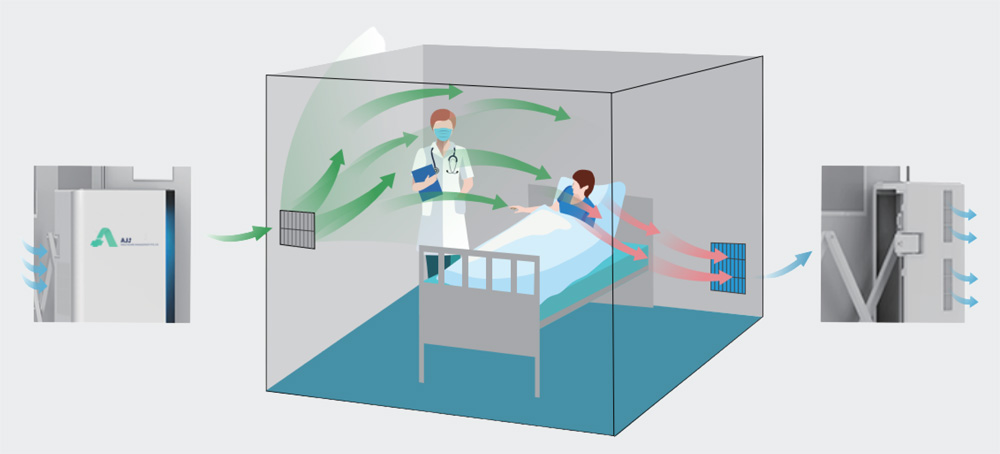

Portable isolation ward with inbuilt negative pressure system and air filtering technology. Specifically designed to contain people with infectious diseases and prevent virus transmission.

  • CE -marked
  • FDA Class 2
  • IEC 60601-1:2005, + A1 2021
  • IEC 60601-1-2:2014, EN 60601-1-2:2015
  • Guangdong Medical Care Inspection for Quality Supervision
  • Fresh air + inlet at 150m³/h
  • Exhaust air outlet which went through double filtration
  • Precise airflow in favour of healthcare staff

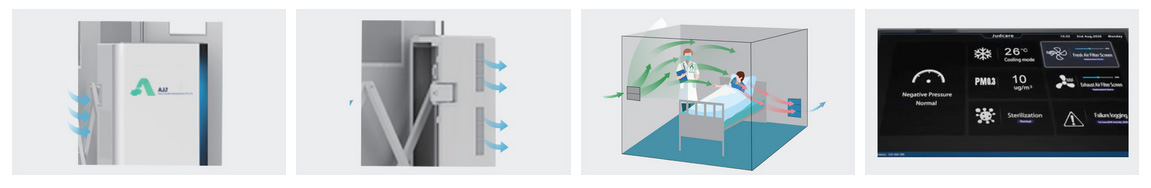

  • Interactive touch screen system with real time data

Quantity

Add to cart

Share :

Portable isolation ward with inbuilt negative pressure system and air filtering technology. Specifically designed to contain people with infectious diseases and prevent virus transmission.

  • CE -marked
  • FDA Class 2
  • IEC 60601-1:2005, + A1 2021
  • IEC 60601-1-2:2014, EN 60601-1-2:2015
  • Guangdong Medical Care Inspection for Quality Supervision
  • Fresh air + inlet at 150m³/h
  • Exhaust air outlet which went through double filtration
  • Precise airflow in favour of healthcare staff
  • Interactive touch screen system with real time data

Safe

Fully sealed polymer, fire-resistant canopy, negative pressure system and HEPA double filtration system prevents pathogen transmission externally

Quality

Mitsubishi air compressor, german EBM fan system, Siemens pressure sensor and aluminium alloy frame structure

Compact

Less than 1 m³ when folded

Backup Power

Maintains operation in the event of power failure

High Mobility

Small foot print with a set up time of only 10 minutes

Comfortable

Fresh air is supplied at 150m³/h and room temperature can be set from 20°C to 27°C

Convenience

Mobile PPE station with automated door can be opened with foot sensor for entrance and exit

Technical Specification

Size (mm) Power Temperature Fresh air volume(m³/h) Ventilation Frequency (times/h) Filtration rate Power Supply
Fold : 830*850*1270

Unfold (Internal) : 2500*2500*2170		 Air pressure system ≤ 200W

Air pressure system + cooling mode ≤ 1300W

Air pressure system + heating mode ≤ 2300W		 20°C - 27°C ≥ 150 ≥ 12 ≥ 99.99% AC 220V/50Hz
