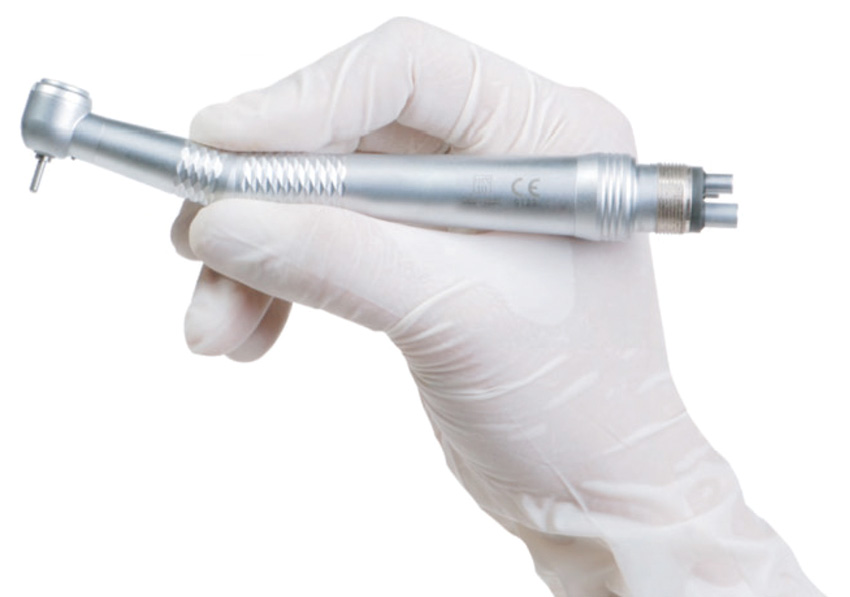

High Speed Handpiece

Back To Product

High Speed Handpiece

General Advantages

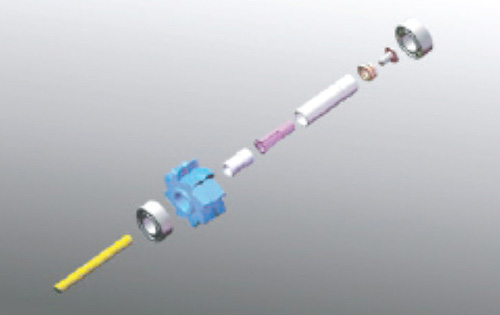

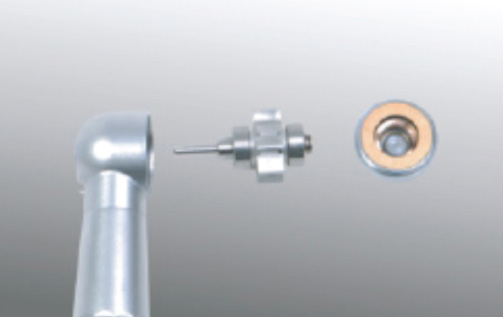

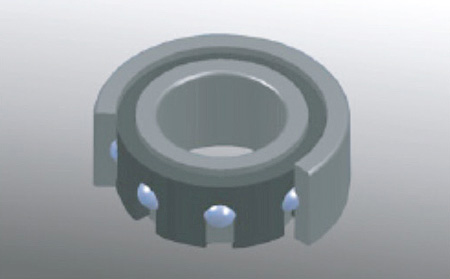

  • High precise bearing ball : Adopt high-tech, import high precise ball bearing from Germany, which has many features as low noise, vibration free, long-lived n using.
  • Perfect performance : Perfect technological design, high-quality materials and elaborate processing make the perfect performance.
  • Safety and reliability : Adopt precise cartridge complete from Europe make the push complete safe and reliable for curing.

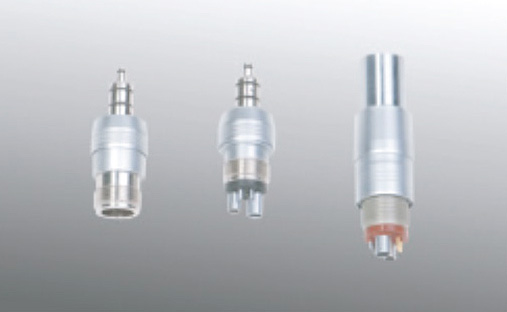

  • Flexibility : 360° swift quick coupling which is easy for operation and reducing tiredness.

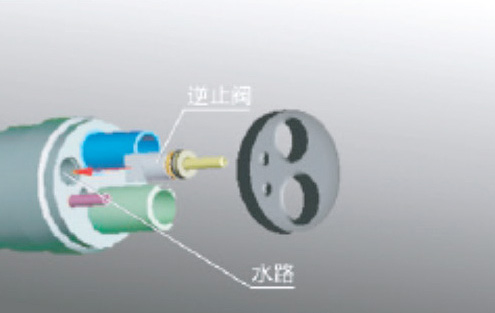

  • Anti-retraction system : Avoid contaminationaccompanied by water to enter the anti-retraction device when nandpiece stop working.
  • Convenient maintenance : SINOL handpiece can be sterilized with high temperature and pressure repeatedly.

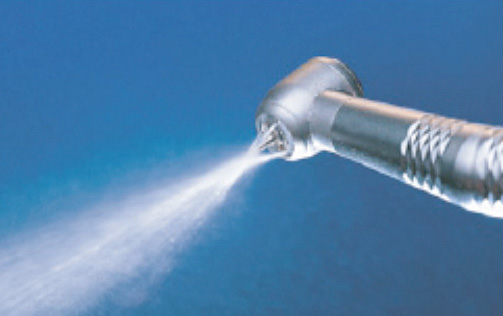

  • Continuous cooling : One hole or more holes to spray cooling which is guarantee the preparation Area's complete cooling.

Quantity

Add to cart

Share :

General Advantages

  • High precise bearing ball : Adopt high-tech, import high precise ball bearing from Germany, which has many features as low noise, vibration free, long-lived n using.
  • Perfect performance : Perfect technological design, high-quality materials and elaborate processing make the perfect performance.
  • Safety and reliability : Adopt precise cartridge complete from Europe make the push complete safe and reliable for curing.
  • Flexibility : 360° swift quick coupling which is easy for operation and reducing tiredness.
  • Anti-retraction system : Avoid contaminationaccompanied by water to enter the anti-retraction device when nandpiece stop working.
  • Convenient maintenance : SINOL handpiece can be sterilized with high temperature and pressure repeatedly.
  • Continuous cooling : One hole or more holes to spray cooling which is guarantee the preparation Area's complete cooling.

Handpiece Specifications

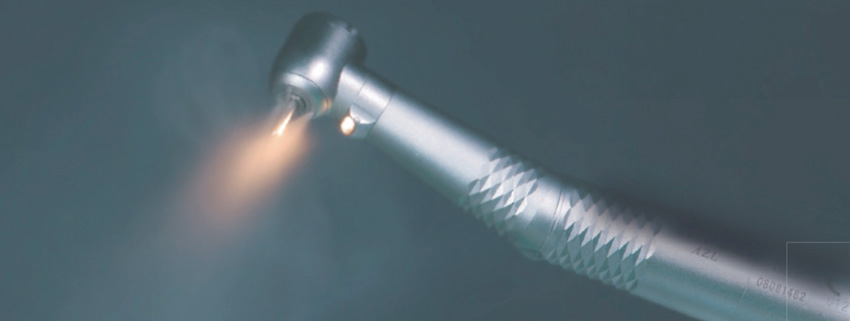

  • Optic fiber: Optic fiber imports transmit light which illumination25000 lx ensures brightness at preparation area. The function will not decline even if sterilized by high temperature and pressure.
  • Durable light: Imported durable bulb which voltage is 3.3V±0.1V, longevity_70hours.
  • Easy headling : Anticorrosion and diamond shaped groove are easy for cleaning, and human nature design for easy handling.
  • Convenient : Adopt push button structure, quick bur change.
  • Sooth operation : No vibration in high speed revolution, dynamic balance volume ≤ 150ug, Dynamic pulse rate ≤ 0.015mm

Handpiece series

Fiber optic high speed handpiece

Bush button, 3 points water spray, double air tracks, anti-reaction system, quick coupling, light guild vitreous, illumination >25000LUX.LED

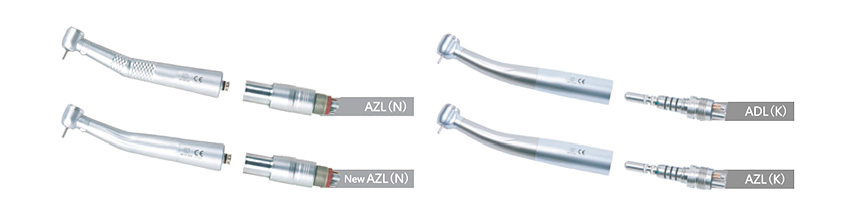

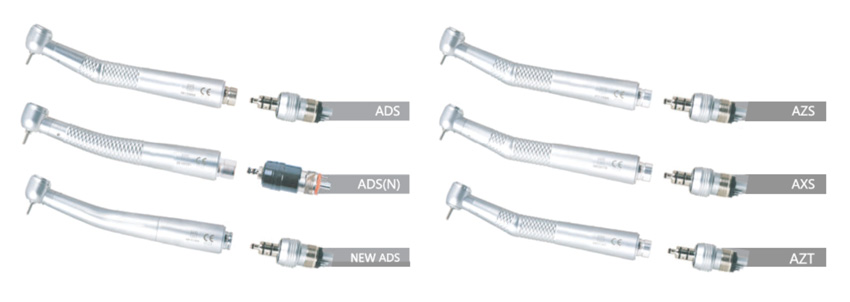

Series A high speed handpiece:

Three types Standard head-AD series, Medium head-AZ series, Mini head-AX series.Ball bearing, 310 000rmp, 360° rotable, quick coupling with build-in anti-retraction system.(2-holeand 4 hole available)

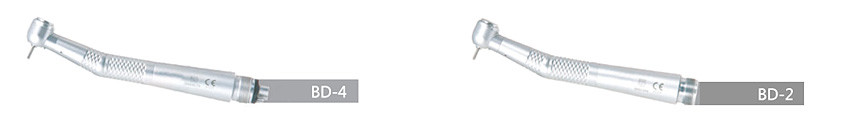

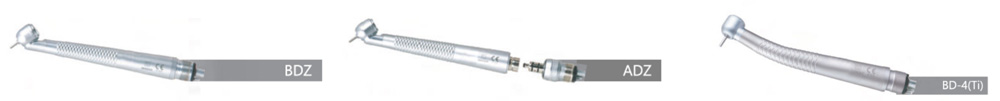

Series B high speed handpiece:

Contra angle block teeth high speed handpiece

  • Using for the block teeth operation.
  • High quality, low noise, long life, strong power
  • Germany imported ceramic bearings
  • The titanium surface
  • Tread design for doctor operation
  • According to the ergonomic design, the operation more precise
  • The lightweight body and a reasonable point of the center of gravity, doctors greatly reduce wrist fatigue
  • Increase the head thick 0.2mm anti-bump design to prevent knock or broken when cleaned or operation
  • NEW Turbo charging system: According to aerodynamic principles (reduced press and increase speed), the new BD adopts the optimized pipeline design for improve the speed of the wind wheel rotating line. The curved design of the wind wheel, increasing the force area, enhanced high-speed dynamic torque, After tested, the new BD is better than the imported goods.

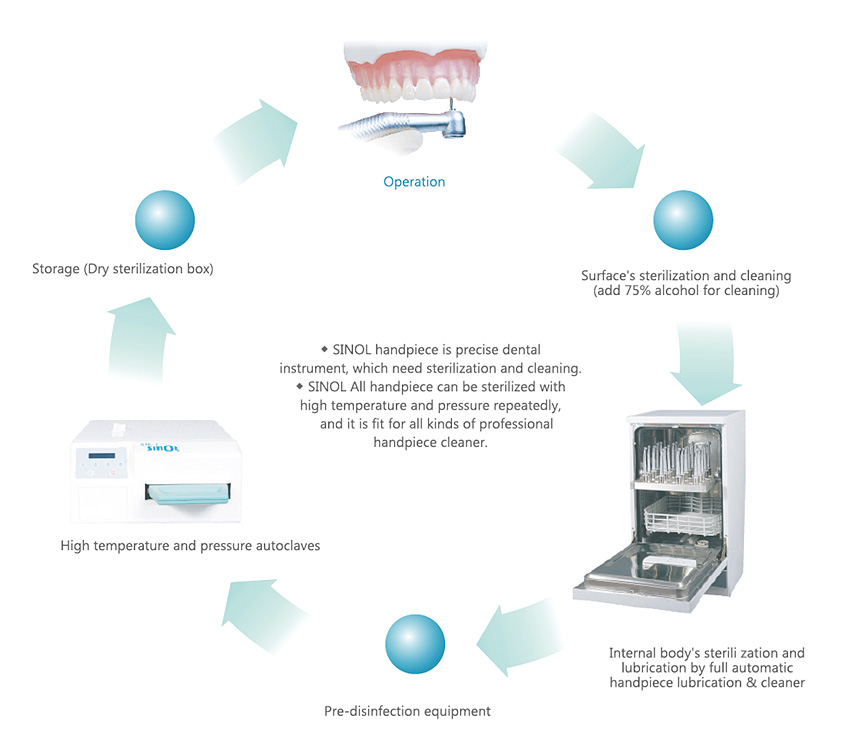

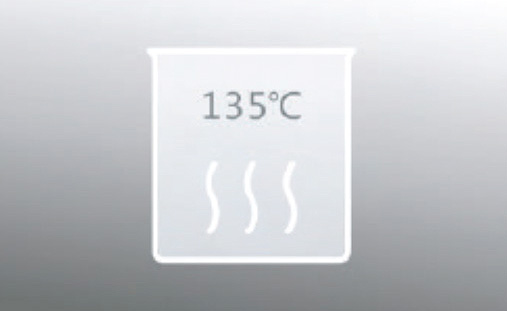

Sterilization and cleaning chart of handpiece

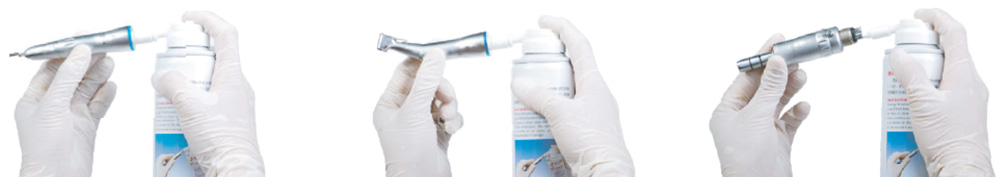

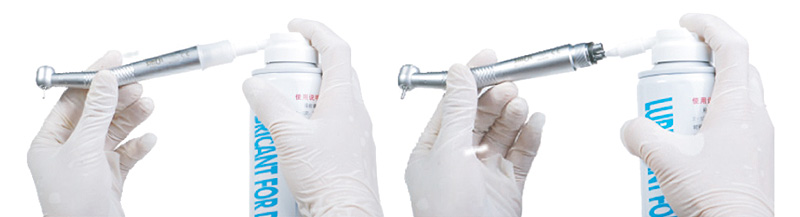

Lubrication Method

Lubrication Method for high speed handpiece :

Lubrication for Maintenance

  • Revolution can not reach the standard
  • Vibration, high noise.
  • Vibrated bearing
  • Dismount the handpiece from connecting pipe.
  • Install different handpiece's lubricate nozzle on the spray nozzlewell to avoid leak lubrication.
  • Insert nozzle on back of handpiece body or air inlet ensure lubrication's well spray through handpiece until the clean lubrication comes out.

Summarize: All the handpiece need sterilization and lubrication after operation or using it surpass 30 minutes to prolong handpiece's life.

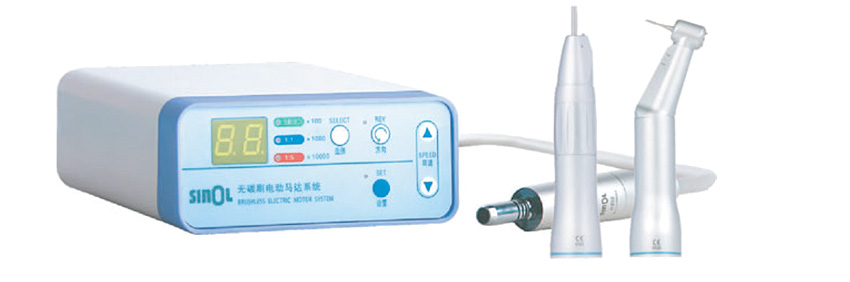

Straight handpiece ( contra handpiece)

  • Dismount straight handpiece( contra handpiece) from motor.
  • Install E nozzle on the lubricant.
  • Insert E nozzle on back of straight handpiece ( contra handpiece) to spray 2-3 seconds till through out of head. Stop spray until clean lubrication comes out.
  • Keep Straight handpiece( contra handpiece) stand for a while, and then connect with the motor until there is no lubrication in turbine.

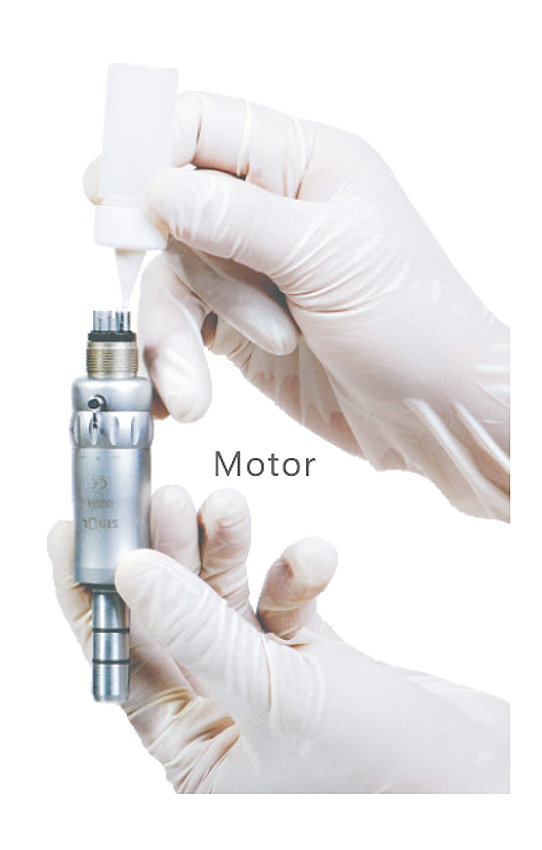

Motor

  • Keep front inserted turbine down, push and spray the lubricate for 4-5 drops or aim at air inlet of motor to spray 2-3 seconds.
  • Connect the motor with turbine to spin 1-2 minutes till finish lubrication.
  • Wipe the redundant lubrication with tissue to finish lubrication.

Cooling drainage water solution

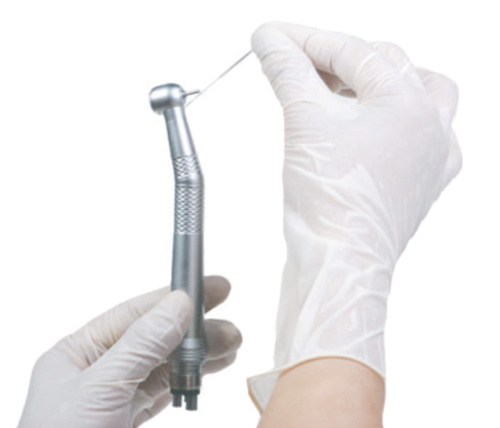

Check connecting pipe water system, and connect quick couplet to avoid blocks in turbine, clean it with probe. If it can not be solved, return to SINOL for maintenance. Side spray type is a kind of mixture spay in turbine, appropriate cooling air pressure is adjusted ahead.

Trouble solution for chucking system of high speed handpiece

Chucking system's trouble is caused by block in chucking head and pay attention to following can avoid chucking head broken.

Bur Selection

  • Make sure revolution provide by the manufacture when select bur.
  • Damage bur will drop off from head which shorten the handpiece life.
  • Mini head connected with short handle bur should be suggested because long handle bur will drop off easily.

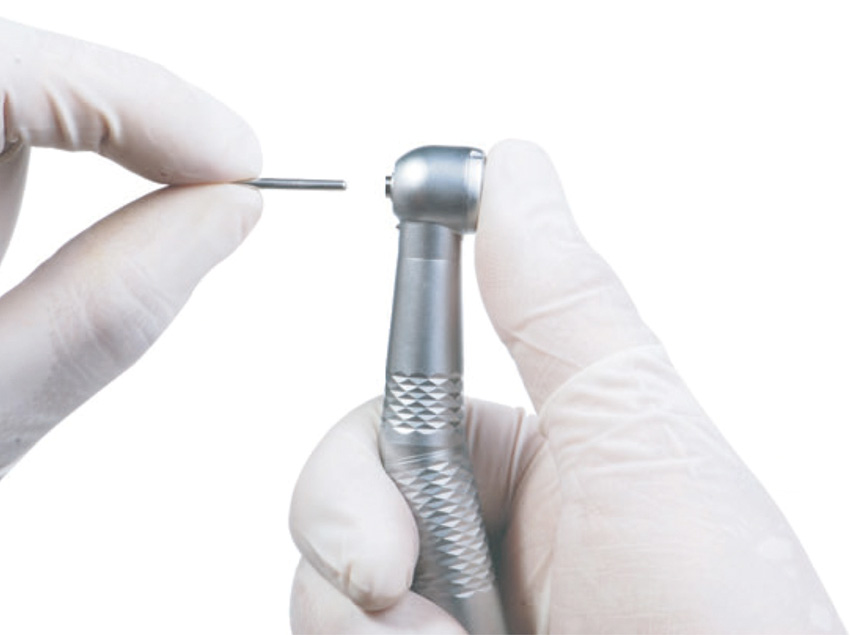

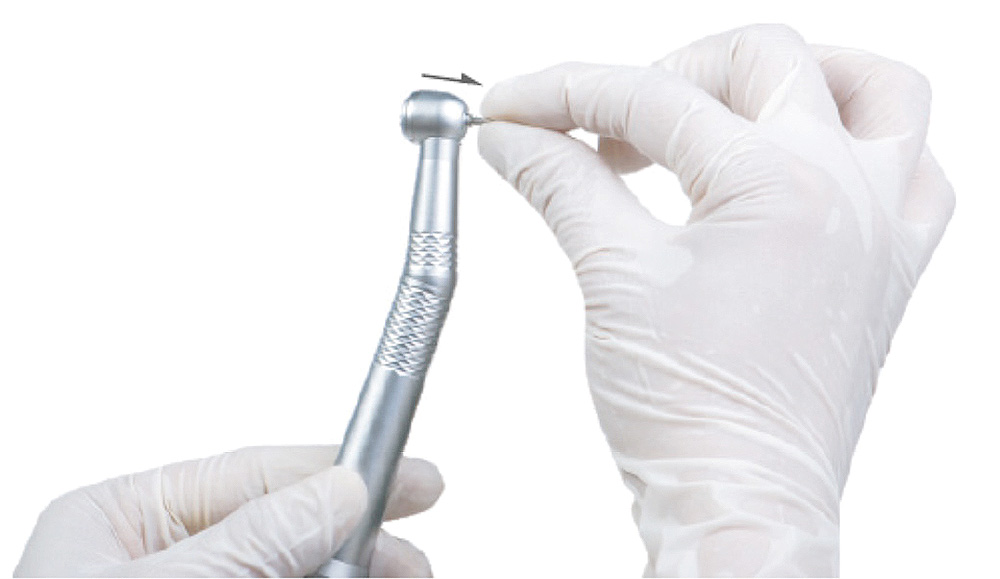

Bur installation

  • Install bur after cleaning blocks avoiding flexibility of chucking system.
  • Insert bur firmly till it can not be pull.

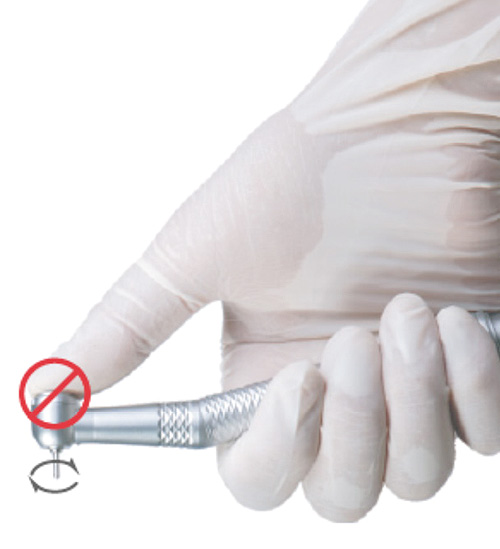

  • The handpiece broke caused by spindle contact with push button, which is difficult in open the push button. So, press the push button will result in damage of button inside and what worse is that you will burn when replace bur in hanadpiece working.

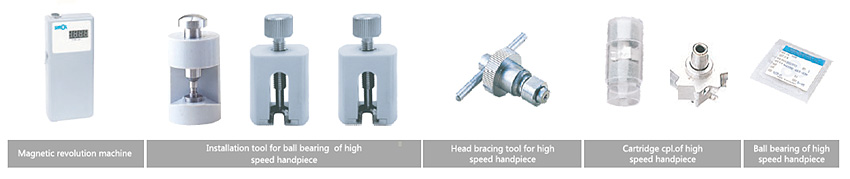

Maintaining Tools

Technical Specification
