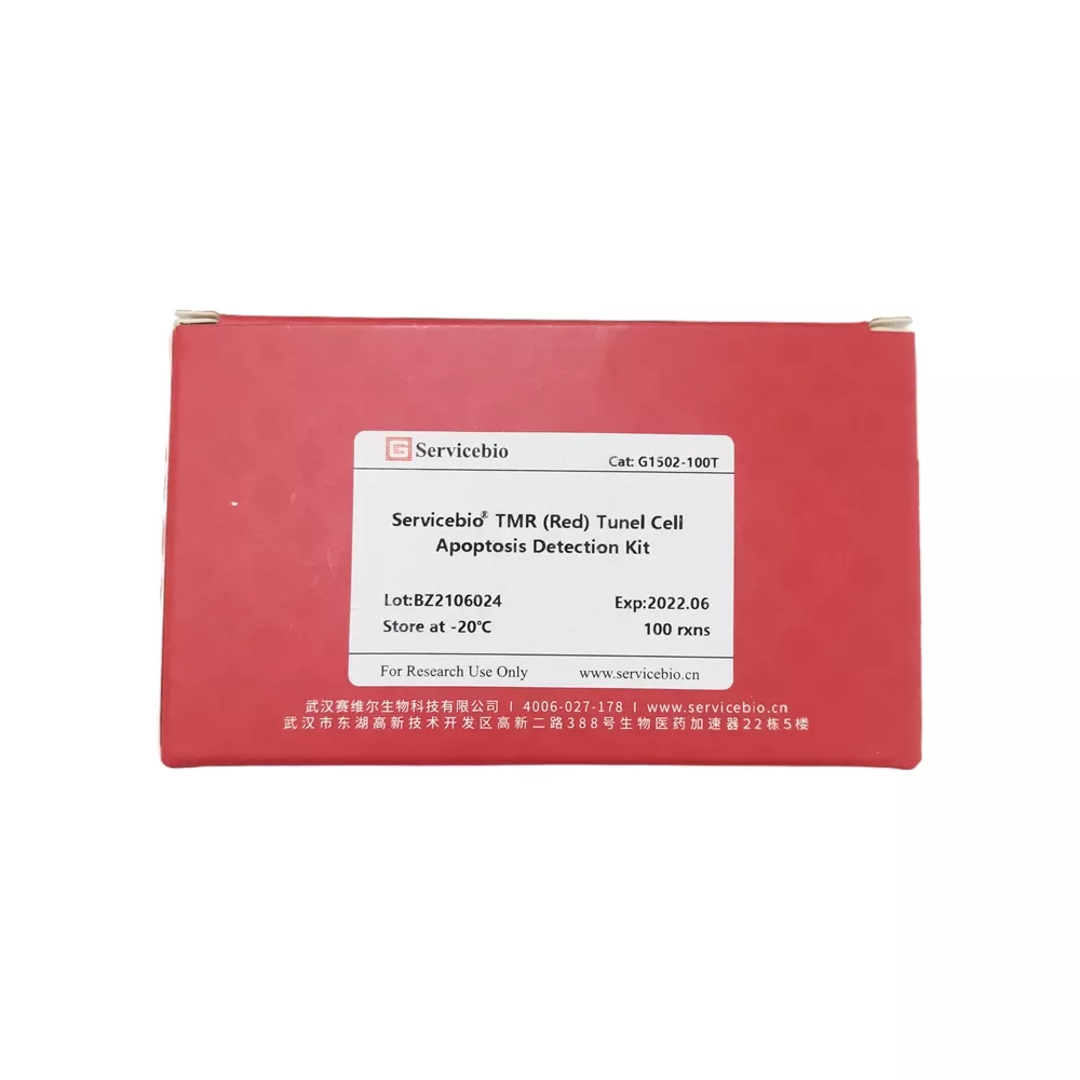

G1502-50T / 100T TMR Red Tunel Cell Apoptosis Detection Kit for Nuclear DNA

The breakage of chromosomal DNA in apoptosis is a gradual process. Chromosomal DNA is first degraded into large fragments of 50-300 kb under the action of endogenous nucleases, and then about 30% of chromosomal DNA is under the action of Ca2+ and Mg2+-dependent endonucleases. They are randomly cut to form 180-200 bp nucleosomal DNA polymer. Therefore, in the late stage of apoptosis, DNA will be degraded into 180-200 bp fragments, and a large number of 3'-OH ends will be exposed on the broken genomic DNA. Terminal Deoxynucleotidyl Transferase (TdT) is a template-independent DNA polymerase that can catalyze the binding of deoxynucleotides to the 3'-OH ends of broken DNA molecules. Therefore, TUNEL (TdT mediated dUTP Nick End Labeling) cell apoptosis detection kit can be used to detect the nuclear DNA breakage of tissue cells in the late stage of apoptosis. The principle is that under the action of TdT enzyme, tetramethyl-Rhodamine-dUTP (Tetramethyl-Rhodamine-5-dUTP, TMR-5-dUTP) is incorporated into the 3´-OH end exposed when genomic DNA is broken, so that it can be Detect with a fluorescence microscope or flow cytometer (TMR excitation 520-560 nm, emission 570-620 nm). This kit has a wide range of applications and is suitable for the detection of cell apoptosis in paraffin tissue sections, frozen tissue sections, cell slides, cell smears, etc.

Quantity

Add to cart

Share :

Product Variation:

Item code Description Volume
G1502-50T TMR (red) Tunel Cell Apoptosis Detection Kit 50T
G1502-100T 100T



Package Contents:

Item code Description G1502-50T G1502-100T
G1502-1 Recombinant TdT Enzyme 50µL 2x50µL
G1502-2 TMR-5-dUTP Labeling Mix 250µL 2x250µL
G1502-3 Equilibration Buffer 5x1mL 10x1mL
G1502-4 Proteinase K (200 µg/mL) 1mL 2x1mL
  User Manual 1pc 1pc

Technical Specification

Storage and transportation

Ice bag (wet ice) transportation;

This kit is stored at -20°C. TMR-5-dUTP Labeling Mix should be stored at -20°C in the dark. The validity period is 12 months.



Preparation before experiment:

  1. PBS phosphate buffer (G0002 or G4202 is recommended);
  2. Fixing solution: 4% paraformaldehyde dissolved in PBS or other buffer system, pH 7.4 (G1101 is recommended);
  3. Membrane breaking solution: 0.1% Triton X-100 dissolved in 0.1% sodium citrate (G1204 is recommended);
  4. Prepare PBS containing 0.2% Triton X-100; Prepare PBS containing 0.1% Triton X-100 and 5 mg/mL BSA;
  5. For nucleus staining, you need to bring your own DAPI (2 µg/mL) or PI (1 µg/mL) (G1012, G1021 are recommended);
  6. If you need a positive control experiment, you need to bring your own DNase I (G3342 is recommended)
  7. If using a flow cytometer, prepare your own PI stain (G1021 recommended) and RNase A (DNase free) (G3413 recommended);
  8. Please wear lab coat and disposable gloves during operation.



Operation Steps:

I. Sample preparation



A. Paraffin-embedded tissue sections

  1. Soak the paraffin tissue section in xylene at room temperature for 5-10 min, repeat 2-3 times; then soak in absolute ethanol for 5 min, repeat twice; finally, use gradient ethanol (85%, 75%, double steam) Water) soak each time once, each time for 5 min;
  2. Gently rinse the section with PBS and remove excess liquid around the sample; use a histochemical pen to draw a small circle with a distance of 2-3 mm from the tissue along the outer contour of the tissue to facilitate downstream permeability processing and balance marking operations; During the experiment, do not let the sample dry, and put the processed sample in a humid box to keep the sample moist;
  3. Prepare Proteinase K working solution: Dilute Proteinase K (200 µg/mL) stock solution with PBS as the diluent at a ratio of 1:9 to make the final concentration of 20 μg/mL;
  4. Add 100 μL of the above-mentioned Proteinase K working solution to each sample to make it all covered, and incubate at 37°C for 20 min;
    (Note: Proteinase K treatment is mainly helpful for the permeation of staining reagents in the subsequent steps of tissues and cells. Too long or short incubation time will affect the subsequent labeling efficiency. In order to obtain better results, the incubation time of Proteinase K can be optimized)
  5. Infiltrate and clean the sample with PBS solution 3 times, 5 minutes each time (Proteinase K needs to be washed clean, otherwise it will interfere with the subsequent labeling reaction), and place the processed sample in a humid box to keep the sample moist;
  6. (Optional step) Remove the excess liquid on the sample, add an appropriate amount of rupture fluid (0.1% Triton X-100 in 0.1% sodium citrate) to the tissue, fully infiltrate the tissue, and treat it at room temperature for 20 minutes; After the rupture treatment is completed, the sample is rinsed with PBS solution 3 times for 5 minutes each time; the treated sample is placed in a humid box to keep the sample moist.





B. Tissue frozen section

  1. Immerse the slides in 4% paraformaldehyde solution (dissolved in PBS) for fixation, and incubate for 10-15 min at room temperature;
  2. After the film is taken out of the fixative, let it dry naturally in a fume hood;
  3. Rinse the slides in pure water or PBS to remove the fixative solution remaining on the slides;
  4. Use a histochemical pen to draw a small circle 2-3 mm apart from the tissue along the periphery of the tissue to facilitate downstream permeability processing and balance marking operations; during the experiment, do not let the sample dry, and the processed sample Keep the sample moist in a humid box;
  5. Prepare Proteinase K working solution: Dilute Proteinase K (200 µg/mL) stock solution with PBS as the diluent at a ratio of 1:9 to make the final concentration of 20 μg/mL;
  6. Add 100 μL of the above-mentioned Proteinase K working solution dropwise to each sample so that it is completely covered, and incubate at room temperature for 10 min;
    (Note: Proteinase K treatment mainly helps the tissues and cells to permeate the staining reagents in the subsequent steps. If the incubation time is too long or too short, it will affect the subsequent labeling efficiency. If no better results are obtained, the incubation time of Proteinase K may need to be optimized)
  7. Rinse the sample 2-3 times with PBS solution to remove excess liquid (Proteinase K needs to be washed clean, otherwise it will interfere with the subsequent labeling reaction), and place the processed sample in a humid box to keep the sample moist;
  8. (Optional step) Add an appropriate amount of rupture solution (0.1% Triton X-100 dissolved in 0.1% sodium citrate) to the tissue, fully infiltrate the tissue, and treat it at room temperature for 20 minutes. The same is true after the rupture treatment is completed. Rinse the sample with PBS solution to remove excess liquid, and place the processed sample in a humid box to keep the sample moist.



C. Cell climbing film

  1. Cultivate adherent cells on the Lab-Tek Chamber Slides. After the apoptosis induction treatment, gently rinse the slides twice with PBS;
  2. Add an appropriate amount of 4% paraformaldehyde solution (dissolved in PBS) to each slide chamber for fixation, and incubate for 20 min at room temperature;
  3. Remove the fixative, add PBS and wash 3 times, 5 min each time;
  4. Each sample is immersed in 0.2% Triton X-100 solution prepared in PBS, and incubated for 5 min at room temperature for permeabilization;
  5. Immerse and clean the sample 2-3 times in an open beaker filled with PBS solution;
  6. Gently remove excess liquid, and carefully blot the liquid around the sample on the slide with filter paper. The processed sample is placed in a humid box to keep the sample moist.



D. Cell smear

  1. Resuspend the cells in PBS at a concentration of about 2×107 cells/mL, pipette 50-100 μL of cell suspension onto the anti-drop glass slide, and use a clean glass slide to gently spread the cell suspension;
  2. Immerse the slides in a staining jar containing 4% freshly prepared paraformaldehyde in PBS, fix the cells, and place them at 4°C for 25 min;
  3. Immerse the slide in PBS, leave it at room temperature for 5 minutes, and then repeat once;
  4. Gently remove the excess liquid, and carefully blot the excess liquid around the sample on the slide with filter paper. Use a histochemical pen to draw a small circle along the periphery of the cell to facilitate downstream permeability processing and balance marking operations. During the experiment, Do not let the sample dry;
  5. Each sample is immersed in 0.2% Triton X-100 solution prepared in PBS, and incubated at room temperature for 5 minutes for permeabilization;
  6. Immerse and clean the sample 2-3 times in an open beaker filled with PBS solution;
  7. Gently remove excess liquid, and use filter paper to carefully absorb the liquid around the sample on the slide. The processed sample is placed in a humid box to keep the sample moist.



II. DNase I treatment positive control experiment (optional step)

After the sample is permeabilized, treat the sample with DNase I (G3342 recommended) to prepare a positive control.

  1. Add 100 μL 1×DNase I Buffer (preparation method: take 10 μL 10×DNase I Buffer, then add 90 μL deionized water to mix) dropwise onto the permeated sample, and incubate at room temperature for 5 min;
  2. Gently remove excess liquid and add 100 μL of working solution containing DNase I (20 U/mL) (preparation method: take 10 μL 10×DNase I Buffer, then add 2 μL DNase I, and then add 88 μL deionized water Mix), incubate at room temperature for 10 min;
  3. Gently remove excess liquid, and wash the slides 3-4 times in a staining jar filled with PBS.
    (Note: A separate staining tank must be used for the positive control slides, otherwise the residual DNase I on the positive control slides may introduce high background on the experimental slides)



III. marking and testing

  1. Equilibration: Add 50 μL Equilibration Buffer to each sample to cover the sample area to be tested, and incubate at room temperature for 10 min;
  2. Preparation of labeling solution: Thaw TMR-5-dUTP Labeling Mix and Equilibration Buffer on ice, and follow Recombinant TdT enzyme: TMR-5-dUTP Labeling Mix: Equilibration Buffer = 1 µL: 5 µL: 50 µL (1:5 : 50) Mix the TdT incubation buffer that is sufficient for all experiments. The volume of reagents used in specific experiments can be adjusted in an appropriate proportion according to the size of the slide;
  3. Negative control system: prepare a control TdT incubation buffer without Recombinant TdT enzyme and replace it with ddH2O;
  4. Labeling: try to remove the balanced Equilibration Buffer, and then add 56 μL TdT incubation buffer to each tissue sample, and incubate at 37°C for 1 h; be careful not to dry the slides, and the slides should be protected from light;
  5. Immediately rinse the tissue sample with PBS for 4 times, 5 min each time;
  6. Gently wipe off the PBS solution around the sample with filter paper;
  7. Nuclear staining: the sample is stained in the staining tank, and the slide is immersed in the staining tank containing DAPI solution (freshly prepared and diluted with PBS) in the dark, and left at room temperature for 8 minutes;
  8. Mounting the slide: After the sample is stained, wash the tissue sample 3 times with PBS for 5 minutes each time, then gently remove the excess liquid, and add dropwise anti-fluorescence quenching mounting tablets (recommended G1401) to mount the slide;
  9. Microscopic examination: Analyze the sample immediately under a fluorescence microscope. The slide should be protected from light. DAPI can stain both apoptotic and non-apoptotic cells blue, and TMR-5- is only present in the apoptotic nucleus. Red fluorescence localized by dUTP incorporation.



IV. Use flow cytometry to detect suspension cells

  1. Wash the cells to be tested twice with PBS, centrifuge at 4°C (500 g) and resuspend in 500 µL PBS;
  2. Fixation: Add 5 mL of 1% paraformaldehyde solution prepared with PBS to the sample, fix the cells, and place on ice for 20 minutes;
  3. Centrifuge the cells at 300 g for 10 min at 4°C, remove the supernatant and resuspend them twice in 5 mL PBS, and finally resuspend the cells in 500 µL PBS;
  4. Permeabilization: Add 5 mL of 70% ethanol pre-cooled on ice to the sample and incubate at -20°C for 4 hours to permeate the cells;
    (Note: The cells can also be permeabilized with 0.2% Triton X-100 in PBS solution at room temperature for 5 minutes)
  5. After centrifugation at 300 g for 10 min, the cells were resuspended in 5 mL PBS, and resuspended in 1 mL PBS after centrifugation;
  6. Equilibration: Transfer about 2×106 cells to a 1.5 mL microcentrifuge tube, centrifuge at 300 g for 10 min, remove the supernatant, and resuspend in 80 μL Equilibration Buffer, and incubate at room temperature for 5 min;
  7. Preparation of labeling solution: Thaw TMR-5-dUTP Labeling Mix and Equilibration Buffer on ice, and follow Recombinant TdT enzyme: TMR-5-dUTP Labeling Mix: Equilibration Buffer = 1 µL: 5 µL: 50 µL (1:5 : 50) Mix the TdT incubation buffer that is sufficient for all experiments and optional positive control reactions;
  8. Labeling: The cells were centrifuged at 300 g for 10 min, the supernatant was removed and the pellet was resuspended in 56 μL TdT incubation buffer, and incubated at 37°C for 1 h, protected from light. Gently resuspend the cells with a micropipette every 15 minutes;
  9. After the reaction is complete, add 1 mL of 20 mM EDTA to stop the reaction, and gently mix with a micropipette;
  10. Centrifuge at 300 g for 10 min, remove the supernatant and resuspend the pellet in 1 mL of 0.1% Triton X-100 solution prepared with PBS, which contains 5 mg/mL BSA, and wash twice;
  11. Nuclear staining: Centrifuge at 300 g for 10 min, remove the supernatant and resuspend the cell pellet in 0.5 mL DAPI solution containing 250 μg DNase-free RNase A. Incubate the cells for 30 min at room temperature in the dark;
  12. On-board detection: Flow cytometry analysis of cells, DAPI can stain both apoptotic and non-apoptotic nuclei in blue, and only in the apoptotic nuclei can there be TMR-5-dUTP incorporation and localized red Fluorescence.



Attention:

This product is for scientific research purposes only, not for clinical diagnosis!
