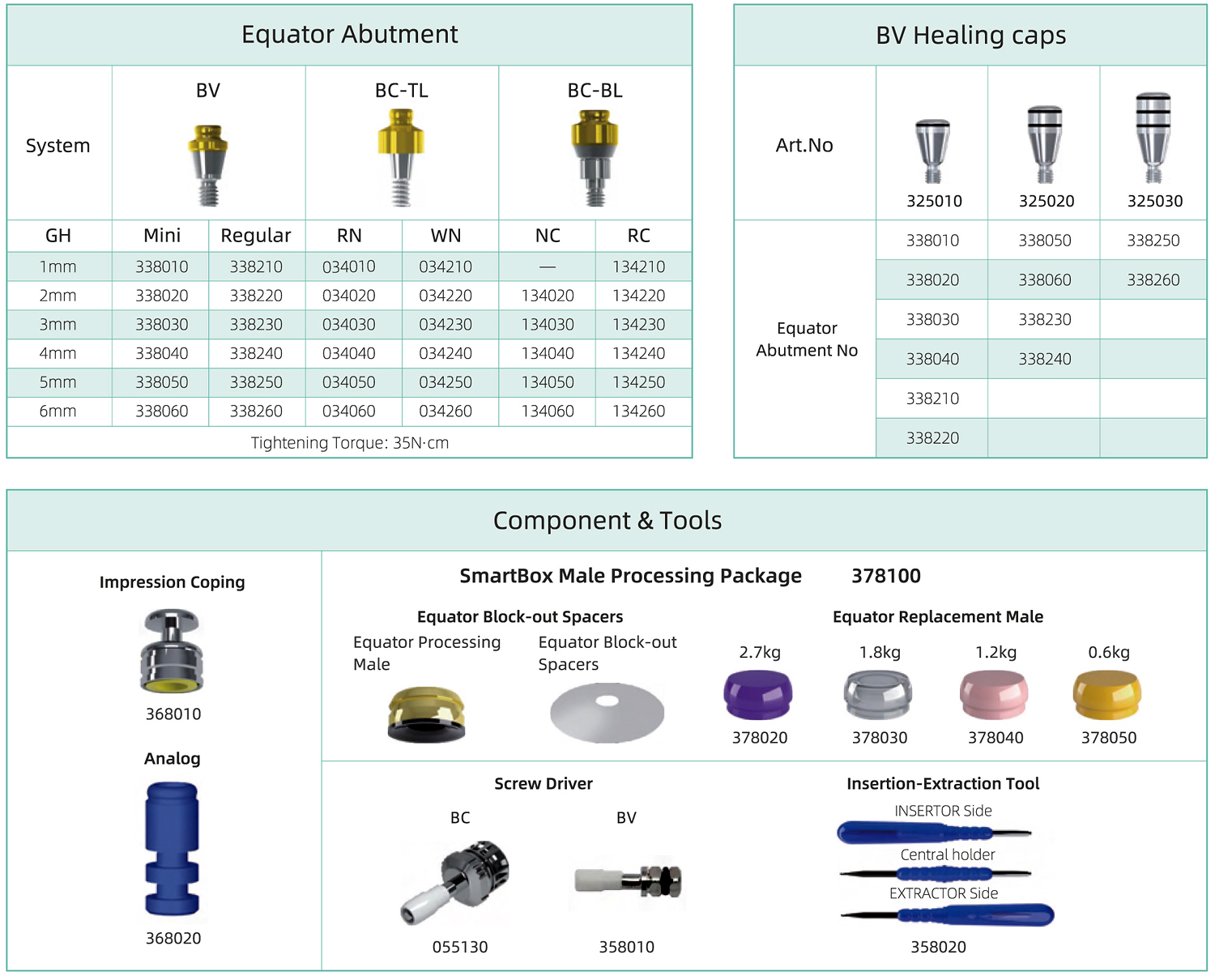

EQUATOR ABUTMENT - Implant BV Tapered Bone Level Series

Smallest attachment on the market Better aesthetic result Severe implant divergency solutions.

Smart Box

  • Correct divergency up to 50 degree

Low profile titanium implant abutment

  • Gingival heights available :1mm up to 6mm
  • Available on all the implement platform and connections

Retentive Caps

  • Different elastic retention degrees.
  • Different diameters.
  • Allows for connections of implant divergency.
  • Shock absorbing system.
  • Trauma free insertion of prosthesis.

Quantity

Add to cart

Share :

Overdenture Solutions

Smallest attachment on the market Better aesthetic result Severe implant divergency solutions.

Smart Box

  • Correct divergency up to 50 degree

Low profile titanium implant abutment

  • Gingival heights available :1mm up to 6mm
  • Available on all the implement platform and connections

Retentive Caps

  • Different elastic retention degrees.
  • Different diameters.
  • Allows for connections of implant divergency.
  • Shock absorbing system.
  • Trauma free insertion of prosthesis.

Directions for use

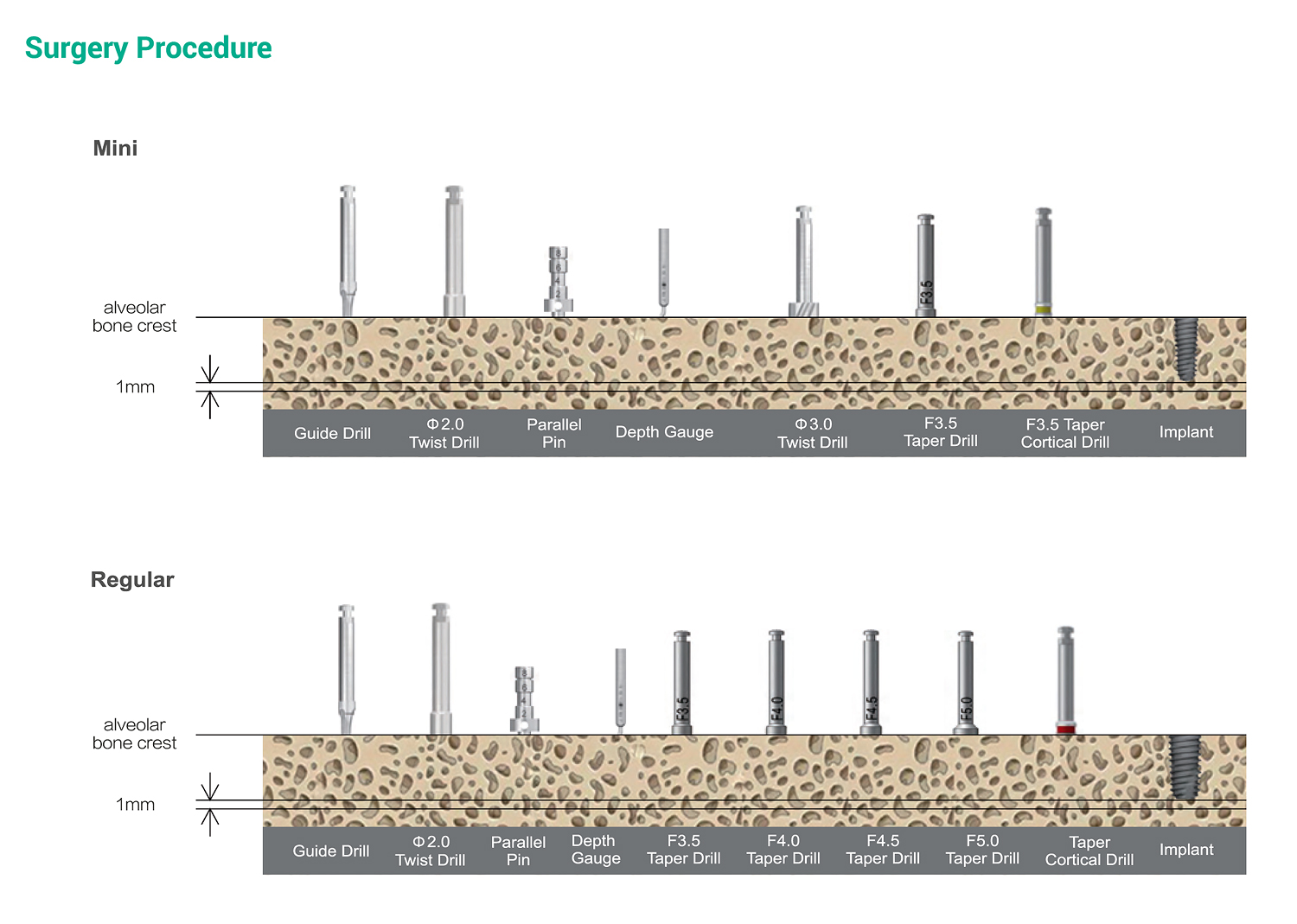

  • It is an operation guideline for implanting implants in the up and down alveolar bone.
  • Using a lance drill pierce the cortical bone and determine the implant position.
  • Use the same length twist drill as the implant code. Accompany the drilling with irrigation andpumping in order to keep the heat down from friction.
  • After every twist drilling, use depth gauge check the hole depth and floor condition, use parallel pin check orientation.

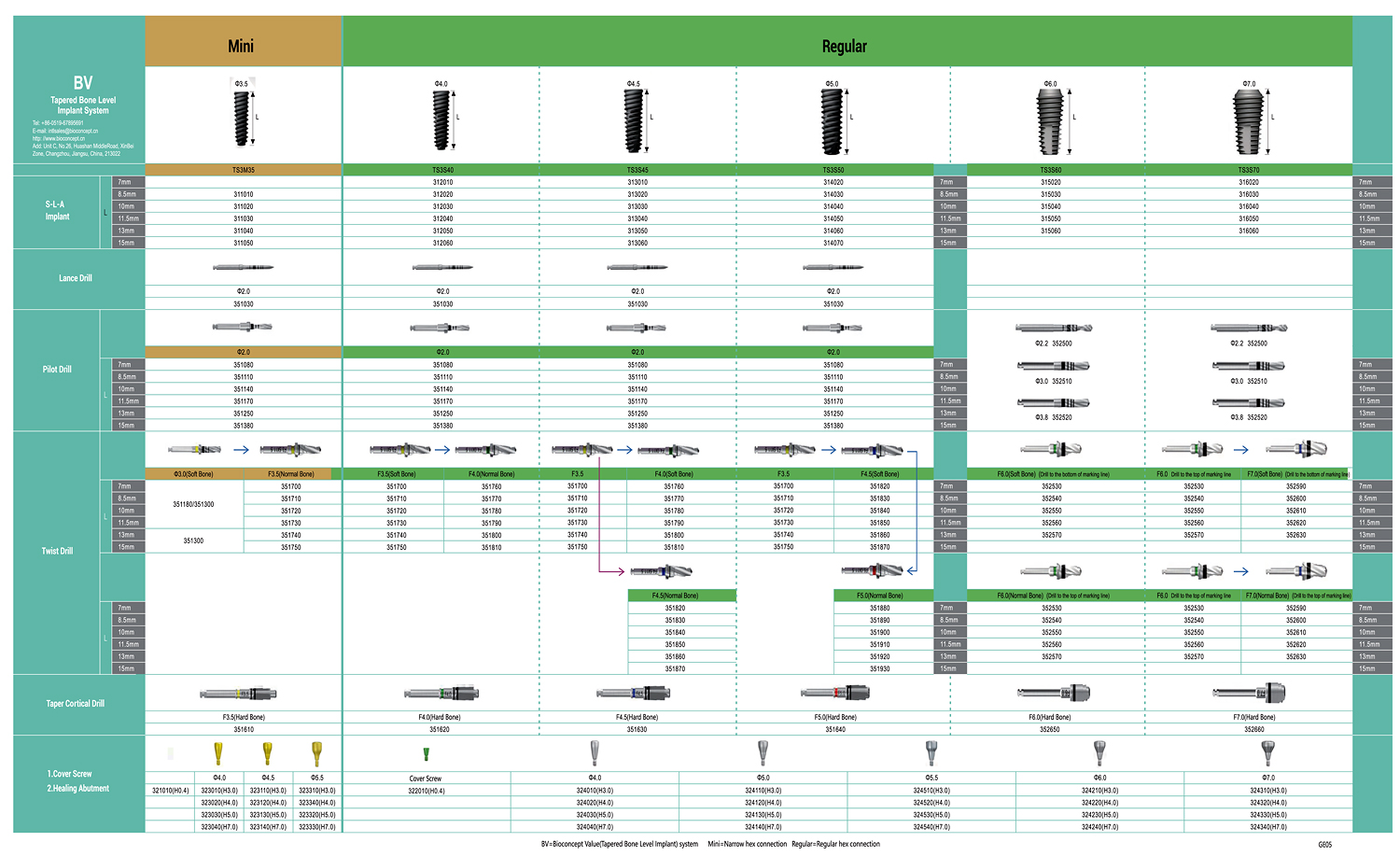

  • Processing exclusive use taper drill for implant diameter and length (03.5 implant: F3.5, 04.0 implant: F3.5—¦F4.0, 04.5 implant: F3.5—, F4.0—>F4.5, 05.0 implant: F3.5—>F4.5—>F5.0, 06.0 implant: F6.0,07.0 implant: F6.0—>F7.0).
  • Use taper cortical drills for implant diameter and length after formation of final drill hole in case of more than hard bone.
  • Finally, the fixture is implanted.

Cautions

  • When drilling, move the hand piece perpendicularly up and down in a pumping motion.
  • To reduce the friction during drilling, provide ample cooling with pre-cooled (5 °C, 41 °F) sterile saline solution.
  • The drilling speed must be maintained at 800-1000rpm, the Cortical drilling speed must be maintained at 300-400rpm, and the hole must be created in advance.
  • ental implant placement should be accomplished at very low speed (15 rpm) or manually. -Recommended number of use: drill < 50 times.
  • Recommended number of use: driver < 50 times, the maximum allowable torque of 1.2hex driver is 35Ncm.
