EOM-200S / 200T / 200SB / 200TB Veterinary Operating Microscope

EOM Series Veterinary Operaying Microscopes using fiber-optic cable for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be used for micro-operation in ENT, dentistry, ophthalmology, gynecology and surgery.

Quantity

Add to cart

Share :

Applications:
EOM-200S, EOM-200SB: Clinic applications for ENT
EOM-200T, EOM-200TB: Clinic applications for Dentistry and Ophthalmology

Technical Specification

Model EOM-200S EOM-200T EOM-200SB EOM-200TB
Binocular observation Straight 45º Tilted Straight 45º Tilted
Observation magnification 6X
Interpupillary distance 50mm-80mm
Diopter

±5D
Magnification changer 3-step magnification change: 0.6X, 1X, 1.6X
Focal length of objective 2 objectives: F=200mm, 300mm
Total magnification 3X-12X
Linear field 60.8-15.8mm
Line focusing range 10mm
Filter Built-in green and yellow filters
Illumination system Coaxial illumination with cold light source fiber-op??c cable, brightness adjustable
Lamp 21V 150W halogen lamp (10W LED optional)
Power supply AC 220V/50Hz, or 110V/60Hz
Beamsplitter No 50:50 Beamsplitter

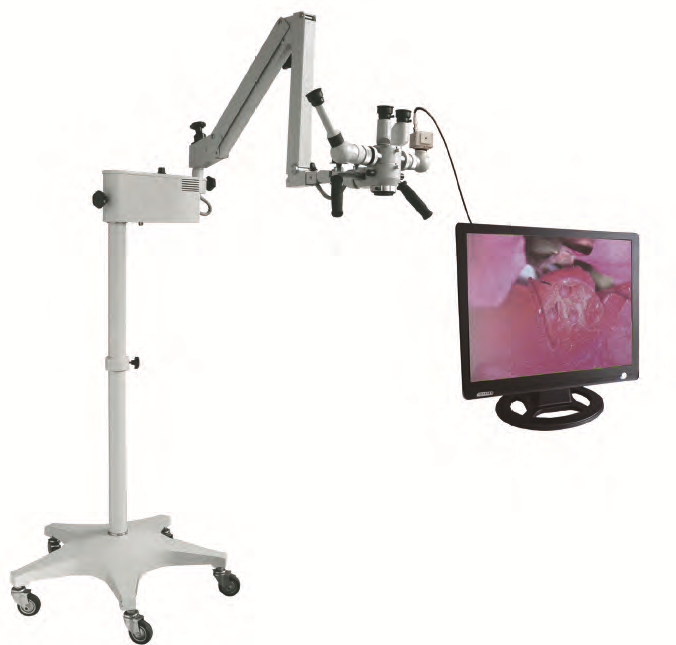

TV adapter C-mount 1/3 inch CCD camera attachable
Balancing arm With 2-part arm and tablemount With 2-part arm, counterweight adjustable and can be locked. With floor stand.
Optional Objective F=250mm & F=400mm, Wall mount Demonstrator, Camera, Photo adapter, Monitor, Objective F=250mm & F=400mm, Wall mount, Table mount
