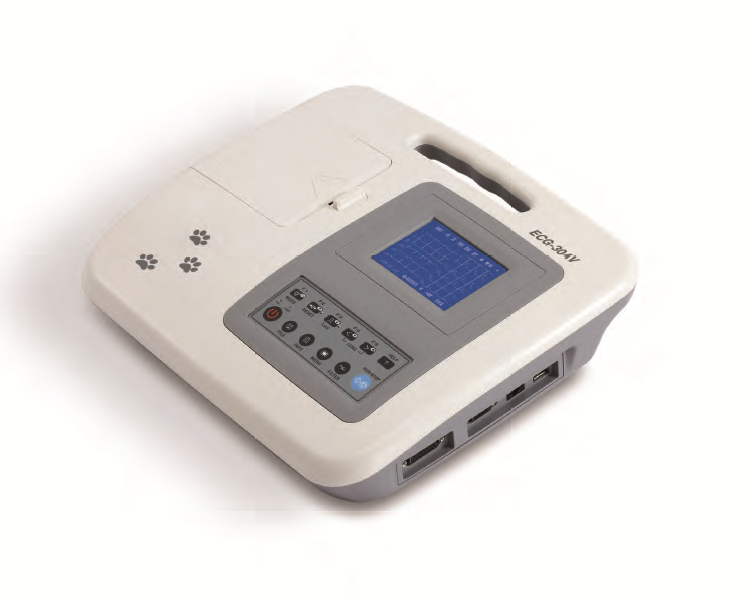

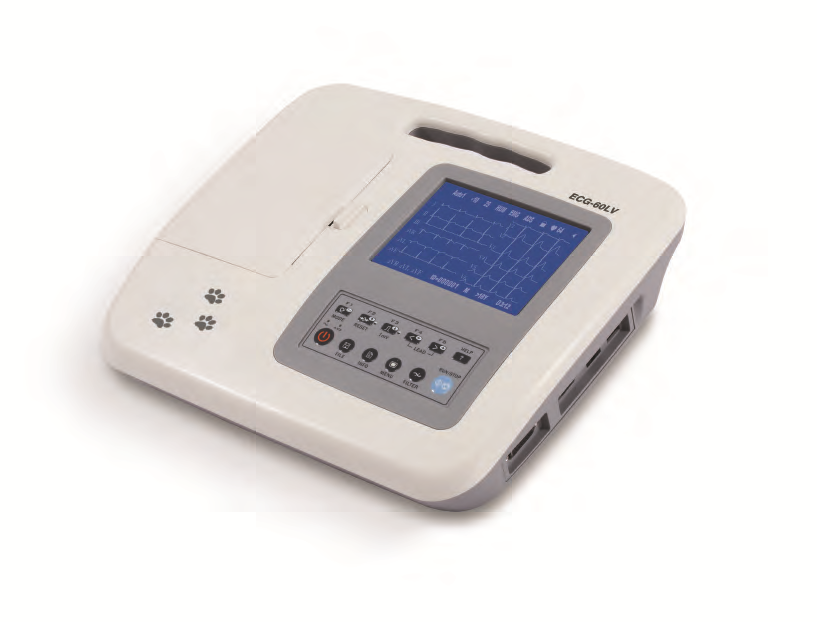

ECG-10/30AV / ECG-60LV Portable Veterinary ECG Machine

Feature:

  1. Automatic baseline adjustment for optimum printing
  2. Pre-10 seconds preview
  3. Cat & dog software package
  4. 7-Lead simultaneous acquisition
  5. Operation modes: AUTO, AUTO 2, MAN, and ANA
  6. Filters: HUM, EMG, ADS
  7. Power supply: AD, DC, Battery
  8. Lead modes: Standard and Cabrera
  9. Data storage: 12 ECG Files in main unit, 250 ECG Files to SD card
  10. Compact & light weight
  11. Lead off detection
  12. Low battery indicator

Quantity

Add to cart

Share :

Standard:
ECG Main unit, ECG cable, veterinary electrodes (clip type), Dust cover, Rechargeable battery, Thermal Paper, Paper roller, Screwdriver.


Optional:
ECG workstation, USB function board, SD card, Aluminum trolley, Carrying bag.

Technical Specification

Safety Standard: IEC Class I, type CF
Acquisition Mode: 7 lead acquisition simultaneously
Input Circuit: Floating, protection against defibrillator and pacemaker
A/D Converter: 12 bit
Time Constant: >3.2s
Frequency Response: 0.05Hz ~ 165Hz
Sensitivity: 2.5, 5, 10, 20, 40 (mm/mV±2%), Auto
Input Impedance: ≥50MΩ
Input Circuit Current: ≤50nA
Calibration Voltage: 1mV±2%
Noise Level: <15μVp-p
Anti Baseline Drift : Automatic
Filter: EMG Filter: 25Hz~45Hz(-3dB)
Filter: ADS Filter: Auto(0.15-0.50Hz)
Filter: HUM Filter: 50Hz/60Hz (-20dB)
CMRR: >100dB
Patient Current Leakage: <10μA
Paper Speed: 6.25/12.5/25/50mm/s
Recording Paper: 50mm(width), 20m/30m(length), roll (ECG-10AV)
Recording Paper: 63mm(width), 20m/30m(length), roll (ECG-30AV)
Recording Paper: 112mm(width), 20m/30m(length), roll (ECG-60LV)
Power Supply: AC: 110/220V, 50/60Hz
Power Supply: DC: 12V, built-in rechargeable battery
Dimension: 295mmx260mmx60mm (Main unit of ECG-10AV)
Dimension: 415mmx195mmx380mm (Carton of ECG-10AV)
Dimension: 345mmx300mmx80mm (Main unit of ECG-30AV)
Dimension: 415mmx195mmx380mm(Carton of ECG-30AV)
Dimension: 345mmx300mmx80mm (Main unit of ECG-60LV)
Dimension: 415mmx195mmx380mm(Carton of ECG-60LV)
Net Weight: 2.3kgs (ECG-10AV), 2.5kgs (ECG-30AV/ECG-60LV)
Gross Weight: 4.5kgs

ECG Function Sheet:

Model Channel Auto Measurement Auto Analysis LCD Size Waveforms Paper Width Info File Help RS232 USB SD Card
ECG-10AV 1-Channel

Yes

Yes

 3.8" 7-ch 50mm

Yes

Yes

Yes

Yes

 Option Option
ECG-30AV 3-Channel Yes Yes 3.8" 7-ch 63mm Yes Yes Yes Yes Option Option
ECG-60LV 6-Channel Yes Yes 6" 7-ch 112mm Yes Yes Yes Yes Yes Yes
