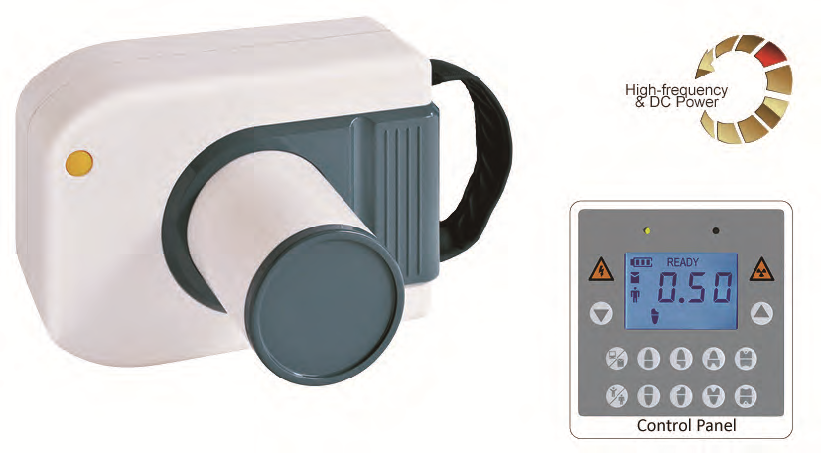

DX10P-A/B Portable High-frequency Dental X-ray

Features:

  1. DX10P is portable high-frequency DC dental x-ray unit, small, light and nearly no radiation.
  2. There are manual buttons installed on the surface of shell, operate easily. All of the components are installed in the central PC board, insulation vacuum and sealed stereotype protection make its brilliant features.
  3. The unit mainly suitable for oral pre-treatment diagnosis of internal organization structure and root depth and so on, is indispensable in daily life clinic, especially for dental implant surgery.
  4. The battery is durability, it can take about five hundred images after full charged, and it can be charged and discharged for one thousand times in its life.
  5. It can be connected with intra-oral digital x-ray imaging system.

Quantity

Add to cart

Share :

Technical Specification

Specification For DX10P-A(Grey):
Tube voltage: 60KV
Tube current: 1.2mA
Tube focus: 0.4mm
Frequency: 40KHZ
Exposure time: 0-2.5s
Charge voltage: AC 100V-240V, 50/60Hz
Battery: 14.8V, 4400mAh
Leak radiation: Outside one meter≤0.002mGy/h
Focal spot to skin distance: 140mm
Net weight: 2.6kg
Package size: 280×270×250mm
Gross weight: 5.0kg

Specification For DX10P-B(Color):
Tube Voltage: 60kV
Tube Current: 1.5mA
Time Exposure: 0.1~2(s)
Frequency: 30KHz
Rated Power: 60VA
Focal Spot To Skin Distance: 130mm
Tube focus: 0.3mm
Charger Input Voltage: AC 100V~240V, ±10%
Output Voltage: DC 16.8V
G.W: 4.8KG
Package size: 330*310*230mm
Relative humidity: <75%RH
Battery: DC 14.8V, 6400mAh
