DR-40V Portable Digital X-Ray Machine

DR-40V portable digital X-ray machine is designed to produce super quality digital images for all large animals like equine, companion animals like dogs or cats, exotic and mixed animals, etc.

Quantity

Add to cart

Share :

Main Components Name of Components Model/Specification Quantity
DR System Portable x-ray machine DR-40V 1 set
Digital detector iRay (17x17 inches) 1 set
Laptop computer Lenovo 1 set

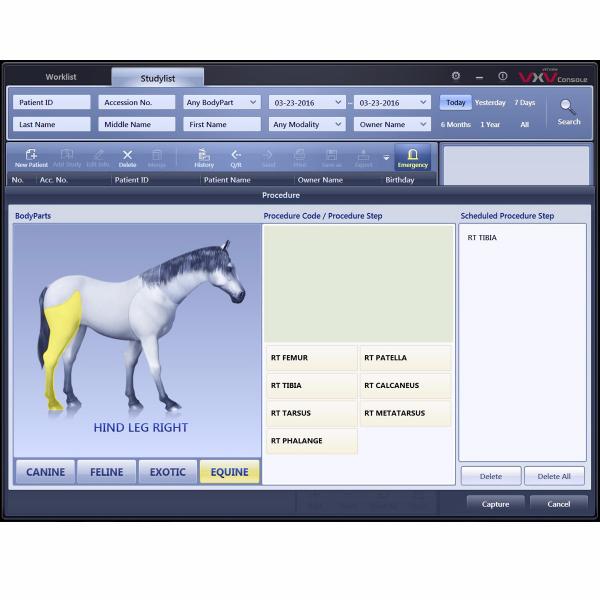

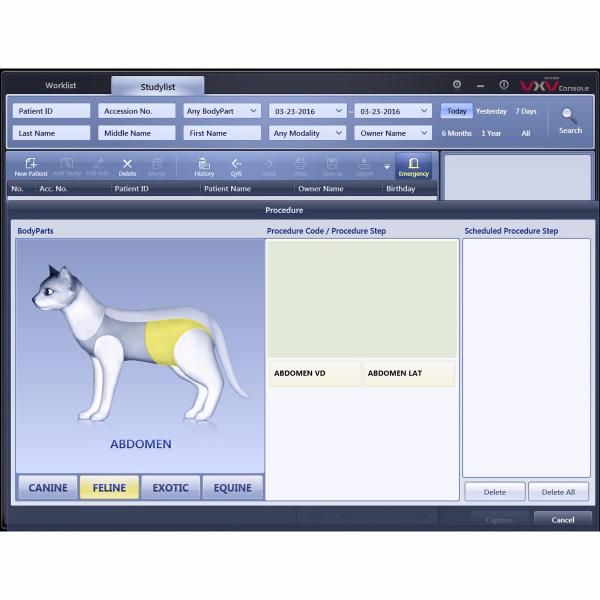

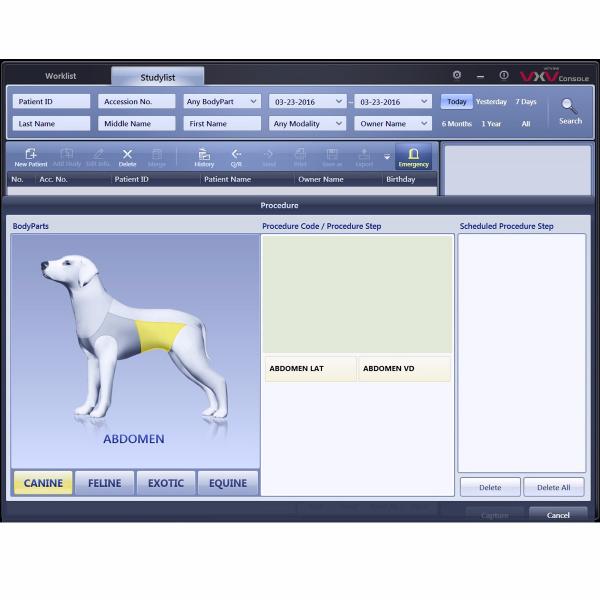

DR image processing software for pet   1 set
Accessory Trolley F1 1 set
Carrying case   1 set



Technical Specification

Input Power Voltage: AC220V±22V
Frequency: 50/60Hz±1Hz
Maximum output power 4kW
Nominal power 100kV, 40mA, 0.1s, 4kW
kV adjusting range 40kV~110kV, Continuous adjustment step 1kV
mA adjusting range 36mA~60mA
mAs adjusting range 1mAs-190mAs, Shifted adjustment
s adjusting range 0.04s~3.2s
X-ray tube Brand: Toshiba Focus: 0.6/1.5mm;
Anode heat capacity: 76kHU
Flat panel detector iRay 17*17 inch
Laptop computer Brand: Lenovo
CPU: Intel Core i5
Memory capacity: 4GB
Screen size: 14 inch
Anatomy program 48 kinds of memory choices
X-ray machine size 290×260×230mm
Weight 100kg
Standard accessory Hand switch, remote control, carrying case, trolley.
