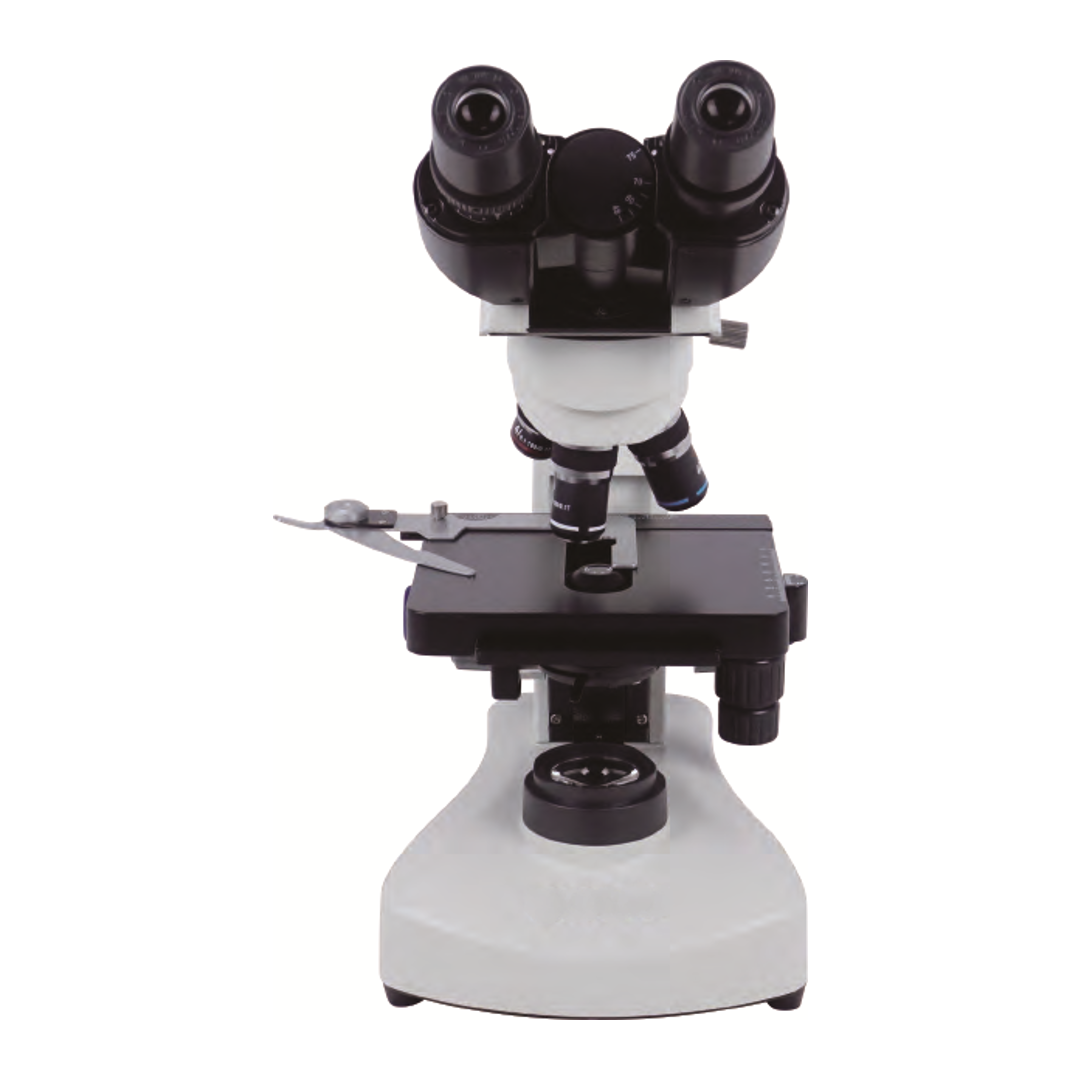

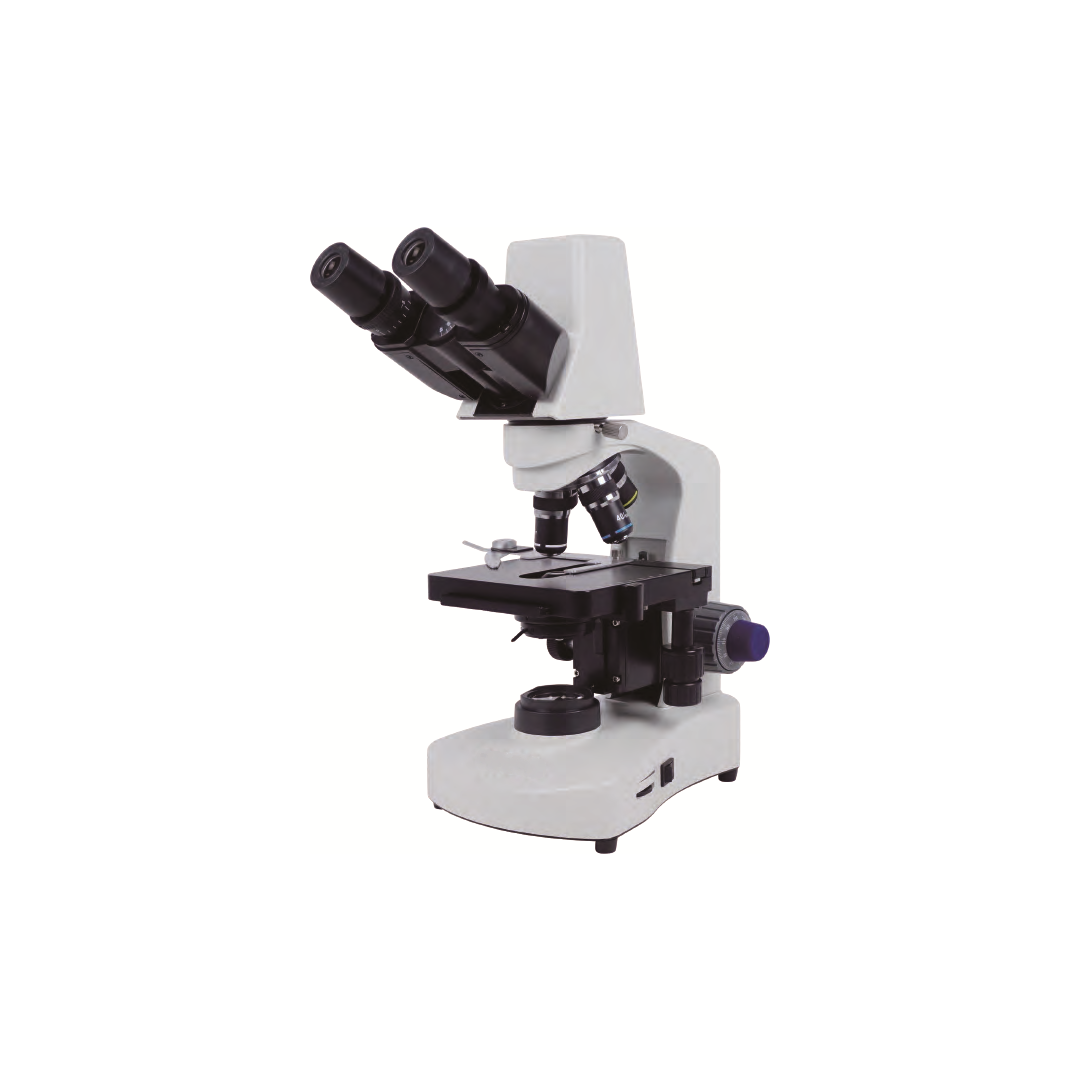

DM-130 Digital Microscope

  1. Integrated digital microscope, resolution 1280×1024 (1.3M pixel)
  2. USB2.0 output, plug and unplug freely
  3. Support WINDOWS 2000/XP/VISTA system, Equipped with powerful applied software
  4. Economic features, widely used in academic demonstration and health system

Quantity

Add to cart

Share :

Optional:
Eyepiece: P16×/11;
Halogen Lamp 6V/ 20W, Brightness Adjustable;
Phase Contrast Kit;
Dark Field Attachment;
Polarization Attachment.

Technical Specification

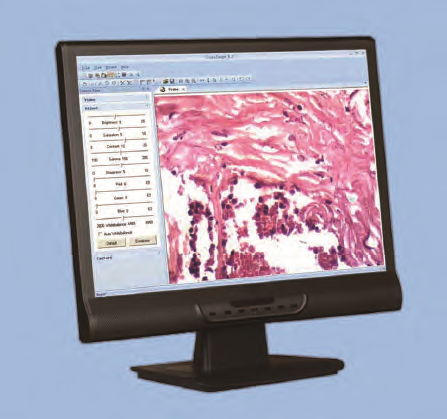

Camera System: Valid Pixel: 1280×1024 (1.3M pixel); Output Mode: USB2.0; Operation System: WINDOWS 2000/
XP/VISTA; Software: ScopeImage 9.0; Range of Viewing Field: >90%
Viewing Head: Seidentopf type Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm
Eyepiece: WF10×/18
Objective: Achromatic Objective 4×, 10×, 40×, 100×
Nosepiece: Backward Quadruple Nosepiece

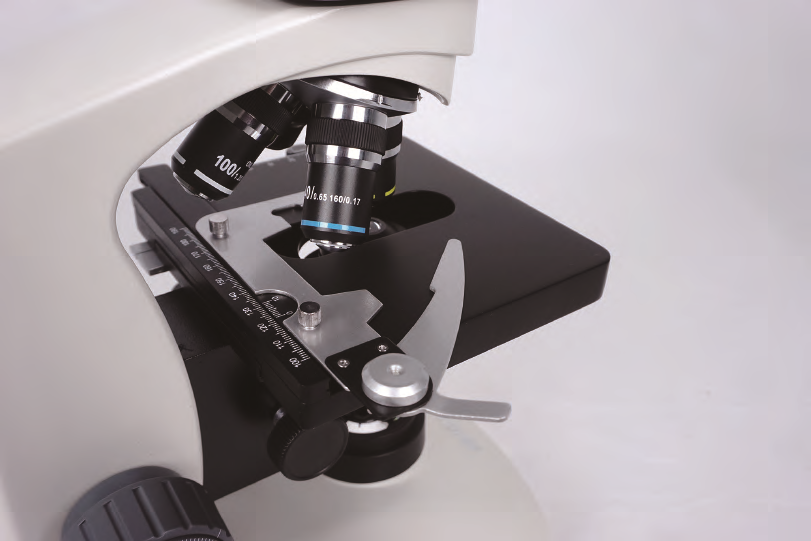

Stage: Double Layers Mechanical Stage 132×142mm/ 75×40mm
Condenser: Abbe NA1.20 with Iris Diaphragm & Fliter
Focusing: Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 0.004mm
Illumination: LED 3W, Brightness Adjustable
