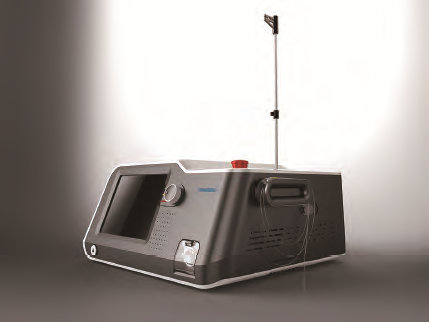

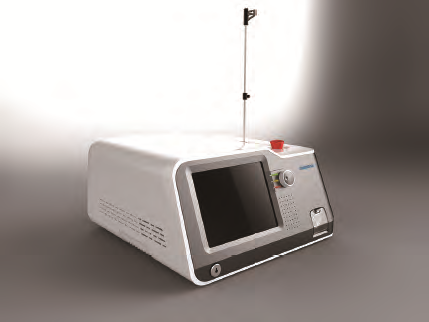

DL-20 / 45 / 60 Portable Veterinary Diode Laser System

Lark series Class IV diode lasers for use in veterinary therapy and surgery. The units are capable of therapy only, diode laser surgery only, or capable of both for the most flexible option. Whether it is for general veterinary practice, specialist veterinary centers, physiotherapy and rehabilitation specialists, or universities, this is a right diode laser for you. By easily changing handpieces you will perform therapy, surgery, dentistry, percutaneous intervertebral disc decompression, tooth whitening, etc.


Class IV diode lasers running 980nm wavelengths with outputs between 20 watts and 60 watts power output as they cover most of your general veterinary laser needs.

Features:

  1. Compact design makes it small in size and light in weight, easy to transport.
  2. Big color touch screen, Encoder knob dual operation.
  3. Highly integrated and modular design.
  4. New design inside to make maintenance easy and low cost.
  5. Advanced software with presetting protocols to be manually customized by operator.
  6. Built-in power meter can test the power in the software by user.
  7. Output power calibration at the end of fiber to make the maintenance easy and low cost.
  8. Adopt air cooling system guarantee stable performance and long life time.

Quantity

Add to cart

Share :

Applications:

  • Laser Therapy

The treatment of laser irradiation has anti-inflammatory, analgesic and cure-promoting effects, so it is regularly used to cure the wound disturbances and locomotorium illness (acute and chronic joint inflammations, musculature inflammations, sinew inflammations or tenosynovitises).

Applications: Healing of wound promotion, Postoperative measures, Pain therapy, Hotspot treatment, Arthrosis,
Strengthening of weak ear cartilages, etc.

  • Laser Surgical

For surgery, the laser ray is used for cuttng tissue like a scalpel. Through high temperatures up to 300°C, the cells of treated tissue pop open and evaporate (called vaporization). The vaporization can be very well controlled by parameter selection for laser performance, focusing, distance and reaction time, and therefore point-exactly applied. The strength of fiber-optic decides furthermore how fine the executed cut becomes. The influence of the laser causes a coagulation of the surrounding blood vessels so that the field remains freely from bleedings.

The benefits of laser surgery is like less bleeding, less pain, less swelling after surgery, quicker recovery from surgery.



Standard:
Main unit, surgery handpiece, 400μm/600μm fiber, safety goggles, fiber cu??er, fiber stripper, foot switch, interlock, fiber holder, cable, carry case.


Optional:

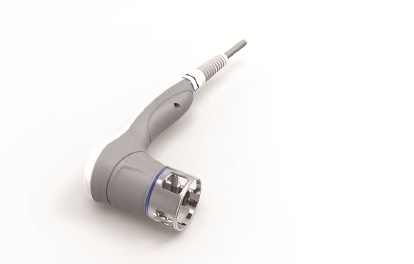

  1. Surgery handpiece (TH1): Aluminum with 4 disposal tips, length: 166mm, 200μm/ 400μm/ 600μm suitable.

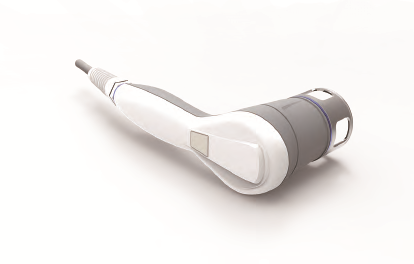

  2. Straight therapy handpiece (TH2): Aluminum/Silver, spot diameter adjustable: 10mm/ 15mm/ 20mm/ 25mm/30mm, with hand switch control
  3. L-type therapy handpiece (PM3): Spot diameter: 30mm, with hand switch control
  4. Bare fiber: 400μm/ 600μm

Technical Specification

Model DL-20 DL-45 DL-60
Wavelength 980nm 980nm 980nm
Maximum Power 20W 45W 60W
Pulse Duration 10µs-3s 10ms-3s 10ms-3s
Repetition Rate 0.2Hz-20KHz 0.2Hz-20KHz 0.2Hz-50KHz
Weight 4kg 13.5kg 13.5kg
Dimensions (L*W*H) 245mm*215mm*315mm 385mm*400mm*200mm 385mm*400mm*200mm
Fibers Fibers of 200µm, 400µm and 600µm with connector
Operation Mode CW, Single or Repeat Pulse
Pilot Beam Red diode laser of 635nm, Power <5mW
Control Mode Touch Screen, 8" True Color
Voltage 110/220V, 5A, 50/60Hz
