Dental Implant Guide System Kit

IG05, it is suitable for the implant of single teeth and multiple teeth, determine the location more accurateiy and quickiy.

Zirconia material, it can be autoclavable at 134°C, with high hardness and high strength, good at wear resistance and oxidation resistance.

The thermoplastic film can be softened after hot water immersion to cover and make retention on the adjacent teeth. A better operation position can be positioned by the system. Given the location and quantity of implant the system can be for single tooth and multiple teeth.

  • Item : IG05
  • Specification : 150X100.7X45mm
  • Packing : 1 set/box, 10 boxes/ctn

Quantity

Add to cart

Share :

IG05, it is suitable for the implant of single teeth and multiple teeth, determine the location more accurateiy and quickiy.

Zirconia material, it can be autoclavable at 134°C, with high hardness and high strength, good at wear resistance and oxidation resistance.

The thermoplastic film can be softened after hot water immersion to cover and make retention on the adjacent teeth. A better operation position can be positioned by the system. Given the location and quantity of implant the system can be for single tooth and multiple teeth.

  • Item : IG05
  • Specification : 150X100.7X45mm
  • Packing : 1 set/box, 10 boxes/ctn

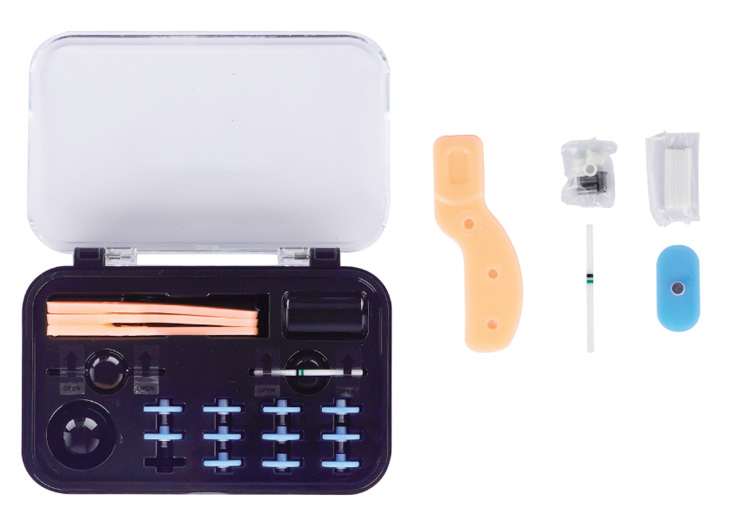

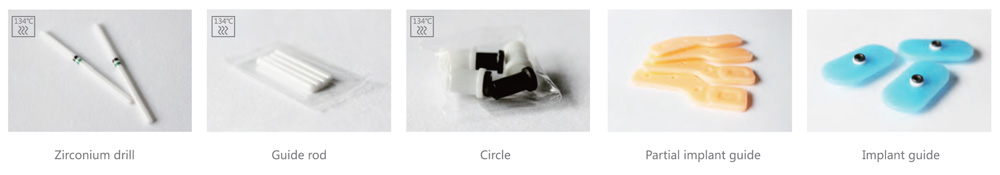

Dental implant surgery, due to the rich jaw neve and blood vessels and individual differences among different patients it is so hard for dentists to control the position and angles during their drilling in the jaw. And peripheral tissue can be unnecessary damaged. Including : 2 pcs zirconium drills, guide rod 14 pcs, 3 pcsof inner circle, 3 pcs outer ctrcle, partial implant guide 4 pcs, implant guide 12 pcs.

Instructions for single teeth implant guide plate :

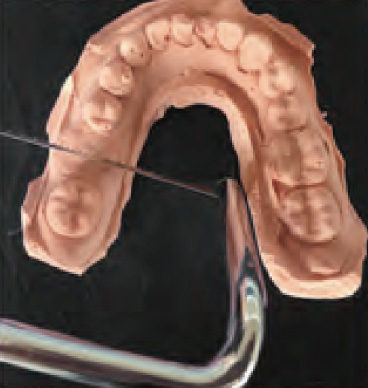

  • Cut the plaster model in central position where needs to do implanting.

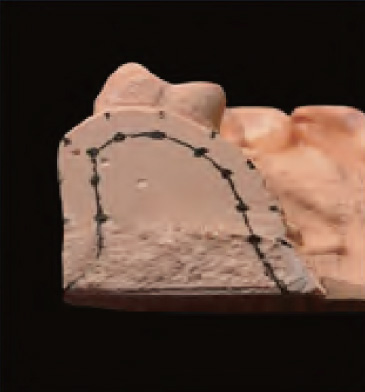

  • Draw bone topography.

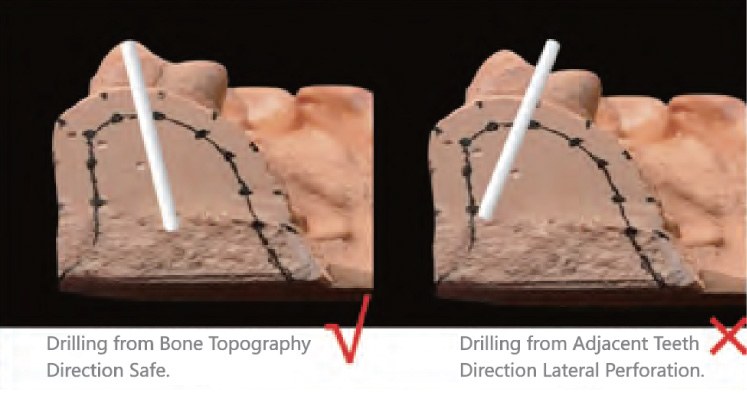

  • According to bone topography, draw position and direction of guide rod.

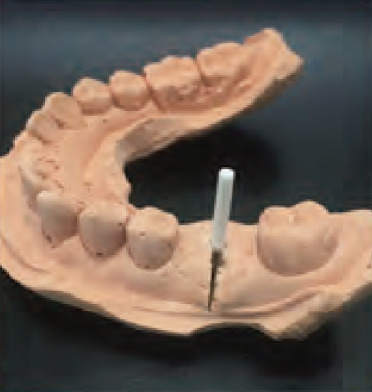

  • Take a zirconia drill in kit grind 1.1mm groove on both side of plaster model. insert the guide rod, and then glue the two half plaster model together.

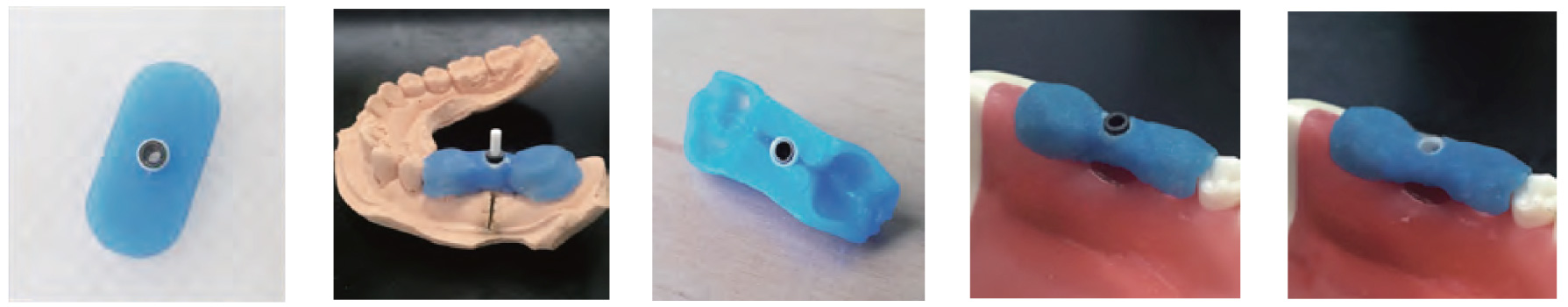

  • Take single teeth implant guide plate, soak and soften it into hot water, after the color becomes transparant, take out.
  • Place the single teeth guide plate on the plaster model, and make shape.
  • Take down when the plate becomes harder.
  • Black inner ring suits for drill below 2.3mm.
  • White inner ring suits for drill below 3.0 mm.
