CURING O-STAR

16 years of professional technology 38 national patents Global sales over 1.5 million units Pioneering Curing Light expert in China.

SMALL BUT POWERFUL MAKING A BIG DIFFERENCE

Full-metal body, ergonomically-streamlined design, without tiredness from long-time holding 108g main unit, light but strong, anti-shock and durable.

Quantity

Add to cart

Share :

16 years of professional technology 38 national patents Global sales over 1.5 million units Pioneering Curing Light expert in China.

SMALL BUT POWERFUL MAKING A BIG DIFFERENCE

Full-metal body, ergonomically-streamlined design, without tiredness from long-time holding 108g main unit, light but strong, anti-shock and durable.

WIDE-SPECTRUM CURING LIGHT ULTIMATE CURING EXPERT

  • All-Metal Body
  • 1 Sec Curing
  • Built-in Light Meter
  • Uniform and Collimated Beam
  • 7 Modes in Total

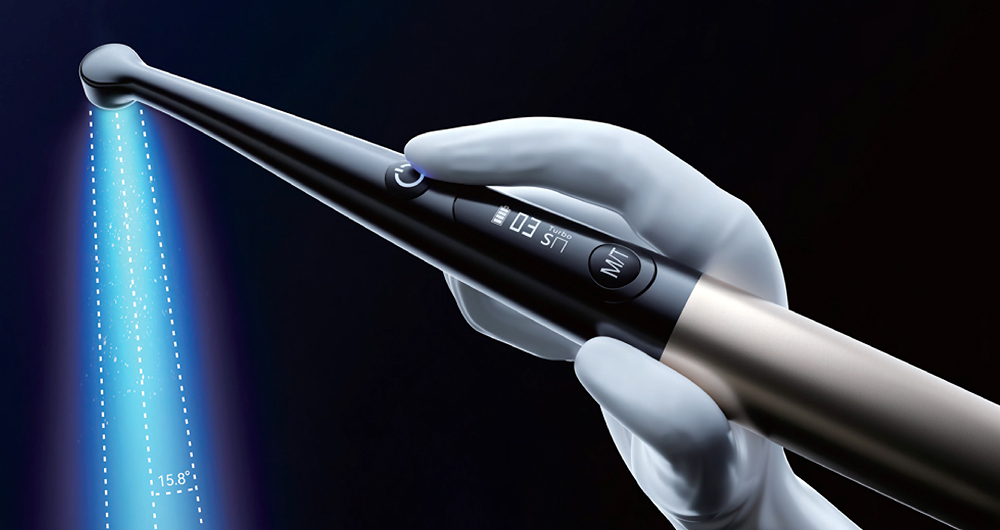

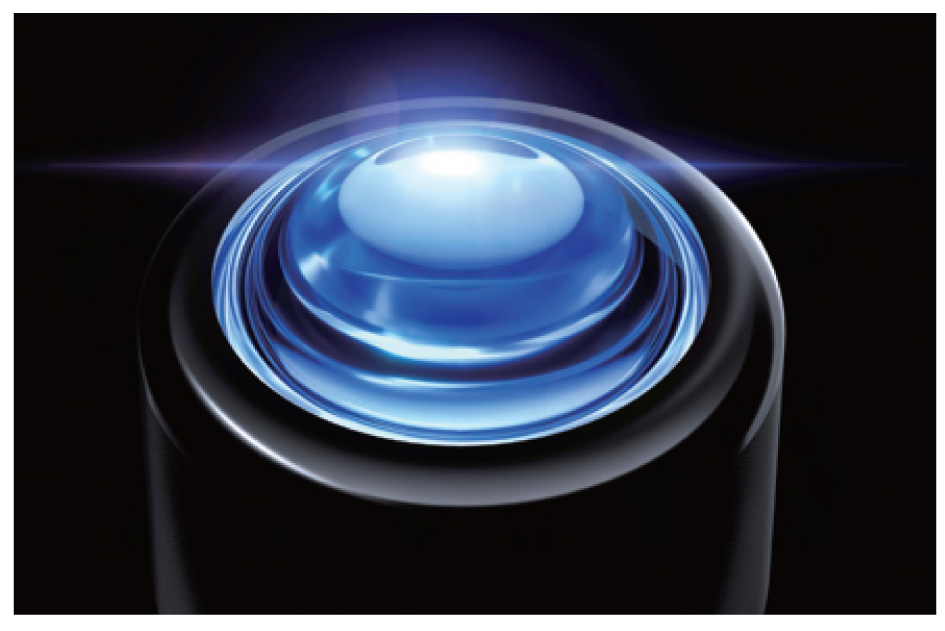

UNIFORM BEAM, STRONG PENETRABILITY

More-focused light output thanks to light angle of only 15.8°, ensuring good deep curing effect.

Curing, distance (cm) Light source Light spot length (cm) Light spot width (cm) Light spot area (mm) Light spot area ratio Light angle
  5 Woodpecker 38 38 1444 -14,1% 15.80*
Vale Cordless 41 41 1681   17.38*
Power Cure 87 87 5941.665 253.5% 37.95

7 MODES TO FULLY MEET A VARIETY OF CLINICAL NEEDS

Like an all star, O-Star is strong in performance, well-controlled and can fully meet various clinical needs. Normal High Turbo Ortho Soft Pulse Check.

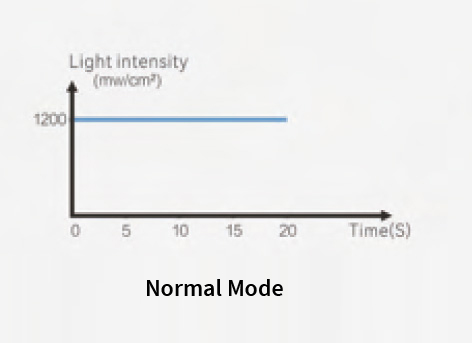

Normal Mode

  • Constant light intensity:
  • 1000-1200mw/cm2
  • Suitable for most treatment scenarios,
  • such as fillings, restorations, etc.
  • Time setting: 5s, 10s, 15s, 20s

High Mode

  • Constant light intensity:
  • 1800-2000 mw/cm2
  • Suitable for quick curing,
  • ensuring enough curing depth
  • Time setting: 3s, Ss

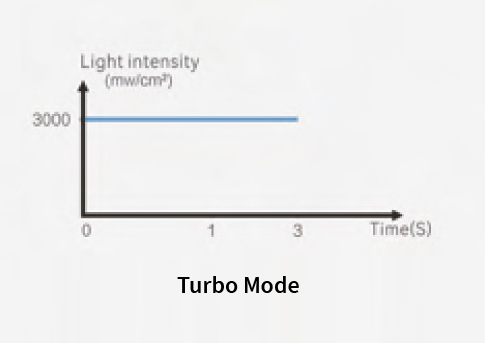

Turbo Mode

  • Time setting: 1s, 3s
  • 2700-3000mw/cm2
  • Ultra-high light intensity enables
  • 1 sec curing of 2mm resin,

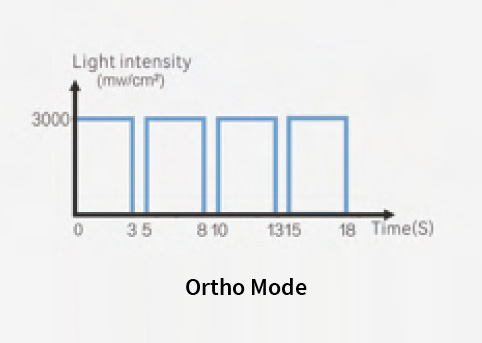

Ortho Mode

  • Time setting: 3s*5, 3s*10
  • 2700-3000mw/cm2
  • High light intensity with
  • strong penetrability,
  • especially suitable for
  • orthodontic bracket bonding

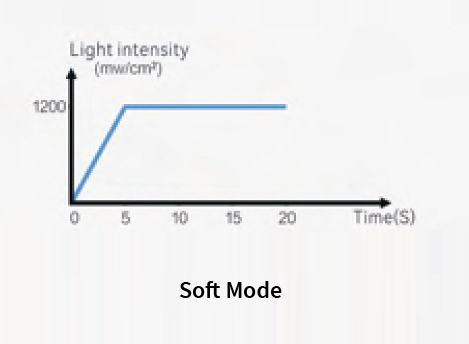

Soft Mode

  • Light intensity is gradually increased
  • from 0 to 1 200mw/cm2
  • Time setting: 5s, 10s, 15s, 20s
  • Effectively reduce the
  • shrinkage rate of resin;
  • Lower the risk of micro leakage

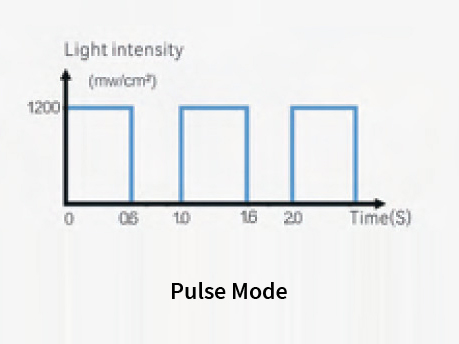

Pulse Mode

  • The LED will stop for 0,4s at an
  • interval of 0,6s curing.
  • When working in a cycle of treatment.
  • it can effectively reduce heat generation.
  • efficiently dissipate heat and ensure the comfort of diagnosis and treatment.
  • Time setting: 5s, 10s, 15s, 20s

Check Mode

  • This mode outputs a single purple light. When special glasses are worn, the caries are obviously orange-red.
  • Application : Detection of caries, calculus and cracked tooth.

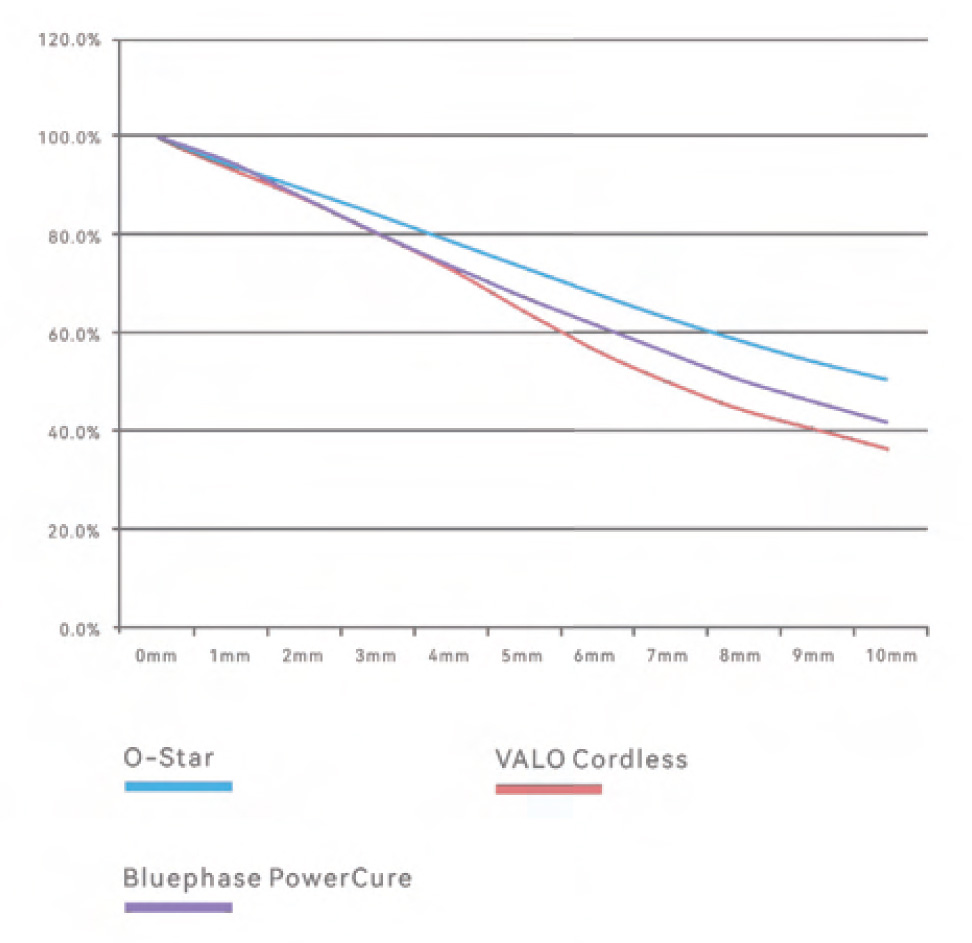

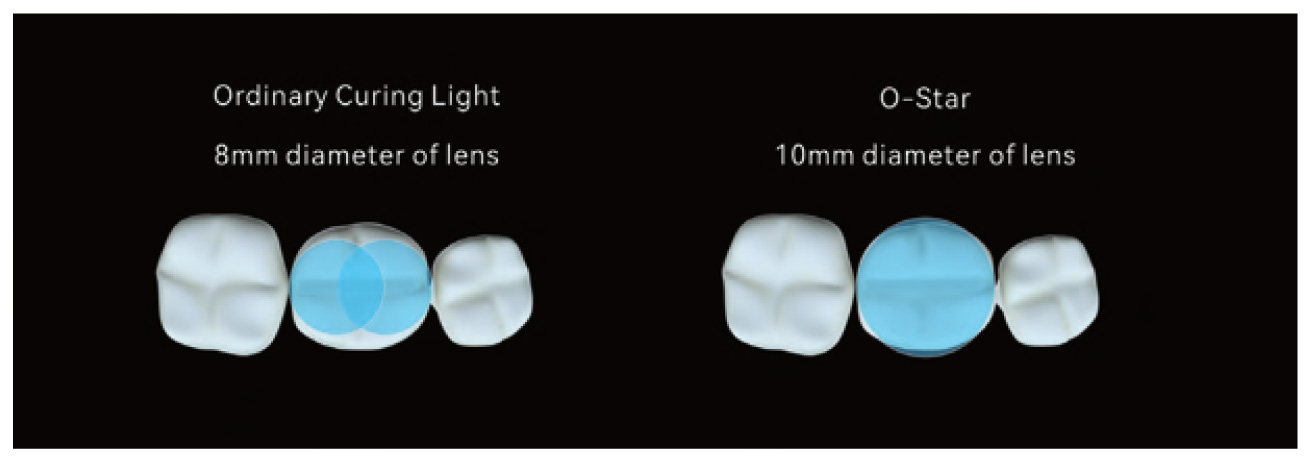

LESS LIGHT LOSS

The light intensity of Curing Light will be reduced when the curing distance increases. Compared to other Curing Lights, O-Star undergoes less light loss.

LIGHT INTENSITY UP TO 3000 MW/cm

The high light intensity brings sufficient curing depth, which can reduce the curing time and greatly improve the efficiency of resin curing. Equipped with 10w LED Light intensity up to 3000 mw/cm2, Bringing you full confidence in curing.

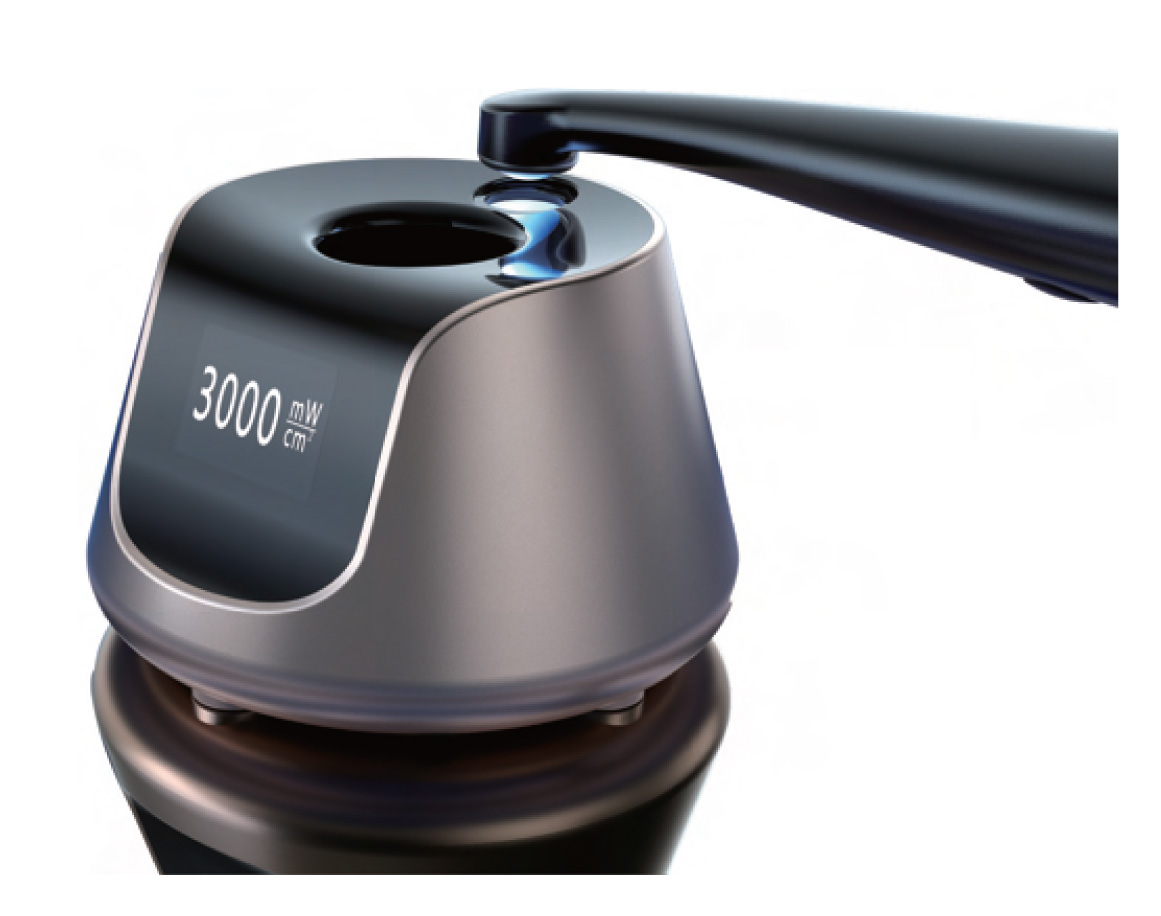

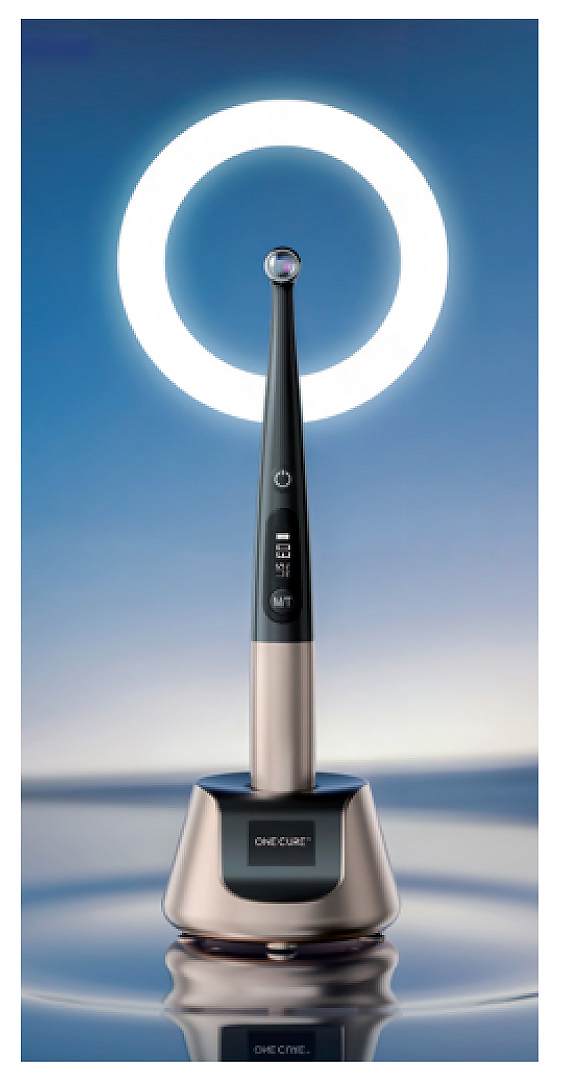

CHARGING BASE WITH BUILT-IN LIGHT METER

There is a light meter built in the charging base. Accurate light intensity is required for efficient polymerization of the resin, bringing you and your patients the best treatment experience.

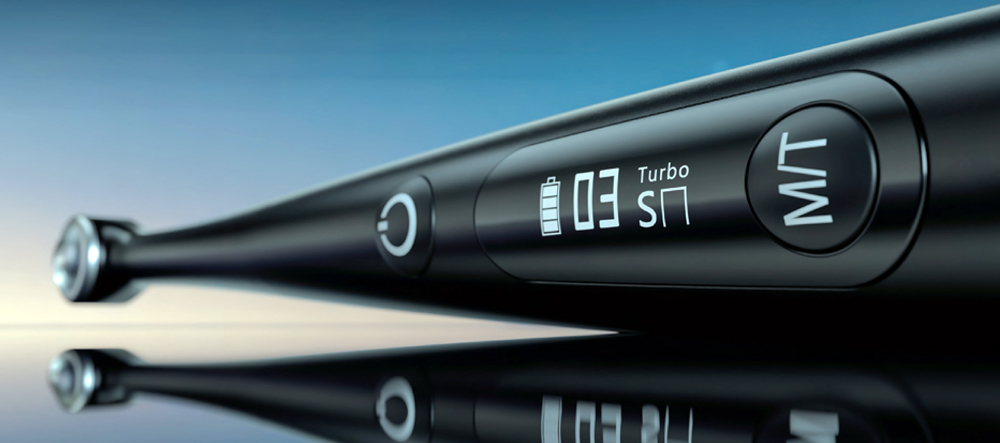

SIMPLE TWO-BUTTON DESIGN ENABLES EASY OPERATION.

Equipped with OLED screen, the mode, light intensity and time can be clearly displayed to avoid clinical errors.

UNPRECEDENTED CURING LIGHTINCORPORATING VARIOUS STRENGTHS

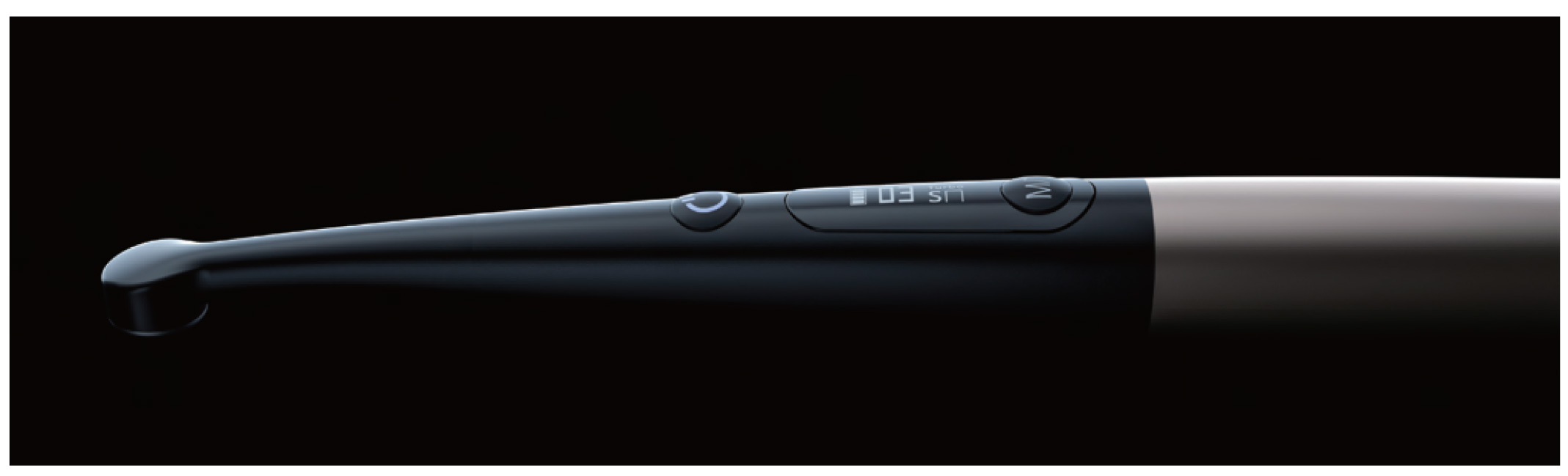

360° ROTATABLE HEAD MEETING VARIOUS CLINICAL NEEDS

360° rotatable head, easy to illuminate all angles in the mouth.

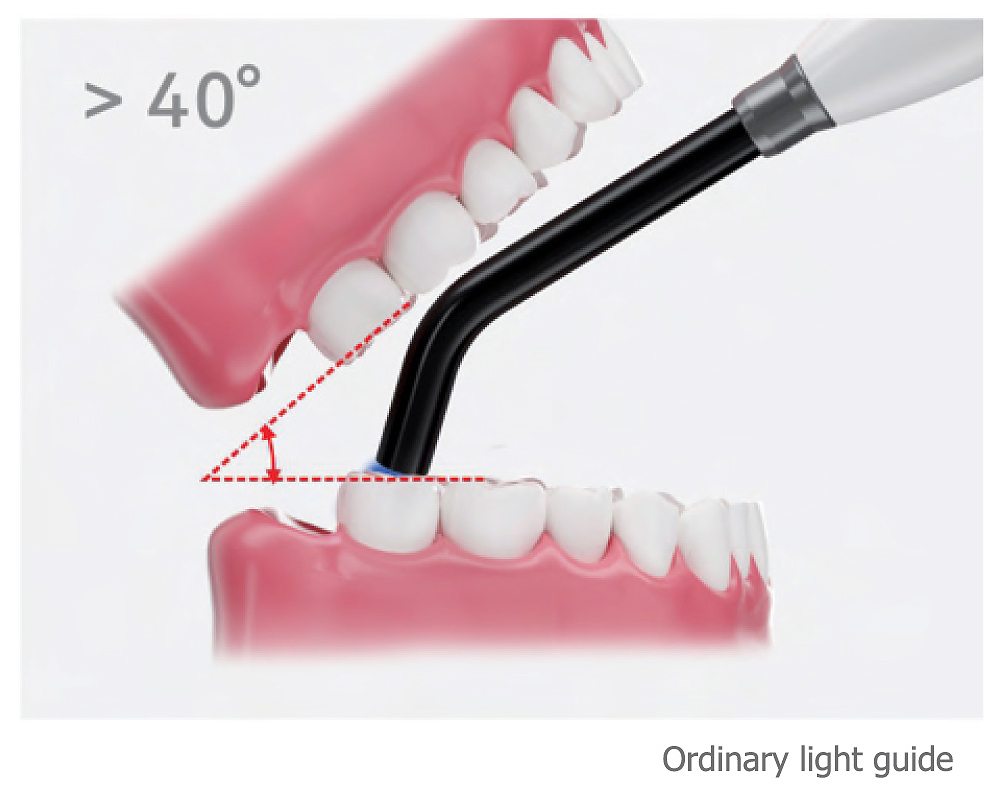

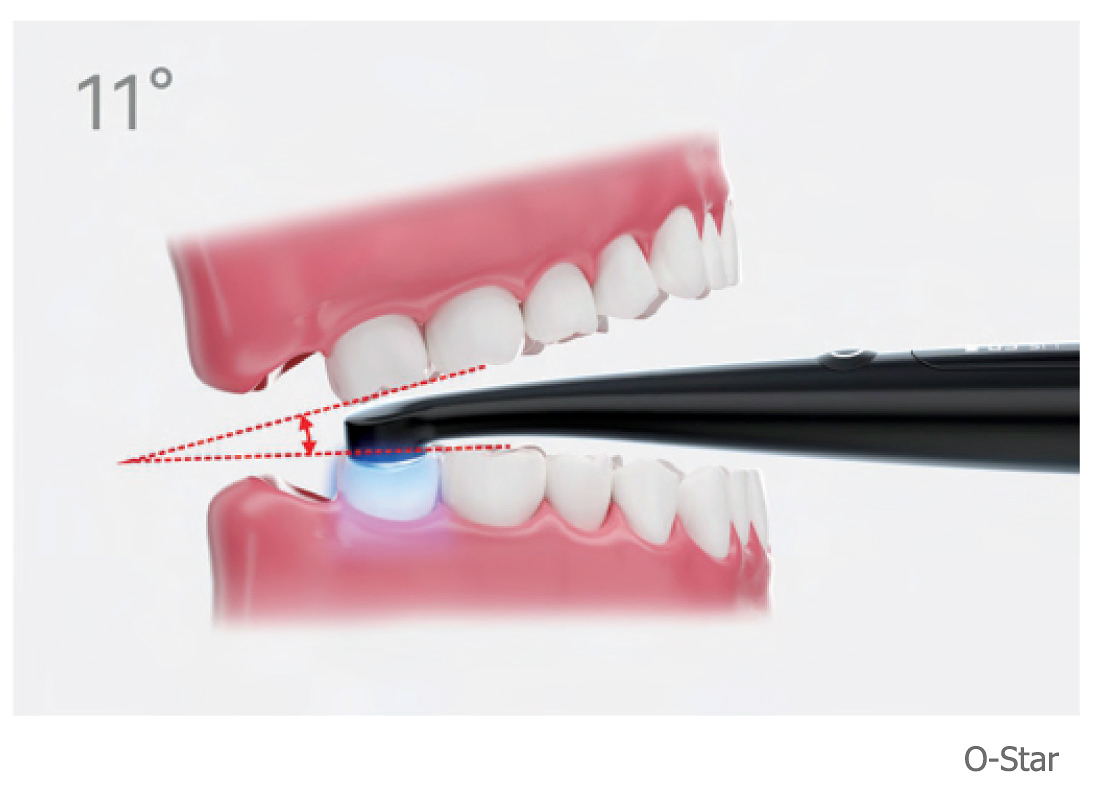

The low-profile head can easily reach the posterior teeth.

The patient only needs to open the mouth slightly and enjoy comfortable treatment.

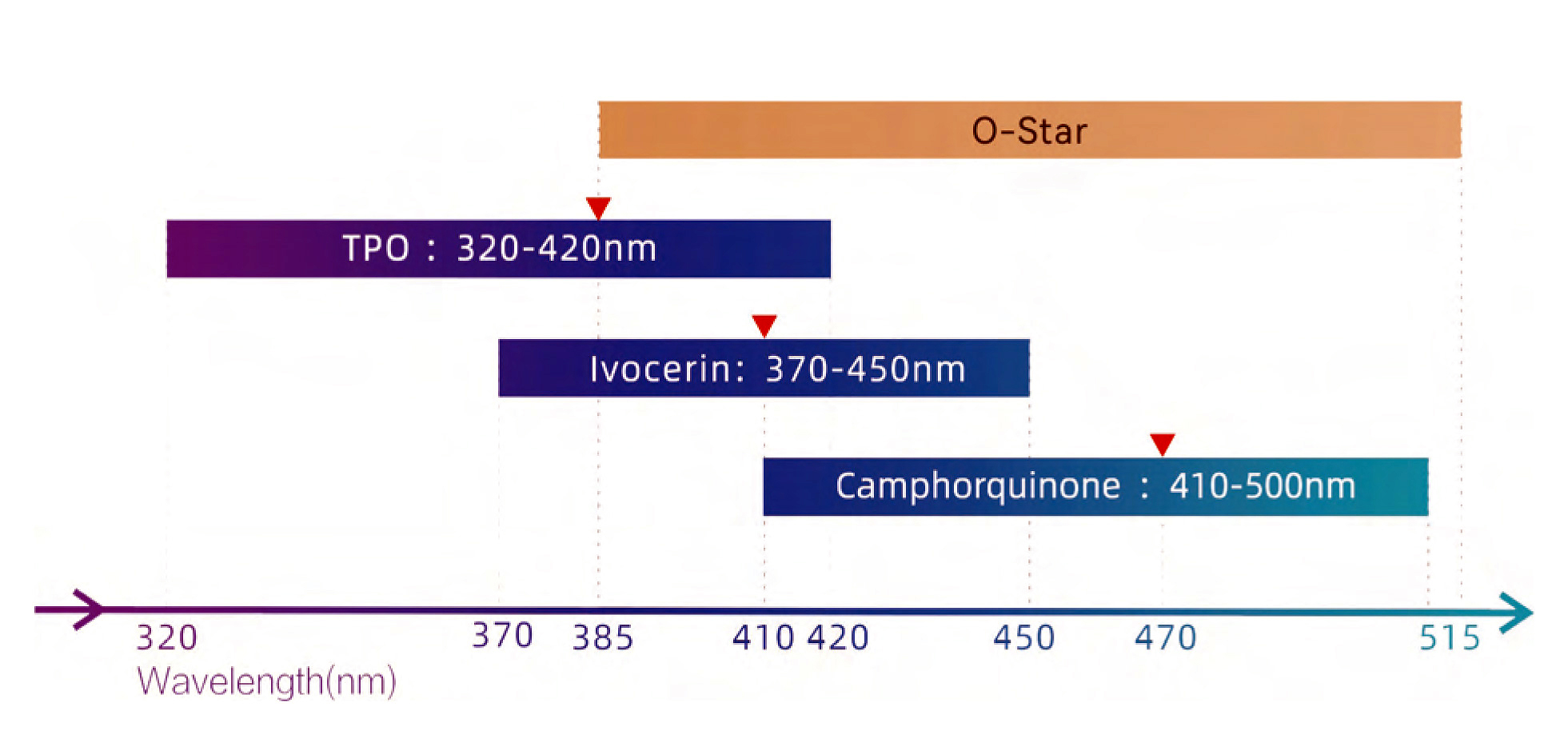

WIDE SPECTRUM CURING LIGHTCAN CURE ALL RESIN MATERIALS ON THE MARKET.

Camphorone (CQ) is used as photo initiator in most of the resins on the market, but some resins use two kinds of new photoinitb-tors, i.e. TPO or ivocerin.

The main absorption wavelength of these three kinds of resins is 385-515mm.With a wavelength range of 385-515nm,0-Star is suitable for effective curing of most resins on the market.

Indicates :IThis photo initiator can better absorb light at this wavelength range.

Note : The data comes from the official website of Ivoclar Vivadent.

Technical Specification

Curing, distance (cm) Light source Light spot length (cm) Light spot width (cm) Light spot area (mm) Light spot area ratio Light angle
  5 Woodpecker 38 38 1444 -14,1% 15.80*
Vale Cordless 41 41 1681   17.38*
Power Cure 87 87 5941.665 253.5% 37.95
