Carbide Burs

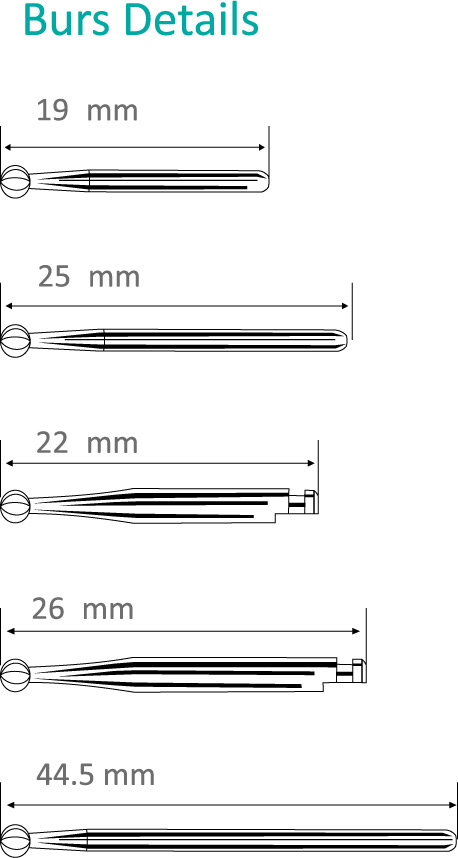

Shake Information
ISO 314 FG standard: 19mm
ISO 316 FG L: 25 mm
ISO 204 RA: 22 mm
ISO 205 RA L: 26mm
ISO 104 HP: 44.5 mm

Recommended Speed
FG: 120,000 – 300, 000 rpm
RA: 500 – 2000 rpm
HP: 6,000 – 50, 000 rpm

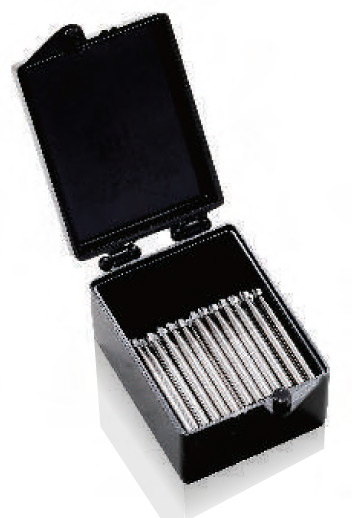

PACKING
FG/RA : 5 or 10 pcs/blister, 100 pxs/box
HP : 10 pcs/blister

Quantity

Add to cart

Share :

Carbide Burs

Shake Information
ISO 314 FG standard: 19mm
ISO 316 FG L: 25 mm
ISO 204 RA: 22 mm
ISO 205 RA L: 26mm
ISO 104 HP: 44.5 mm

Recommended Speed
FG: 120,000 – 300, 000 rpm
RA: 500 – 2000 rpm
HP: 6,000 – 50, 000 rpm

PACKING
FG/RA : 5 or 10 pcs/blister, 100 pxs/box
HP : 10 pcs/blister

HOW TO ORDER?
FG1 : head shape of instruments
S : shank(FG,RA,HP)
Order no : Shape-shank-US No. (FG1-FG-1/4)

BURS FOR CLINIC

Technical Specification

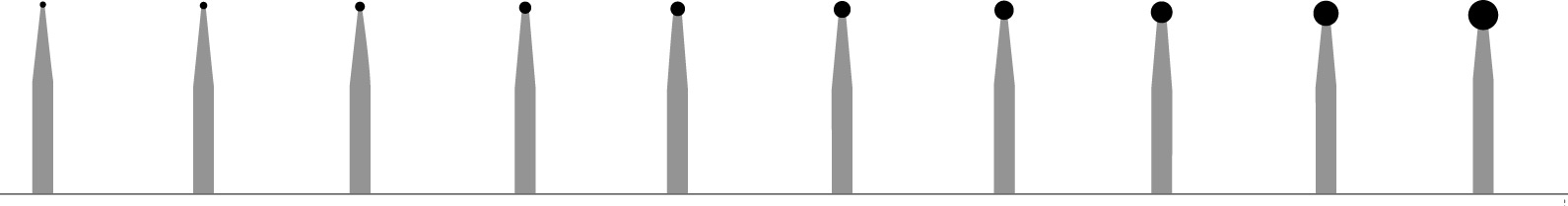

FG1

S ISO No.
FG 005 006 008 010 012 014 016 018 021 023
RA   006 008 010 012 014 016 018 021 023
HP     008 010 012 014 016 018 021 023
FUS No 1/4 1/2 1 2 3 4 5 6 7 8
Order No.
FG2-FG 1/4 1/2
FG2-RA   1 2 3 4 5 6 7 8
FG2-HP

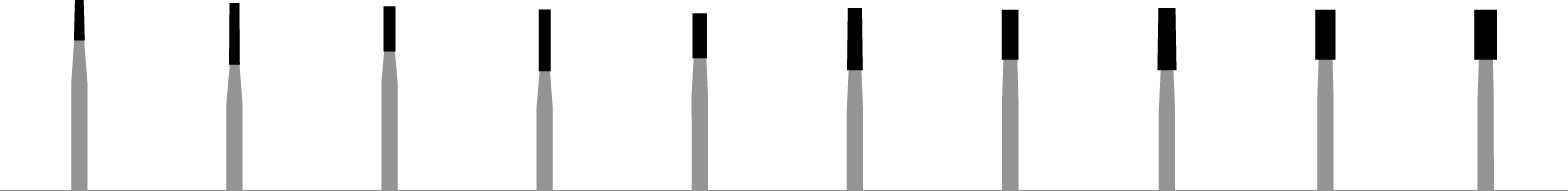

FG2

S ISO No.
FG 006 008 010 012 014 016 018 021 023
RA 006 008 010 012 014 016 018 021 023
HP   008 010 012 014 016 018 021 023
US No 33 1/2 34 35 36 37 38 39 40 41
Order No.
FG2-FG 33 1/2 34 35 36 37 38 39 40 41
FG2-RA
FG2-HP

FG11

s ISO No.
FG 006 008 008 010 010
US No 329 330 330L 331 331L
Order No
US No 329 330 330L 331 331L

FG23

s ISO No.
FG 010 010 012 012
US No 170 170L 171 171L
Order No
US No 170 170L 171 171L

FG21

S ISO No
FG   010 010 012
RA 08 010 010   14
HP   010     14
US No 56 57 57L 58 59
Order No.
FG21-FG 56 57 57L
FG21-RA   58 59
FG21-RA

FG31

S ISO No.
FG 08 08 010 010 012 012 014 014 016 021
RA     010   012 012 014 014 016 021
HP     010   012 012 014 014 016 021
US No 556 556L 557 557L 558 558L 559 559L 560 562
Order No.
FG31-FG 556 556L 557 557L 558 558L 559 559L 560 562
FG31-RA
FG31-HP

FG33

S ISO No.
FG 009 009 010 010 012 012 016
RA     010   012 012 016
HP 009   010   012 012 016
US No 699 699L 700 700L 701 701L 702L
Order No.
FG33-FG 699 699L 700 700L 701 701L 702L
FG33-RA
FG33-HP 699

FG11R

S ISO No.
FG 010 012
US No. 245 246
Order No.
FG11R-FG- 245 246

FG23R

S ISO No.
FG 009 010 010 012 012
RA       012
US No. 1169 1170 1170L 1171 1171L
Order No.
FG23R-FG- 1169 1170 1170L 1171 1171L
FG23R-RA-

FG31R

L
S ISO No.
FG 008 010 012
RA   010 012
HP 008 010 012
US No 1556 1557 1558
Order No.
FG33-FG 1556 1557 1558
FG33-RA
FG33-HP 1556
