BV IMPLANT DESIGN

Platform Switching & Open thread

Establish good biological width and reasonable stress transfer, Key to avoid bone resorption

Shallow Thread

Upper shallow thread structure has good initial stability in soft bone

Double-lead Thread

Double-lead thread with same pitch can achieve rapid implantation, reduce bone friction

Surface Treatment

  • S-L-A surface treatment can obtain best surface topography, Gold Standard of Surface Treatment
  • Surface roughness gradual changes from neck to root, Ra1.0-40 m, More in line with the biological requirements of pressure, shorten osseointegration
  • Reduce the incidence rate of peri-implantitis

Quantity

Add to cart

Share :

Design Features

Platform Switching & Open thread

Establish good biological width and reasonable stress transfer, Key to avoid bone resorption

Shallow Thread

Upper shallow thread structure has good initial stability in soft bone

Double-lead Thread

Double-lead thread with same pitch can achieve rapid implantation, reduce bone friction

Surface Treatment

  • S-L-A surface treatment can obtain best surface topography, Gold Standard of Surface Treatment
  • Surface roughness gradual changes from neck to root, Ra1.0-40 m, More in line with the biological requirements of pressure, shorten osseointegration
  • Reduce the incidence rate of peri-implantitis

Parallel surface, Conical contact

Can obtain the best mechanical stability performance, avoid clinical complications including thread loosening, fracture effectively

Internal Connection

  • Upper 11 morse taper, has excellent load distribution and sealing
  • Internal hexagon connection in bottom has excellent anti-rotation ability

Spiral cutting edge

  • Strong self-tapping can modify the implantation direction more easily
  • Increase initial stability in osteoporosis

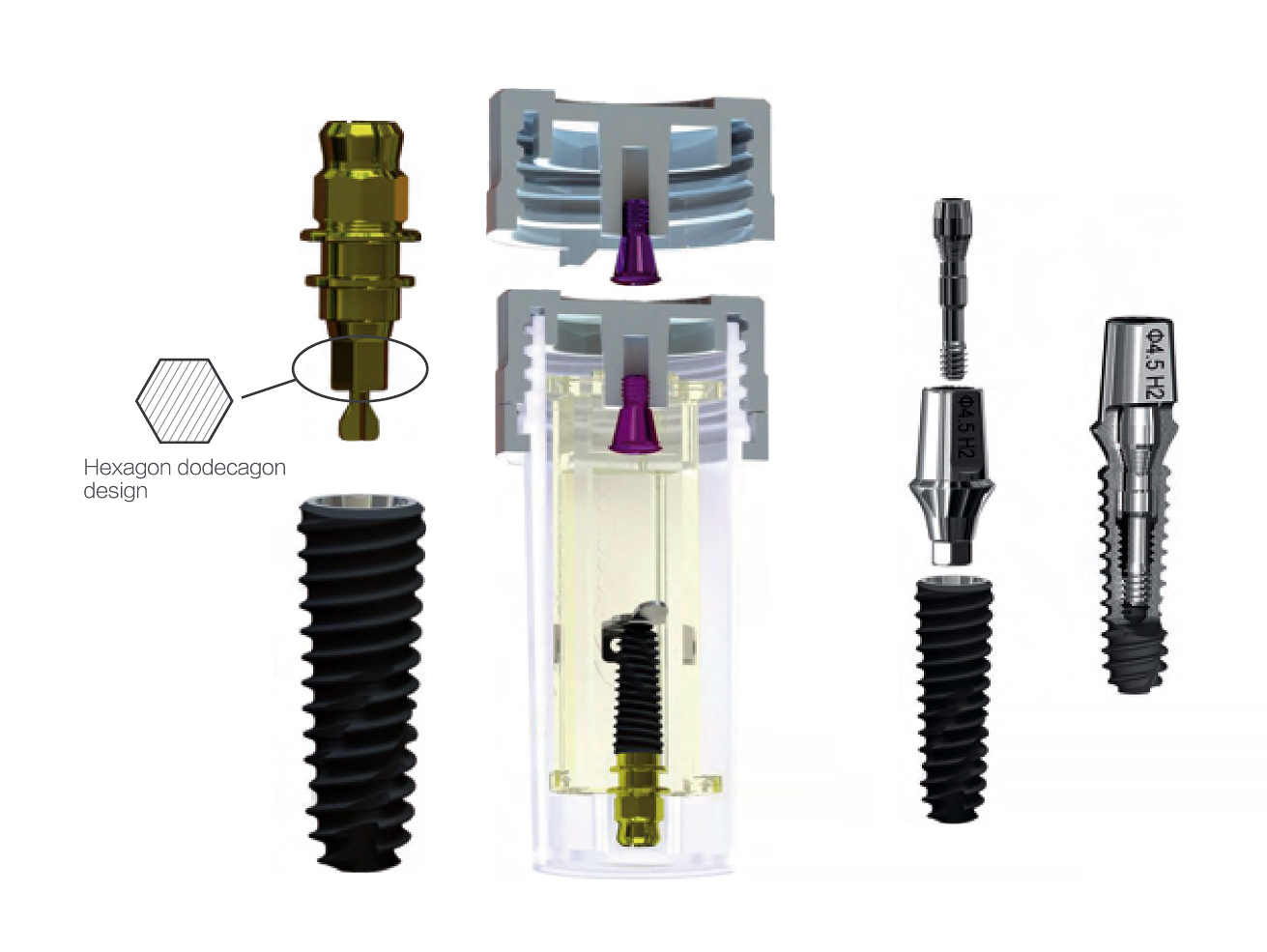

BV packing system

A. patented carrier design

  • When there's a clear click in removing implants with mount driver, it means they're matched well which can also prevent implant dropping.
  • Hexagon dodecagon design can ensure the accuracy of internal hexagon.
  • After implanting, handpiece will automatically remove the carrier, Simplify the surgical procedure;
  • Carrier can be used as bite measuring rod.

B. Double-thread self-tapping dental implants

  • S-L-A surface treatment;
  • Double-thread structure speed up the implantation rate
  • Open spiral cutting edge has strong self-tapping performance;
  • Interior 11° Morse taper, with excellent load distribution and good sealing;
  • Internal hexagon structure has excellent anti-rotation ability.

C. Double deck sterile packing,to avoid contamination during surgery

Left and right thread of screw can lock in two-ways, which can guarantee the long-term stability effectively

D. Sterilizing in combination with implant. Closure cap is provided sterilely

Surgery Procedure

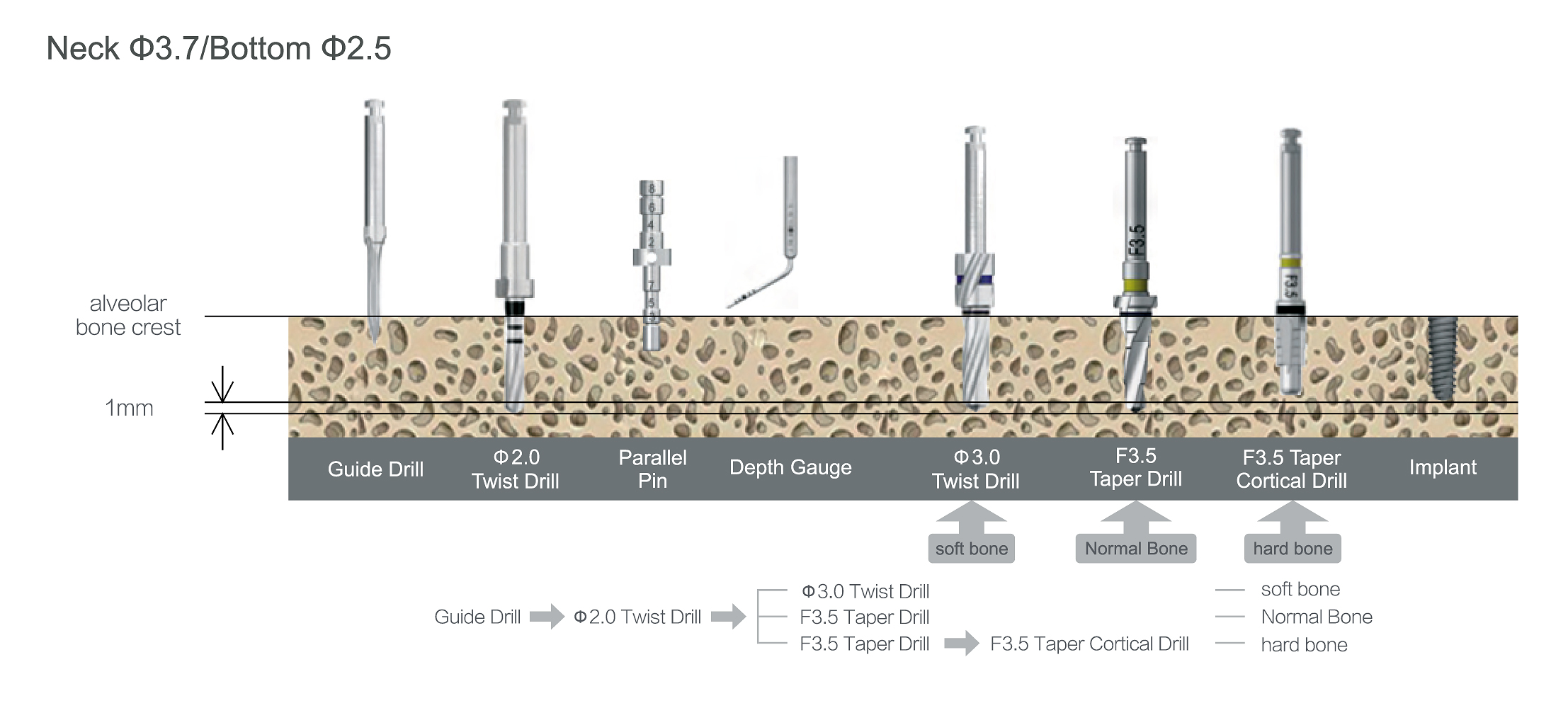

  • Neck Φ 3.7/ Bottom Φ2.5

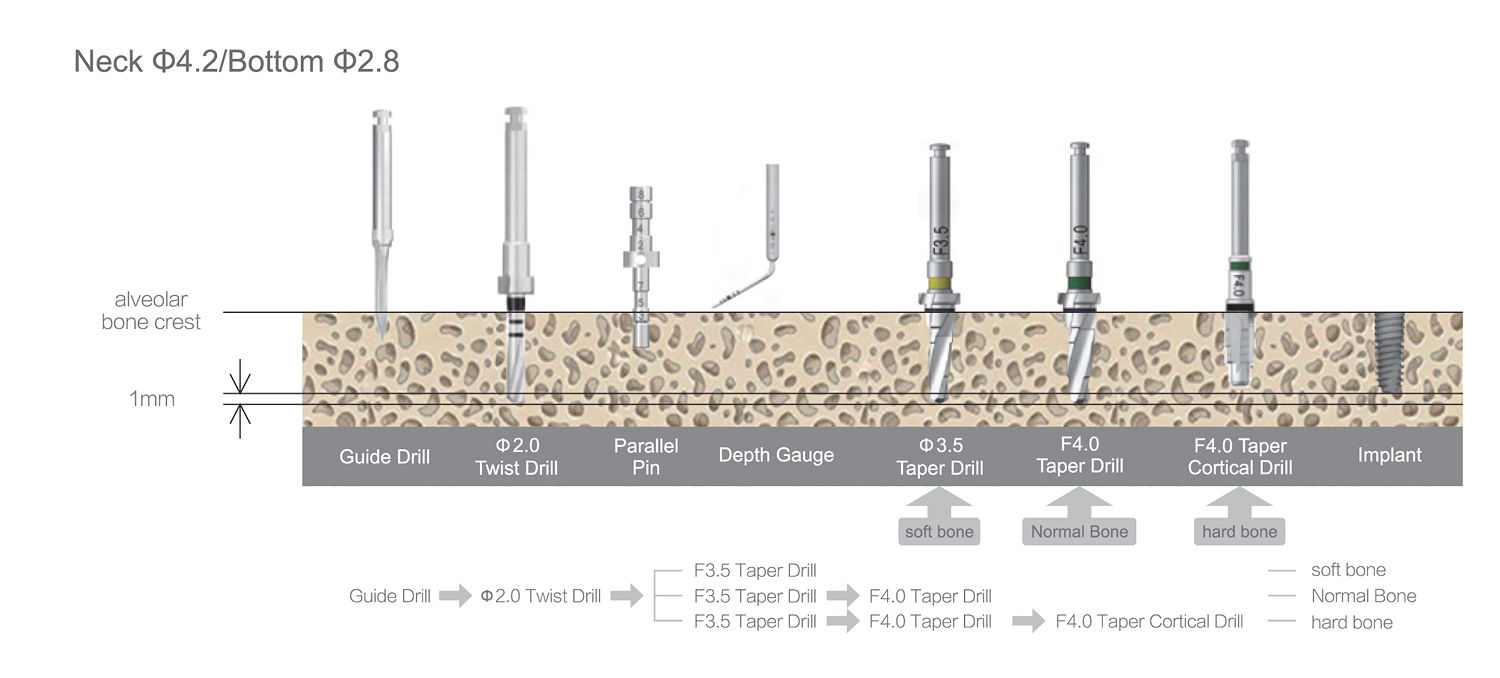

  • Neck Φ 4.2/ Bottom Φ2.8

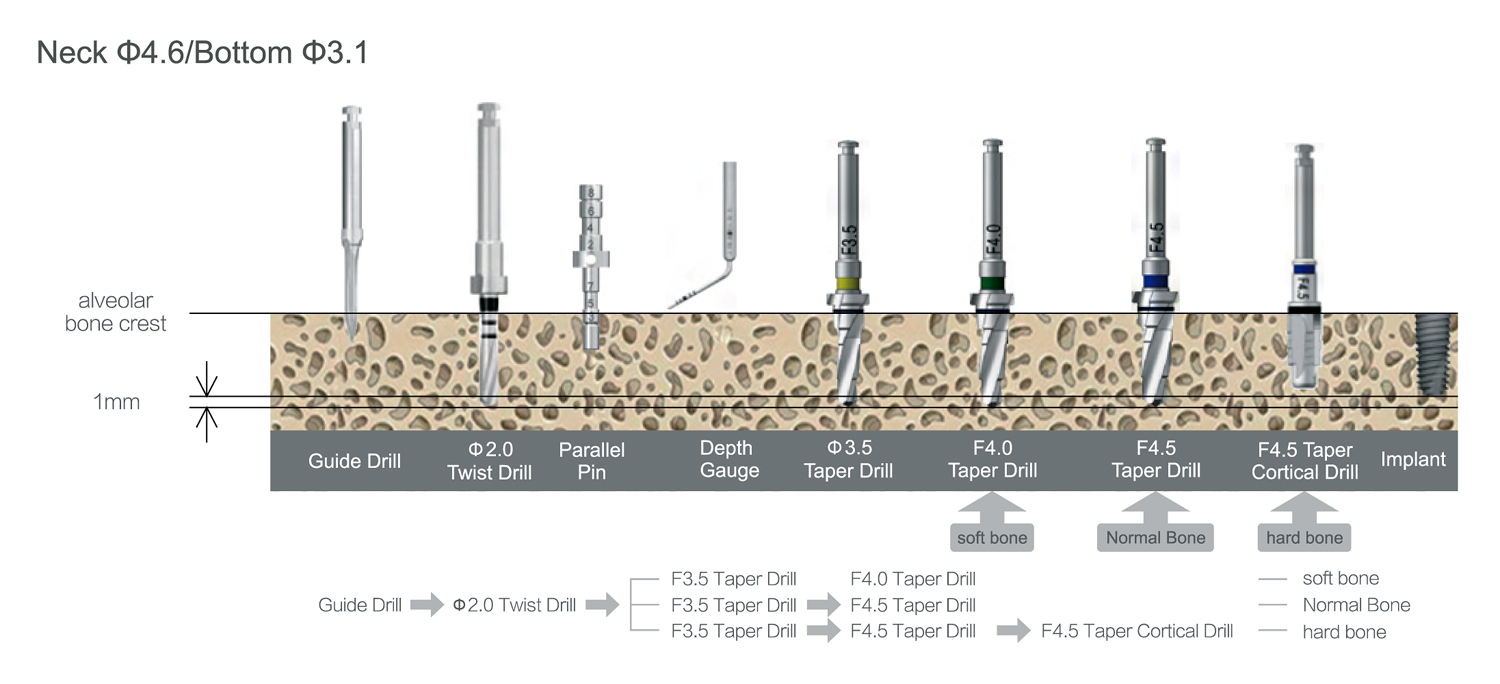

  • Neck Φ 4.6/ Bottom Φ3.1
  • Neck Φ 3.7/ Bottom Φ3.7

Locating: Use guide drill with 1500 rpm

  • Pierce cortex to locate. Ideal rotate speed:1500rpm 2. Orientating: Use (I)2.0 Twist Drill with 1000rpm

Orientating: Use (I)2.0 Twist Drill with 1000rpm

  • Drill to 5mm, feel bone quality, use parallel pin to verify the direction. Sidecut drill can be used for changing direction.
  • Drill until stop ring.
  • Use depth gauge to detect hole's depth and bottom condition.

Reaming: Use 03.0 Twist Drill,Taper Drill, Taper Cortical Drill with 1000rpm

  • Normal Bone (D2-D3): Use taper drill of equal diameter and length as the implant's
  • Soft bone (D4): Use smaller diameter taper drill.
  • Hard Bone (D1): Use taper cortical drill specifically designed.

Implanting: turn clockwise up to a maximum of 25rpm

  • Implant by hand when there's 1 to 2 thread left.
  • Implanting depth should be the same as bone plane or under bone for 0.5-1mm.
  • Torque should be controlled between 25-40Ncm.

Prosthetic Procedure

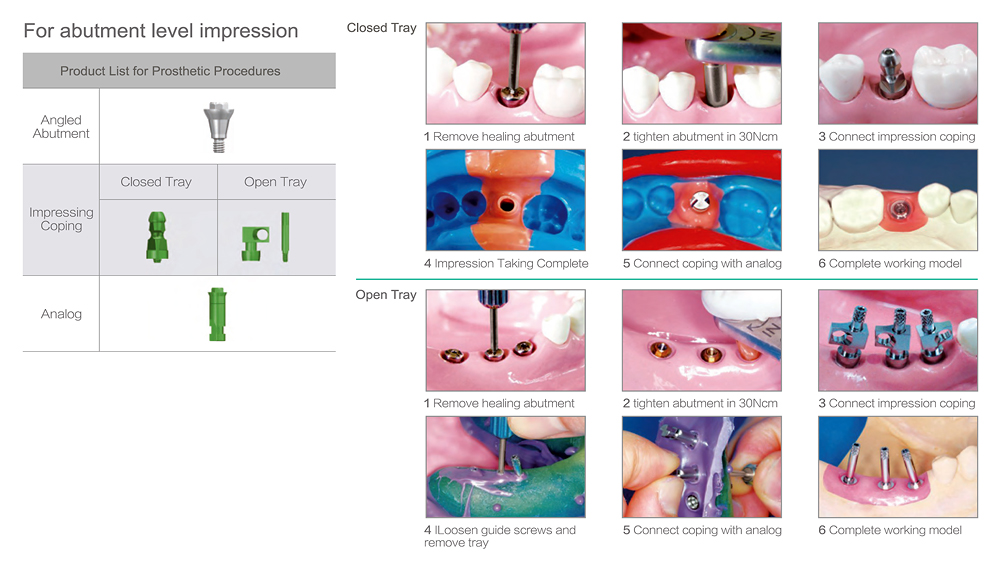

For abutment level impression
