Anesthesia Workstation

Modern respiratory management with complete anesthesia ventilation capabilities.

8 Modes

Includes IPPV, PCV, PCV-VG, SIMV-VC, SIMV-PC, SIMVVG, PS and CPAP

Intelligent FGF Setting

  • Digital Flowmeter with ECO-Optimizer makes fresh gas flow setting easier and more precise. The CO-Optimiser indicates the recommended fresh gas flow setting according to the setting value and the minimum O2 needed of the patient. It enables a safe low flow and reduces agent and gas waste.
  • Driven gas auto-switch to reduce oxygen consumption, also ensure the patient is ventilated uninterruptedly when the Air-driven gas is lost,the ventilator device will automatically switch to O2.

Quantity

Add to cart

Share :

Modern respiratory management with complete anesthesia ventilation capabilities.

8 Modes

Includes IPPV, PCV, PCV-VG, SIMV-VC, SIMV-PC, SIMVVG, PS and CPAP

Intelligent FGF Setting

  • Digital Flowmeter with ECO-Optimizer makes fresh gas flow setting easier and more precise. The CO-Optimiser indicates the recommended fresh gas flow setting according to the setting value and the minimum O2 needed of the patient. It enables a safe low flow and reduces agent and gas waste.
  • Driven gas auto-switch to reduce oxygen consumption, also ensure the patient is ventilated uninterruptedly when the Air-driven gas is lost,the ventilator device will automatically switch to O2.

Convenience

  • Foldable wide stainless worktable with LED light. GCX rails also support the installation of other devices to workstations easily
  • Quantifies the data during anesthesia monitoring and provides operators with accurate and specific management indicators, such as PV tool to measure static compliance,
  • Provides Recruitment Manoeuvres tool to help manage lung ventilation during general anesthesia
  • Provides multiple of cardiopulmonary bypass modes (CBP)

Comprehensive Monitoring

  • 15'' TFT Color LCD Touch Screen.
  • Special monitoring parameters, such as Driving Pressure(DP) and stress index(SI), are provided to guide clinicians in adjusting ventilation parameters.
  • Spirometry loops can be stored for future reference, allowing clinicians the ability to better understand changes in the patient’s response to therapy.
  • Continuous trend information together with time-discrete events are stored and shown in the table or chart.
  • Provides medical gas consumption calculations: including O2, N2O, Agent and provide calculations of CO2 production
  • International standard data protocol support to connect to internet center of hospitals.

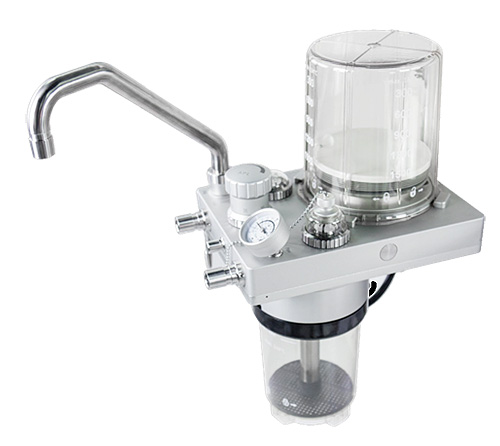

New Generation of Breathing Circuit

  • The characteristic breathing circuit is made of alloy, resistant to corrosion and autoclavable for sterilization.
  • Adjustable angle, easy to install, and many other userfriendly designs make maintenance easier.
  • APL valve includes a quick-release function, the upperpressure limit is accurately adjustable, avoiding repeated operations and improving anesthesia efficiency
  • The Breathing Circuit has a heating system and CO2 bypass function.

Technical Specification

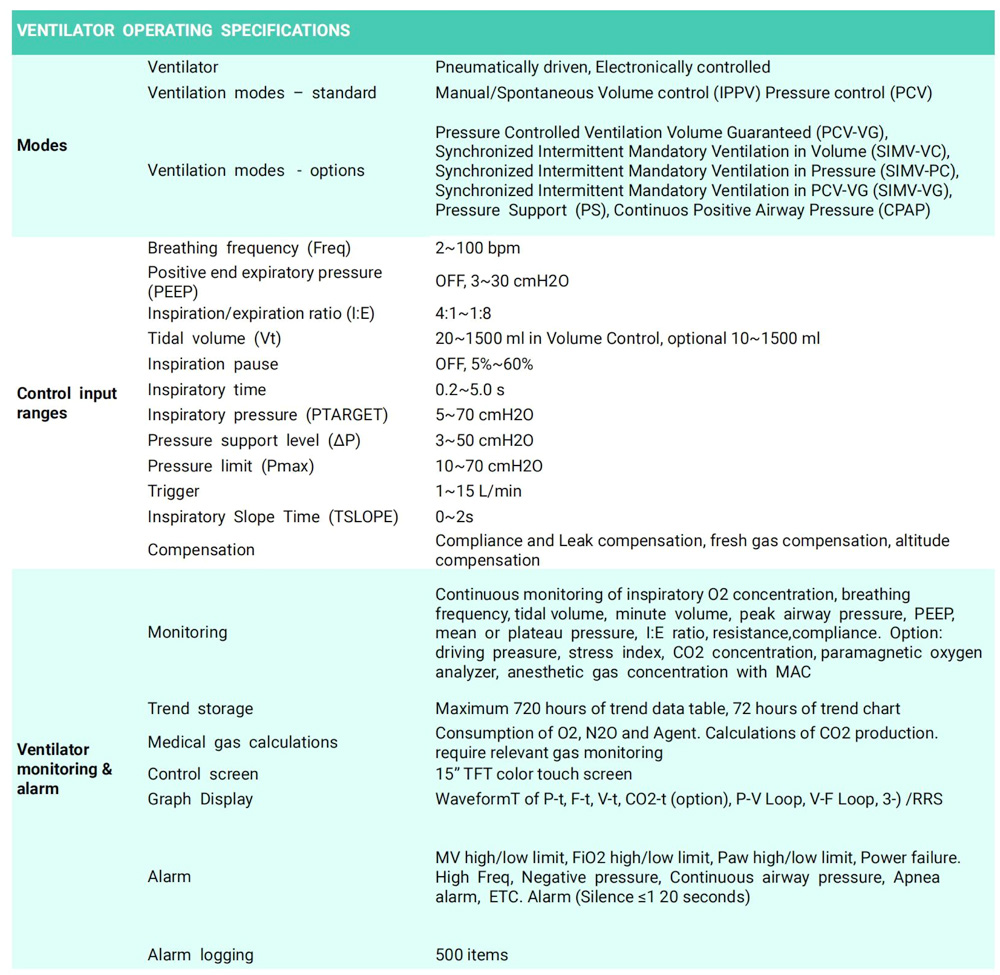

Ventilator Operating Specifications

N/A
N/A
