AneCompact

Features:
AneCompact is a compact veterinary anesthesia machine that is very stable and reliable. It is widely used for pet hospital, veterinary clinic, animal zoo, farm department and so on.

Quantity

Add to cart

Share :

Standard configuration:
Anesthesia machine, one vaporizer, one disposable breath circuit, one reservior bag, one O2 gas source pipeline.


Optional configuration:

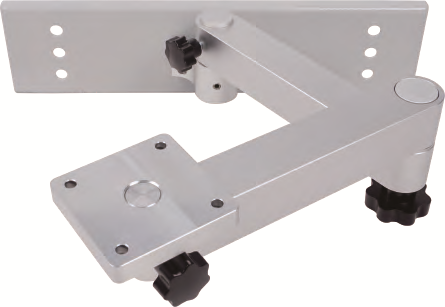

Enflurane, Isoflurane, Halothane or Sevoflurane vaporizer; Trolley, wall-mounted arm,  shelf for animal monitor.

Technical Specification

  • Respiration mode: Manual mode, open mode, closed mode, semi-open and semi-closed mode
  • Gas source: O2, quick inlet port
  • O2 FLUSH: 20L/min~75L /min
  • Flow meter: O2, 0L/min ~10L/min, adjustable easily
  • Airway pressure gauge: -20cmH2O-100cmH2O
  • APL valve (Pop Off valve): adjustable easily, range: 0-60cmH2O Inspiration valve and expiration valve: visible dome- type, ISO standard port, diameter 22mm
  • Soda lime chamber: 2 Liter, easy to change soda lime within one minute
  • Bains connector: open breath system, like Bains circuit and Jackson circuit
  • Anesthesia vaporizer: Enflurane, Isoflurane, Halothane or Sevoflurane vaporizer. Supply selectatec compatible mounting bar, ISO 23mm mounting bar is also compatible.
  • Auxiliary gas source output: supply the gas source to anesthesia ventilator

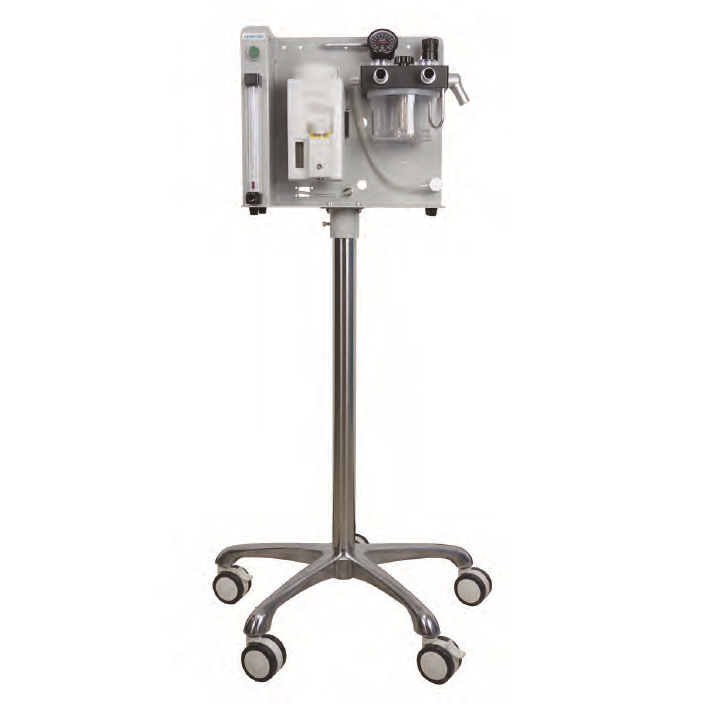

  • Three methods: tabletop, trolley or wall-mounted type (trolley and wall-amounted type is optional)
