AGVE Series

Back To Product

AGVE Series

AGVE-68HAL: Working length is 3.0m, suitable for horses, cattle, whales, dolphins and other animal digestive tract examination, foreign body extraction.
AGVE-68HB: Working length is 1.5m, suitable for large dogs, sheep, pigs and other animal digestive tract examination, foreign body extraction.
AGVE-68HQ / AGVE-68HS: Insertion outer diameter of only 9.2mm/8.0mm, up to 1.5m working length. Suitable for small pet dogs, cats, seals, penguins and other animal digestive tract examination and diagnosis of foreign body extraction.
AVB-68Q: Insertion outer diameter of only 5.8mm, up to 600mm working length. Suitable for small pet dogs, cats, seals, penguins and other animal bronchial and nasopharyngeal examination.

Quantity

Add to cart

Share :

Feature:

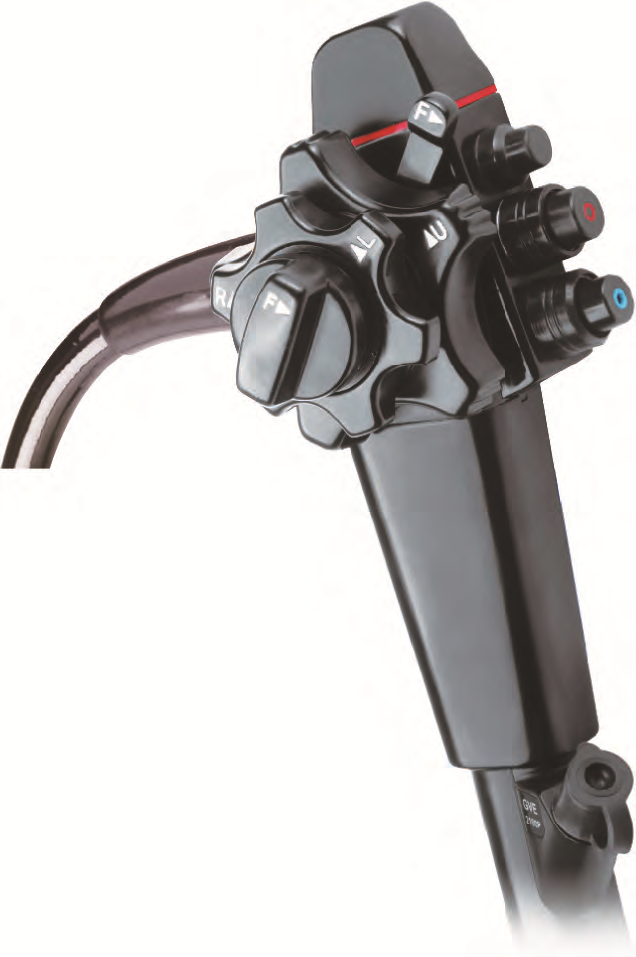

New AGVE series veterinary endoscopes offer advanced CMOS image sensor and compact video center with superior algorithm technology and refined functions to present exceptionally high-resolution images with clear clarity in every detail.
VIS-68 image processor combines processor, display and light source in one unit which is portable and very convenient for different occasions. It is compatible with flexible endoscopes, rigid endoscopes and fiber endoscopes.

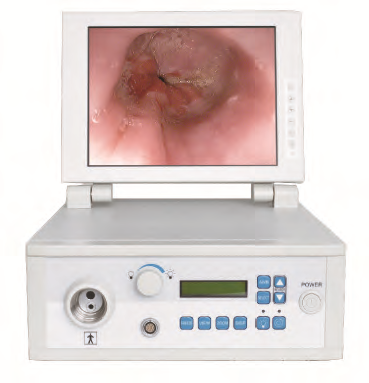

Image Processor
Model: VIS-68
Features:
Compact design with image processor, LED light source and 12-inch monitor in one unit, portable and space saving.

Technical Specification

Endoscope:

Model AGVE-68HAL AGVE-68HB AGVE-68HQ AGVE-68HS AVB-68Q
View of Field 145° 145° 145° 145° 120°
Depth of View 3-100mm 3-100mm 3-100mm 3-100mm 3-50mm
Range of Tip Bending Up/Down: 180°/180°
Left/Right: 160°/160°		 Up/Down: 210°/90°
Left/Right: 100°/100°		 Up/Down: 210°/90°
Left/Right: 100°/100°		 Up/Down: 210°/90°
Left/Right: 100°/100°		 Up: 180°
Down: 130°
Distal End Diameter ø12.9mm ø9.6mm ø9.2mm ø8.0mm ø 5.8mm
Insertion Tube Diameter ø12.9mm ø9.6mm ø9.2mm ø8.0mm ø 5.8mm
Working Channel ø3.7mm ø2.8mm ø2.8mm ø2.2mm ø2.0mm
Working Length  3000mm 1500mm 1500mm 1500mm 600mm



Image Processor:

Model VIS-68
Lamp 40W LED Lamp
Life of lamp 35000 hours
Color Temperature 5300K
Pump Both durable and quiet pump
Function Automatic white balance, Color adjustment, Color saturation
adjustment, Brightness adjustment, File establishment, Image
capturing, Video recording, SD card compatibility
Video Out HDMI*1, DVI*1
Monitor 12-inch Monitor
