AC X-Ray Unit

  • Suitable For Small Spaces
  • Canon Tube head
  • Low Radiation and High Resolution Imaging
  • Core Advantages Of High Frequency Series

Quantity

Add to cart

Share :

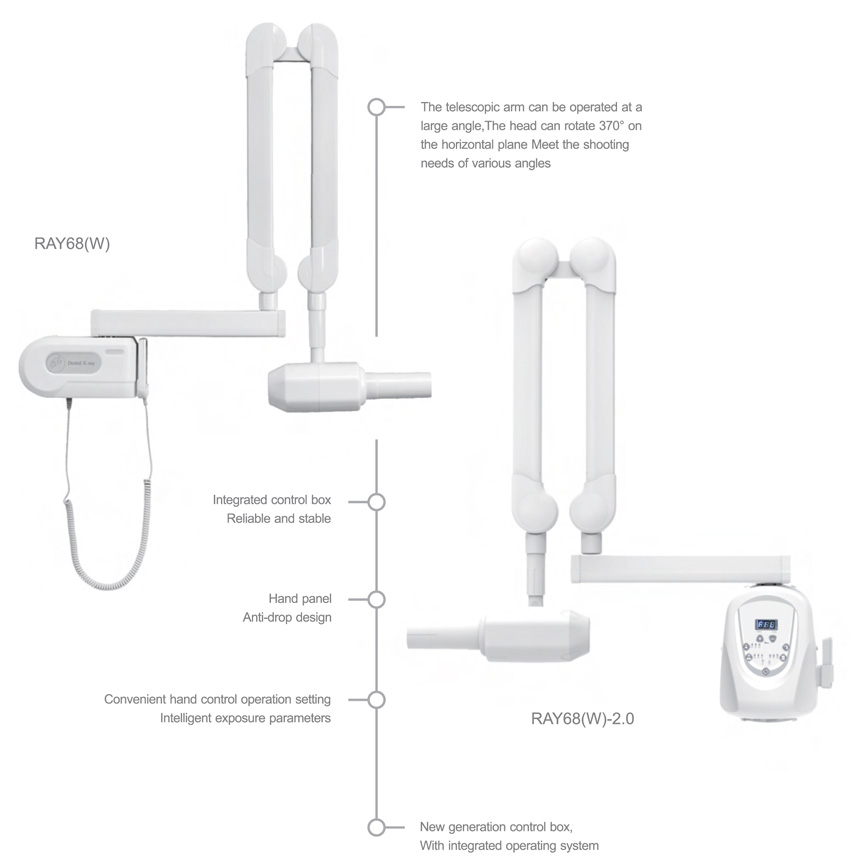

Suitable For Small Spaces

The launch of RAY68(W) and RAY68(W)-2 gives users more choices, abandoning the inherent base, installing them on the wall, matching perfectly with the clinic, and making greater use of space.

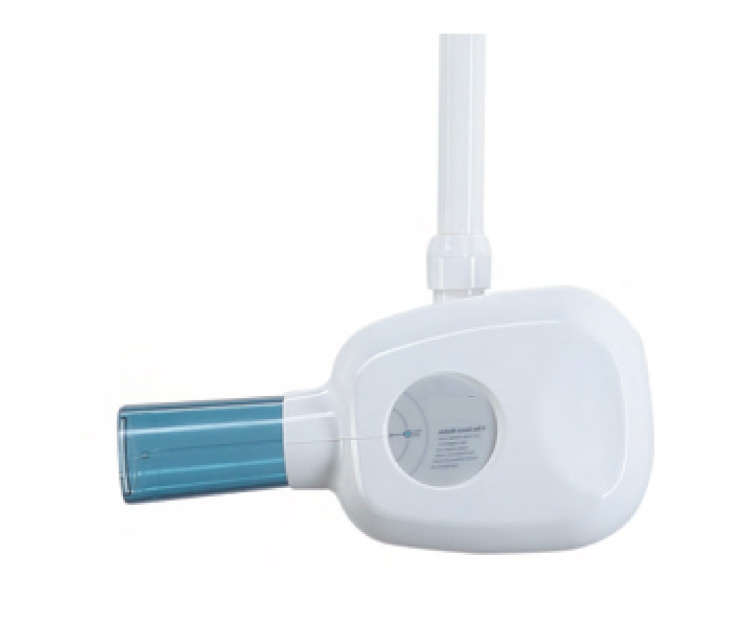

Canon Tube head

The Industrial Frequency Series Adopt The Original Japan-Imported

Precise time control: Microprocessor technology accurate the exposure time to 0.01s and with digital display, it can immediately give the alarm with fault code display function, parameters can be reset and reserved to the digital shooting mode, compatible with any brand of digital sensor.

Low Radiation and High Resolution Imaging

combination of products and technology provides high-quality imaging while reducing radiation, providing a safer experience for doctors and patients.

Core Advantages Of High Frequency Series

  • Novel design, perfectly match with your clinic.
  • Adopting the method of "voltage preset and feedback adjustment", with high control accuracy.
  • Adopting closed-loop control, anode voltage (kV) and anode current (mA) will not be affected by input voltage fluctuations and are relatively stable.
  • High-frequency dental X-ray machines can eliminate soft radiation, operators and patients will suffer less radiation dose.
  • The high frequency machine has stable output spectrum, with less scattered X-rays and clear images.

Microprocessor Control

Easy operation, the exposure time can be set automatically or manually as required

Open Consumables

The industrial frequency series can use all types of dental films on the market

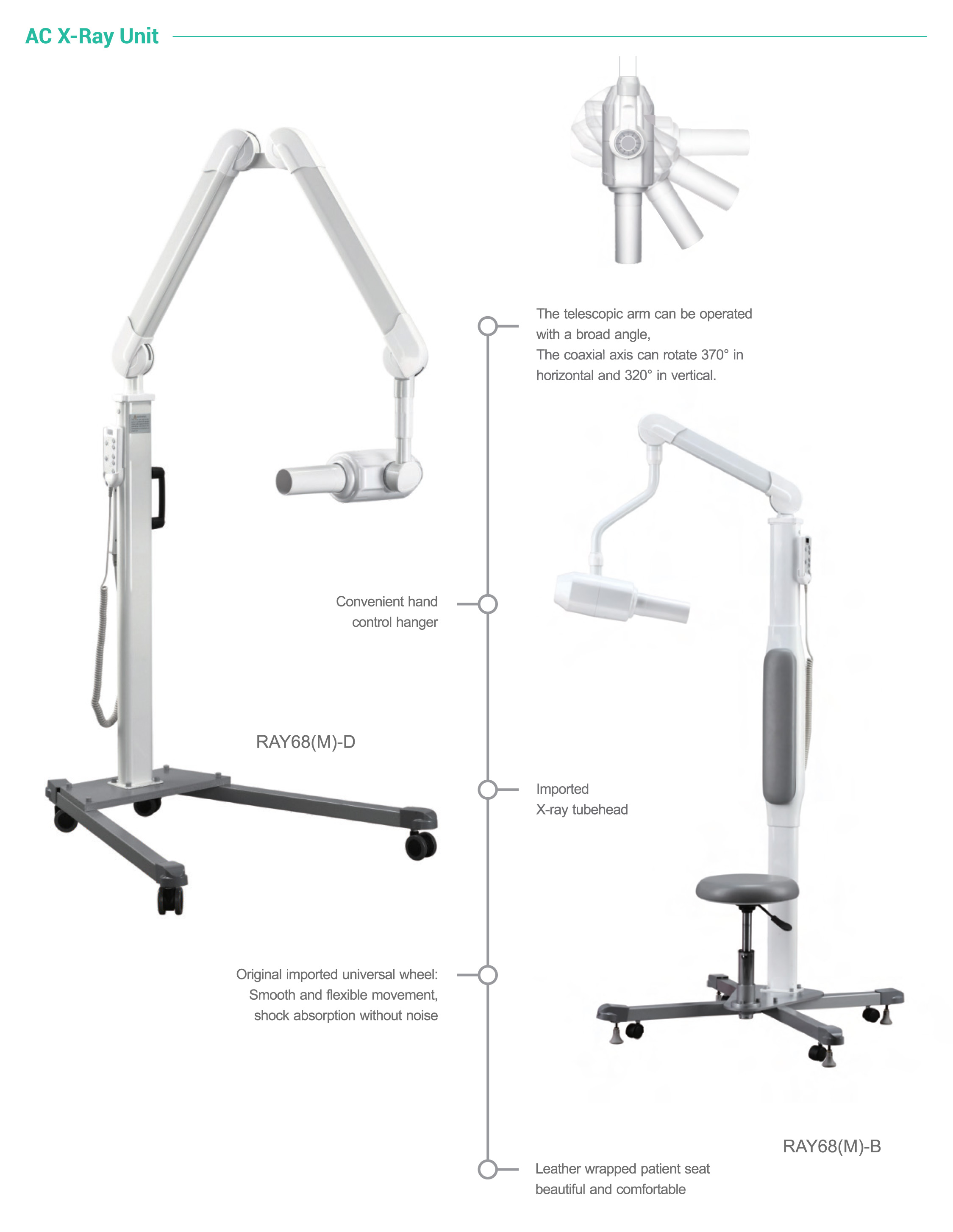

Special-designed Telescopic Arm

It is easy to take images without patient leaving the treatment table.



Technical Specification

Parameters Instruction
Power Voltage: AC 230V Bulb Tube: CANON D-045 Duty Cycle: 1/30
Frequency: 50/60Hz Ray Focal Spot: 0.4mm Half Value Layer: 65Kv
Maximum Power: 1100VA Bulb Tube Voltage: 65Kv ± 10% Inherent Filtration: ≥2.1nnm Al
Electricity: 5A Anode Current: 7mA ± 20% Leakage Radiation: 1 meter ≤ 0.14mGy/h
Fuse: 10A Anode Angle: 12.5° Time Of Exposure: 0.01-2.0s
